2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
Specifications
Supply Ability :
1000 PCS/Week
Standard :
OEM Standard
Brand Name :
AIRSUSTECH
Travel :
224 MM
Model Number :
2B6330D
PCD :
157.5 MM
Number of Ply Bellows :
2
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Cross :
Goodyear 2B12-343
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Condition :
100% New
Quality :
100% Tested
Price :
Negotiable
Manufacturer :
AIRSUSTECH
HS Code :
870880
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Quality Assurance :
One Year
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
2B12-343 578-92-3-309 Goodyear Double Bellow Air Spring G1/4 Air Inlet Offset 73MM
Product Specifications
AIRSUSTECH Model No.: 2B6330D
Cover Plate
Upper Cover Plate Diameter 231 mm
Screw Center Distance of Top Cover Plate 157.5 mm
Air Inlet Offset 73 mm
Lower Cover Plate Diameter 231 mm
Screw Center Distance of Bottom Cover Plate 157.5 mm
Air Inlet Offset 73 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth 2XM8X1.25
Bottom Cover Plate Screw(Nut) Tooth 2XM8X1.25
Gas Hole/Air Inlet/Air Fitting
Air Connection G1/4
Rubber Bellow
Maximum Outer Diameter 325 mm
Compressed Height 81 mm
Extended Height 305 mm
OEM Replacement Compatibility
  • Compatible with Contitech FD 330-22 CI
  • Compatible with Contitech FD 330-22 CI G1/4
  • Compatible with Contitech FD 330-22 CI M8
  • Compatible with Contitech FD 33022 CI
  • Compatible with Firestone W01-M58-6381
  • Compatible with Firestone WO1-M58-6381
  • Compatible with Firestone W01M586381
  • Compatible with Firestone WO1M586381
  • Compatible with Firestone W01 M58 6381
  • Compatible with Firestone WO1 M58 6381
  • Compatible with Goodyear 2B12-343
  • Compatible with Goodyear 2B12343
  • Compatible with Goodyear Bellows No. 578-92-3-309
  • Compatible with Goodyear Bellows No. 578923309
  • Compatible with Goodyear Bellows No. 578 92 3 309
Manufacturing Advantages
  • Complete production capability with specialized testing facilities
  • German import WP GK-200A model mixing machine and rubber mixing line
  • Italian technology and independent design for cord breaking and bead wire production
  • Dedicated air spring forming workshop
  • Specialized air spring vulcanizing workshop
  • Multiple metal processing workshops
  • Advanced air spring crimping workshop
  • First-class production technology and scientific workshop organization
Cross-Compatible Goodyear Double Convoluted Airbag Replacements
2B6-530 2B6-531
2B6-532 2B6-535
2B6-536 2B7-540
2B7-541 2B7-542
2B7-545 2B7-546
2B8-550 2B8-552
2B8-553 2B8-554
2B9-200 2B9-201
2B9-204 2B9-205
2B9-216 2B9-250
2B9-251 2B9-253
2B12-309 2B12-218
2B12-425 2B12-429
2B12-437 2B12-416
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539

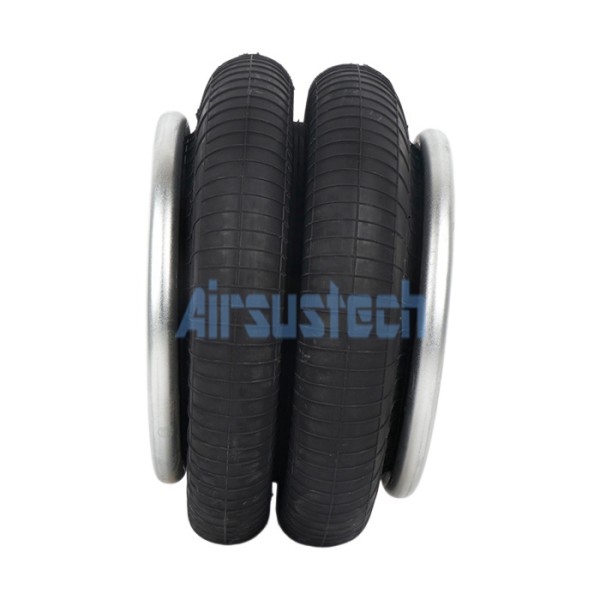

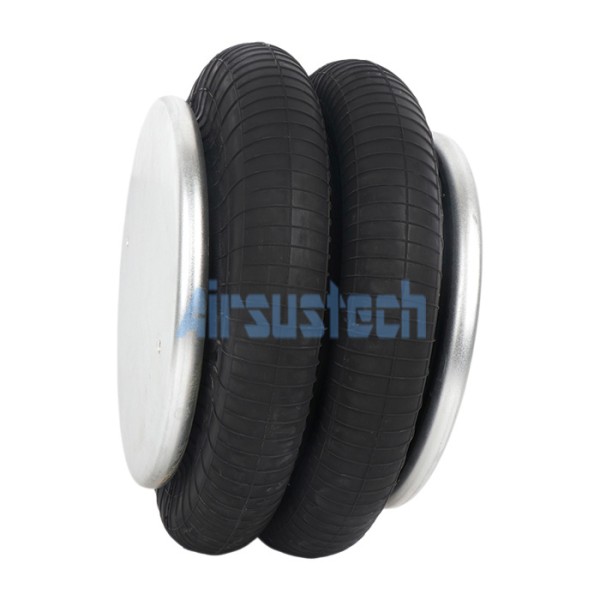

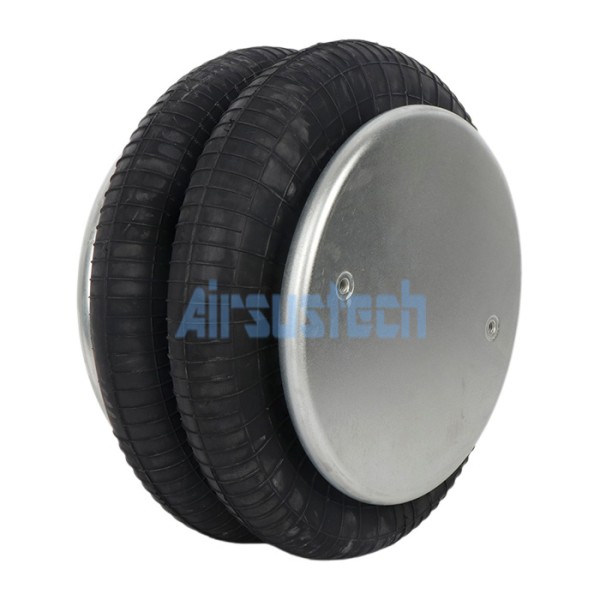

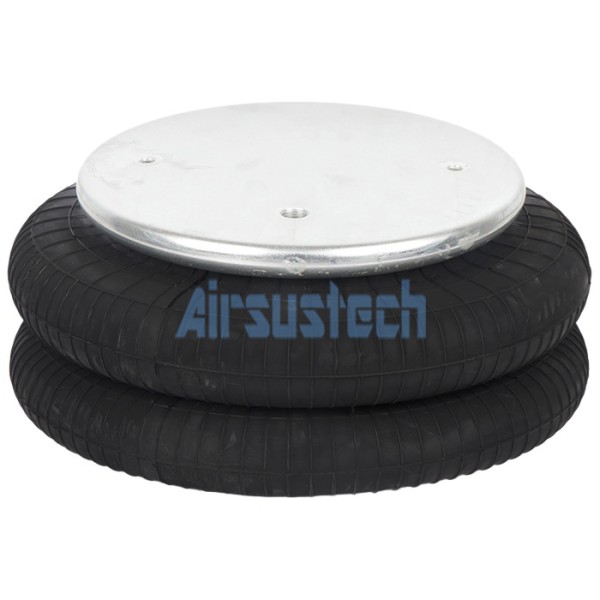

Product Images
