Specifications
Model Number :
2B7530
Part Number :
2B7530
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Compatibility :
Easy to Replace
Price :
Negotiable
Color :
Black
Certification :
ISO/TS16949:2009
Center Distance :
350 MM
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Screws Specification :
18-M10
Manufacturer Warranty :
One Year
Supply Ability :
1000 PCS/Week
Firestone :
W01-M58-7530
Brand Name :
AIRSUSTECH
Manufacturer :
AIRSUSTECH
Place of Origin :
Guangzhou, China
Number of Ply Bellows :
3
Packaging Details :
Strong Carton Box or as Customers Requirement
Maximum External Width :
462 MM
Description
Firestone Style 312 Triple Convoluted Air Bag
Firestone Style 312 Triple Convoluted Air Bag W01-M58-7530 with ribbed neck aluminum construction. This industrial air spring features triple convolutions for superior performance and durability.

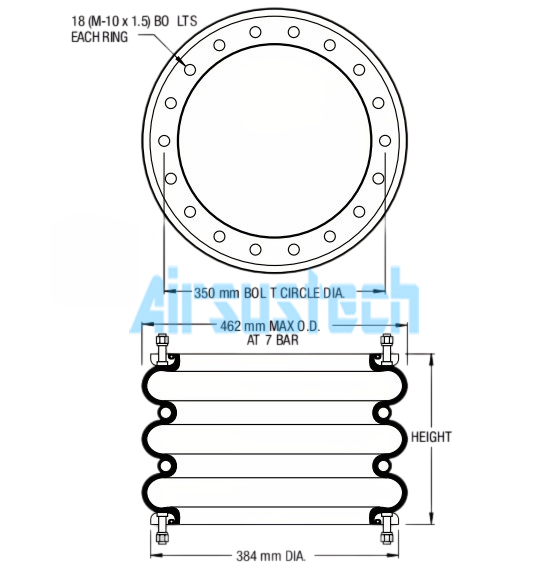

Product Specifications
Rubber Bellow Max. Diameter 462 mm
Minimum Usable Height 114 mm
Maximum Usable Height 457 mm
Center to Center Diameter 350 mm
Flange Ring Diameter 384 mm
Screws Specification 18(M-10X1.5)
Working Stroke 343 mm
Bellows Type Triple Convolutions
Condition 100% New
Flexibility Good
Firestone Style 312 OEM References
Description Assembly Order No.
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

W01-M58-7530, W01M587530, W01 M58 7530

WO1-M58-7530, WO1M587530, WO1 M58 7530
Rolled plate assembly, 1/2 blind nuts, 3/4 NPT

W01-358-7286, W013587286, W01 358 7286

WO1-358-7286, WO13587286, WO1 358 7286
Rubber bellows only

W01-358-7914, W013587914, W01 358 7914

WO1-358-7914, WO13587914, WO1 358 7914
Other OEM References
  • AIRSUSTECH 2B7530 refer Contitech FT 960-34 RS
  • AIRSUSTECH 2B7530 refer Contitech FT 96034 RS
  • AIRSUSTECH 2B7530 refer Contitech FT 960 34 RS
Product Technical Parameters
Dynamic Characteristics at 330 mm Design Height
Gauge Pressure (BAR) Load (kN) Spring Rate (kN/m) Natural Frequency
3 24.56 204 1.44
4 33.97 270 1.4
5 42.68 328 1.38
6 51.9 385 1.36
7 60.4 438 1.34
Force Table
Assembly Height (mm) Volume @ 7 BAR (cu cm) EFF Area @ 7 BAR (cm2) kN Force
@ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
360 38788 772 21.55 29.9 37.73 46.24 54
320 35273 890 25.42 35.13 44.1 53.57 62.3
280 31368 984 28.40 39.00 48.94 59.32 68.90
240 27154 1056 30.78 41.90 52.50 63.61 73.91
200 22558 1123 33.01 44.63 55.85 67.62 78.58
160 17629 1207 35.55 47.98 60.10 72.74 84.47
120 8017 1290 38.09 51.39 64.29 77.75 90.31

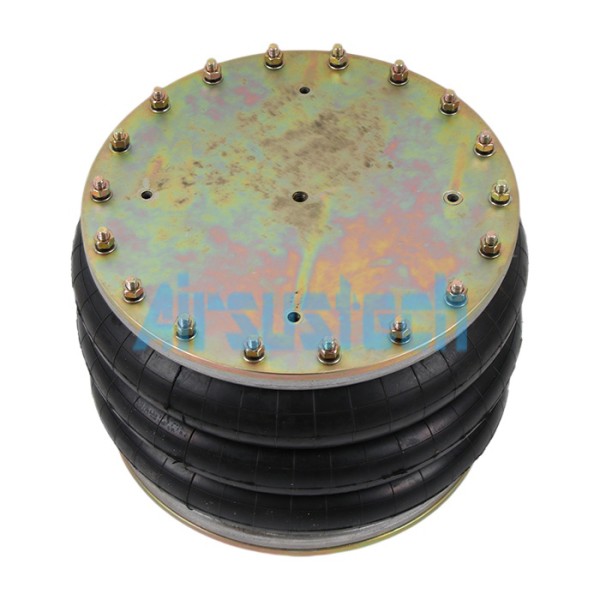

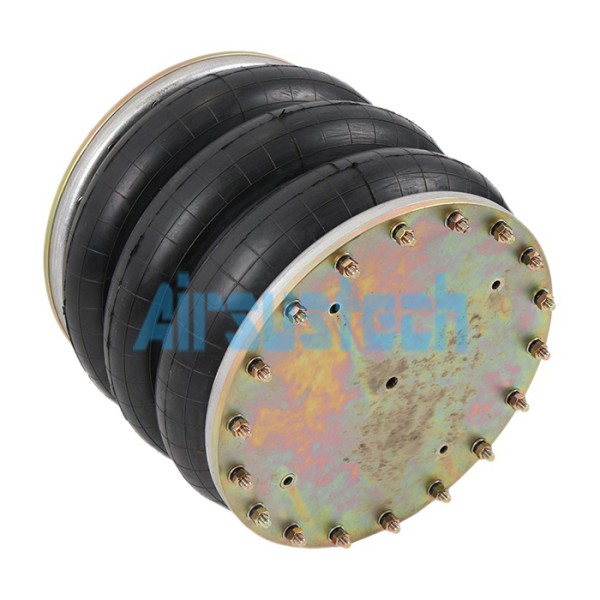

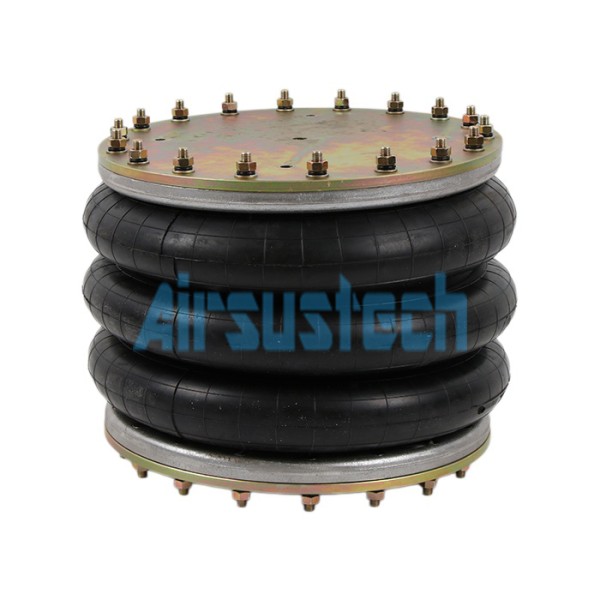

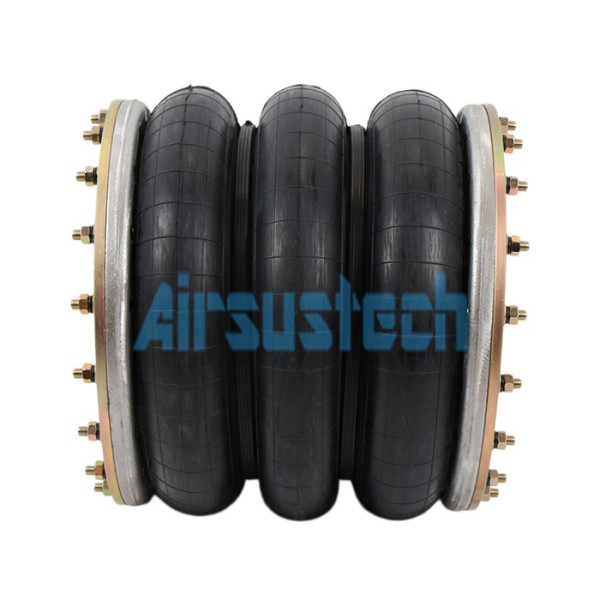

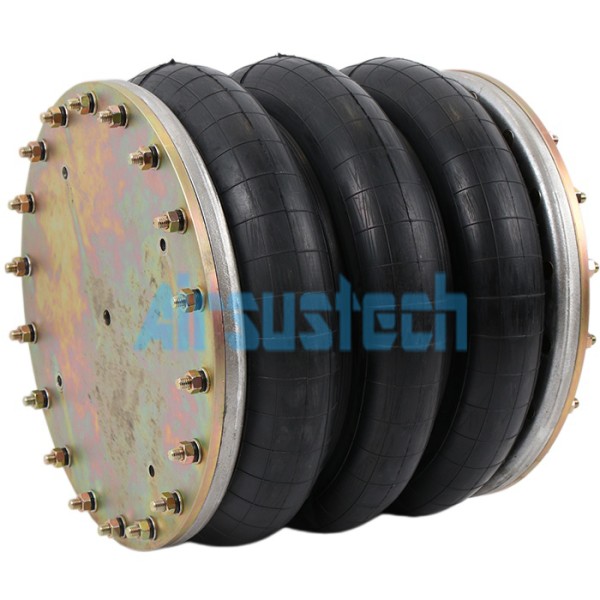

AIRSUSTECH 2B7530 Detailed Pictures
Firestone Style 312 Triple Convoluted Air Bag W01-M58-7530 Ribbed Neck Aluminum Firestone Style 312 Triple Convoluted Air Bag W01-M58-7530 Ribbed Neck Aluminum
