3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B2300
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Bellows Style :
Triple Convoluted
Condition :
100% New
Advantages :
High Performance
Design Height :
192 MM
Number of Ply Bellows :
3
Supplier :
AIRSUSTECH
Air Inlet :
1/2-14NPT
PCD :
44.5 MM
Material :
Rubber
Function :
For Replace / Repair
Description
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag

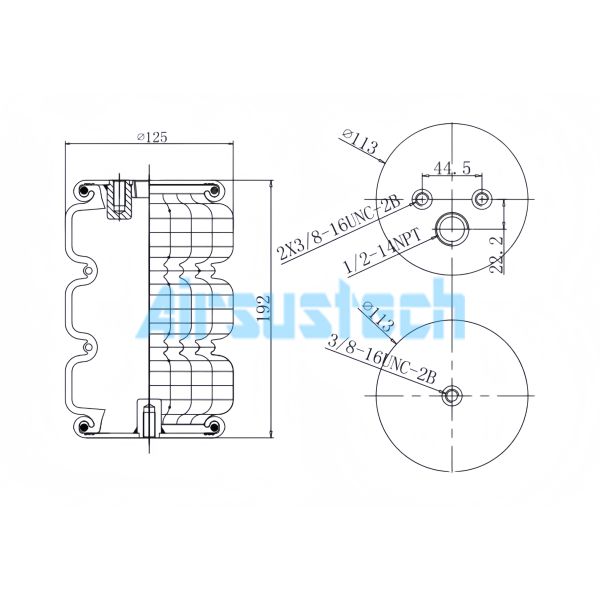

Product Specifications
Top Cover Plate Diameter113 mm
Screw Center Distance (Top)44.5 mm
Distance Between Air Inlet and Holes22.2 mm
Bottom Cover Plate Diameter113 mm
Screw Center Distance (Bottom)44.5 mm
Top Cover Plate Screw (Nut) Tooth2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth2X3/8-16UNC
Air Hole/Air Fitting1/2-14NPT
Rubber Bellow Natural Diameter125 mm
Static Height192 mm
Product Attributes
  • Manufacturer Warranty: ONE year
  • Purpose: Replacement part
  • Brand: AIRSUSTECH
  • Bellows Type: Triple convoluted
  • Condition: 100% brand new
  • Origin: China
  • Type of Goods: Universal air spring
  • Sample: Available
  • Pressure Ability: 0 bar - 8 bar
  • Durability: High
  • Flexibility: Excellent
Compatible Car Models
Compatible Car Model Models Year
ABG (Allg Baumasch Gesellsch) Alexander 126H 1981-1991
Ford - Compact 1630 1996-1998
Ford - Compact 1630 1997-1999
AIRSUSTECH 3B2300 Air Spring Applications
The AIRSUSTECH 3B2300 air spring is engineered for outstanding durability, reliable performance, and cost-effective operation across a wide range of industrial applications. Featuring a precisely designed structure, this air spring is suitable for both actuation systems and vibration isolation equipment, delivering consistent results in demanding working environments.
Built with fabric-reinforced flexible Wingprene or natural rubber bellows and standard fittings, the AIRSUSTECH 3B2300 air spring provides long-term reliability and dependable operation. Its proven construction ensures stable performance while maintaining excellent flexibility under varying operating conditions.
When used as an actuator, the AIRSUSTECH 3B2300 air spring can generate both linear and angular motion, making it a practical solution for various mechanical systems. Compared with conventional cylinders, it offers the additional advantage of vibration isolation while allowing load height adjustment. It can also maintain a uniform vibration isolation effect under different load conditions.
With an excellent stroke-to-compressed-height ratio, the AIRSUSTECH 3B2300 air spring is compatible with multiple operating media, including air, water, nitrogen, and antifreeze. As a vibration isolator, it effectively minimizes the transmission of harmful vibrations, helping to improve equipment stability and operational efficiency.
Product Images
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag 3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
Quality Assurance & Precision Measurement
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
Advanced Manufacturing Capabilities
3B2300 AIRSUSTECH Air Suspension Kit for Japanese Honda Triple Convoluted Airbag
