Specifications
Model Number :
2H7431
Flange Material :
Steel
Packaging Details :
Strong Carton Box or as Customers Requirement
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Bolts Type :
12-M8*1.25
Payment Terms :
T/T, Paypal or Others
Operation :
Gas-filled
Type :
Flange Connection Air Spring
Refer :
Firestone W01-358-7431
Brand Name :
AIRSUSTECH
Max Inflation Pressure :
0.8 MPa
Place of Origin :
Guangzhou, China
Price :
Negotiable
PCD :
ø228.2 MM
Supply Ability :
1000 PCS/Week
Standard :
OEM Standard
Certification :
ISO/TS16949:2009
Description

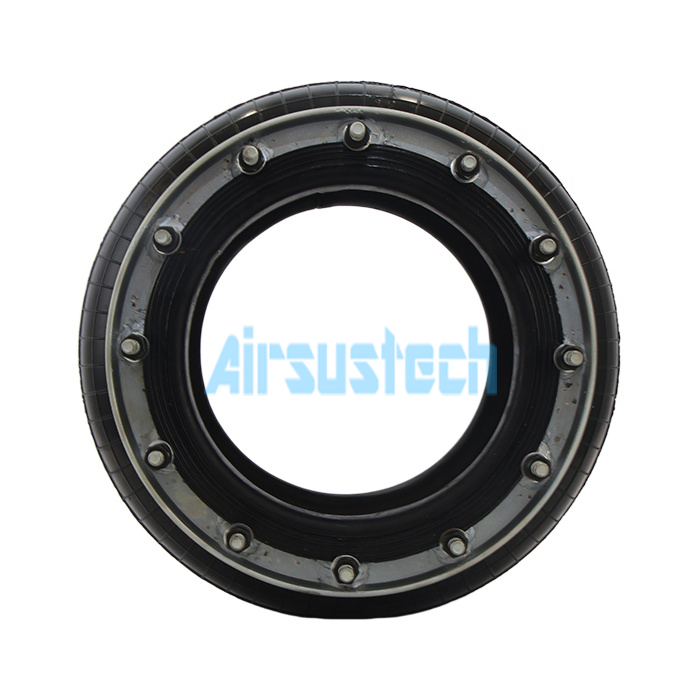

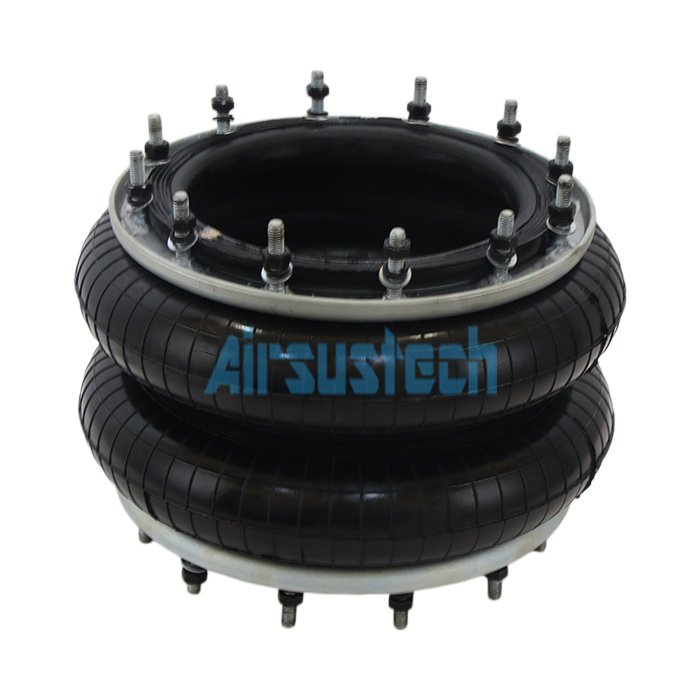

Flange Connection 2H7431 AIRSUSTECH Air Bellow
Firestone W01-358-7431 compatible air spring with 228.5mm PCD flange connection design for industrial and automotive applications.
OEM Cross References
Style 22 Two Ply Bellows - NPT Connections
Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-7180, W013587180, W01 358 7180
Blind nuts, 1/4 NPT, bumper W01-358-7400, W013587400, W01 358 7400
Blind nuts, 3/4 NPT W01-358-7184, W013587184, W01 358 7184
Blind nuts, 3/4 NPT, bumper W01-358-7185, W013587185, W01 358 7185
Countersunk steel bead rings, 15/8 bolts, nuts, washers W01-358-7431, W013587431, W01 358 7431
Rubber bellows only W01-358-0226, W013580226, W01 358 0226
Style 22 Two Ply Bellows - BSP Connections
Description Assembly Order No.
Blind nuts, 1/4 BSP W01-M58-6381, W01M586381, W01 M58 6381
Blind nuts, 1/4 BSP, bumper W01-M58-6382, W01M586382, W01 M58 6382
Blind nuts, 3/4 BSP W01-M58-6200, W01M586200, W01 M58 6200
Blind nuts, 3/4 BSP, bumper W01-M58-6201, W01M586201, W01 M58 6201
Countersunk steel bead rings, 40 mm bolts, nuts, washers W01-M58-7524, W01M587524, W01 M58 7524
Rubber bellows only W01-358-0226, W013580226, W01 358 0226
Key Dimensions
Parameter AIRSUSTECH 2H7431
Type Flange connection air spring
PCD ø228.5 mm
Flange Ring Diameter ø250 mm
Design Height 193 mm
Natural Diameter ø301 mm
Bolts Type 12-M8
Bolts Length 25 mm
Product Advantages
  • GMC Bus Application Reference: Specifically designed for GMC Bus applications, providing a direct replacement solution.
  • Flange Connection Design: Circular mounting arrangement with defined mechanical interface for secure installation.
  • Double-Convolution Construction: Two-convolution bellows design offers superior vertical flexibility and pneumatic support for suspension and vibration isolation.
  • Aftermarket Replacement Option: High-quality alternative to Firestone W01-358-7431 with complete compatibility.
Before ordering, compare the part number, flange dimensions, bolt pattern, working height, diameter, and air connection with your existing unit to confirm compatibility.
