Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Specifications
Full Stroke :
320 MM
Model Number :
LHF320350-3
Nominal Diameter :
ø320 MM
Height :
350 MM
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Quality :
High
Packaging Details :
Strong Carton Box or as Customers Requirement
Type of Goods :
Flange Connection Air Spring
Payment Terms :
T/T, Paypal or Others
PCD :
ø351 MM
Brand Name :
AIRSUSTECH
Convolution :
3
Place of Origin :
Guangzhou, China
Origin :
China
Price :
Negotiable
Flange Material :
Stainless
Supply Ability :
1000 PCS/Week
Refer :
ContiTech FT 960-34 RS
Certification :
ISO/TS16949:2009
Description
Stainless Flange Air Spring ContiTech FT 960-34 RS Replacement

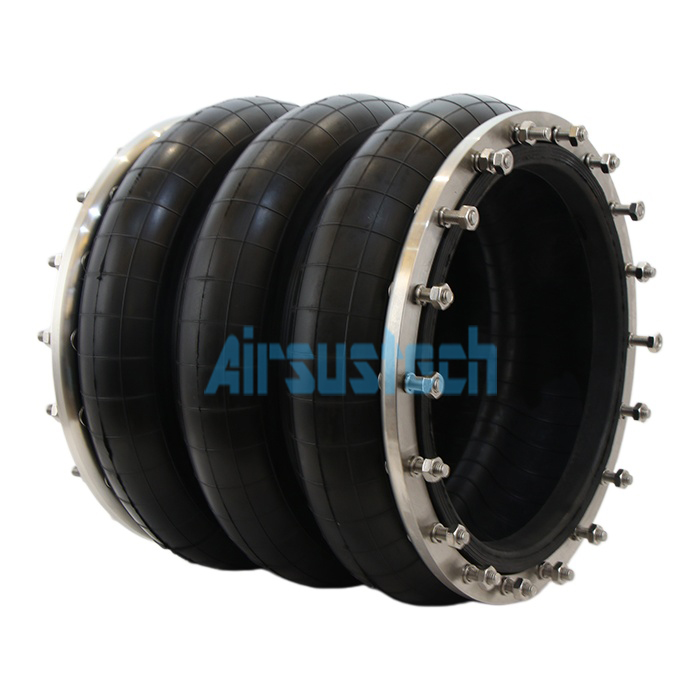

AIRSUSTECH LHF320350-3 is a triple convoluted flange-type air spring designed as a direct replacement for ContiTech FT 960-34 RS. The stainless steel flange construction provides excellent durability and corrosion resistance for industrial equipment where mounting interface reliability and environmental exposure resistance are critical.
Product Specifications Comparison

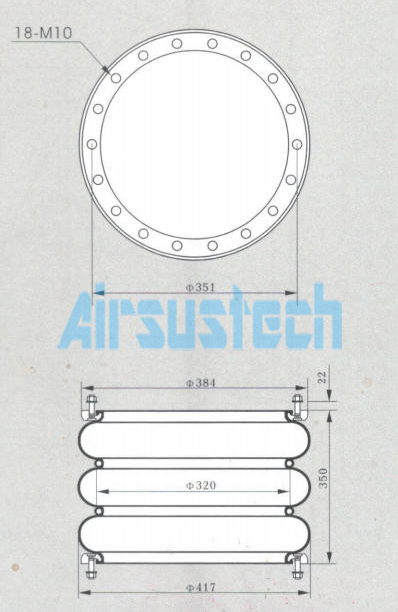

Specification AIRSUSTECH LHF320350-3 ContiTech FT 960-34 RS
Nominal Diameter ø320 mm -
Minimum Height 120 mm 114 mm
Design Height 350 mm -
Maximum Height 440 mm 450 mm
PCD ø351 mm ø350 mm
Flange Ring Diameter ø384 mm ø384 mm
Mounting Bolts 18-M10 18-M10
Maximum Diameter ø417 mm ø462 mm
Installation Space - ø510 mm
Compatibility Verification Guide
Before replacing ContiTech FT 960-34 RS with AIRSUSTECH LHF320350-3, verify these critical compatibility factors:
  • Flange Ring O.D.: 384 mm - Must match available mounting space on existing equipment
  • Mounting Center Distance: 351 mm - Determines bolt position alignment with original installation
  • Mounting Pattern: 18 × M10 configuration - Verify both quantity and thread specifications
  • Design Height: 350 mm - Reference installation height for normal operation
  • Full Stroke: 320 mm - Designed for applications requiring substantial vertical movement
Compatible Part Numbers
ContiTech FT 960-34 RS • ContiTech FT 96034 RS • ContiTech FT 960 34 RS
Firestone W01-358-7926 • Firestone WO1-358-7926 • Firestone W013587926
Firestone WO13587926 • Firestone W01 358 7926 • Firestone WO1 358 7926
AIRSUSTECH 3H Series Flange Connection Air Springs
Model Number 0.7Mpa Max. Diameter Nominal Diameter (mm) Stroke Range Min. Height Stroke Range Max. Height
3H200206220150116236
3H250260270185116299
3H255230280200116264
3H255322290200116400
3H310306330230120354
3H330306355250120354
3H360306380280122360
3H380316405300122370
3H400312430320122360
3H4303704601716122430
3H480312122360
3H520312550400118354
3H580306600500118354
3H630376660530122436
3H680376710580122436
Product Documentation
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3 Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
AIRSUSTECH Air Spring Product Range
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
Manufacturing Capabilities
Stainless Flange Air Spring ContiTech FT 960-34 RS For Vibration Isolation LHF320350-3
