W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
W013588008 Firestone Air Ride Suspension Contitech FT330-29431
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
3B8008
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
231 mm
Air Inlet :
1/4nptf
Top Plate Hole/Stud :
1X3/8-16unc and 3/4-16unf
Bottom Plate Hole/Stud :
2X3/8-16unc
Top Plate Dia :
231 mm
Bottom Plate Dia :
231 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
7.5 Kg
Description

Suspension Air Springs W013588008 Firestone Triple Convoluted Air Bag Contitech FT330-29 431

AIRSUSTECH 3B8008 Cross Other OEM:

AIRSUSTECH Supplier number: 3B8008

Air Spring Supplier:Firestone

Competitor/supplier number:W01-358-8008

Competitor/supplier number:W01 358 8008

Competitor/supplier number:W013588008

Air Spring Supplier: ContiTech
Competitor/supplier number: FT33029431
Competitor/supplier number: FT330-29431
Competitor/supplier number: FT330-29 431

Air spring supplier: Goodyear
Reference number: 578933100
Reference number: 578-93-3-100
Reference number: 578 93 3 100
Competitor/supplier number: 3B12300
Competitor/supplier number: 3B12-300
Competitor/supplier number: 3B12 300

Air Spring Supplier: Triangle
Reference: 6334
Competitor/supplier ID: 4431

Air Spring Supplier: Dayton Parts
Competitor/supplier ID: 3548008

Suspension supplier: EZ Ride
Competitor/supplier ID: 8030155

Suspension supplier: EZ Ride

Suspension supplier: Hendrickson
Competitor/supplier number: NS501690
Firestone air spring style: 38

Suspension supplier: Hendrickson
FSIP OEM: W01-455-8008
FSIP OEM: W01 455 8008
FSIP OEM: W014558008

Suspension supplier: Hendrickson Trailer
Competitor/supplier number: S11637

Suspension supplier: Histeer

Suspension supplier: Langes

Suspension supplier: Leland
Competitor/supplier number: SC2130

Suspended supplier: SAF Netherlands
Competitor/supplier ID: 57008008

AIRSUSTECH 3B8008 Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 1 pcs X Stud - 3/4-16

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

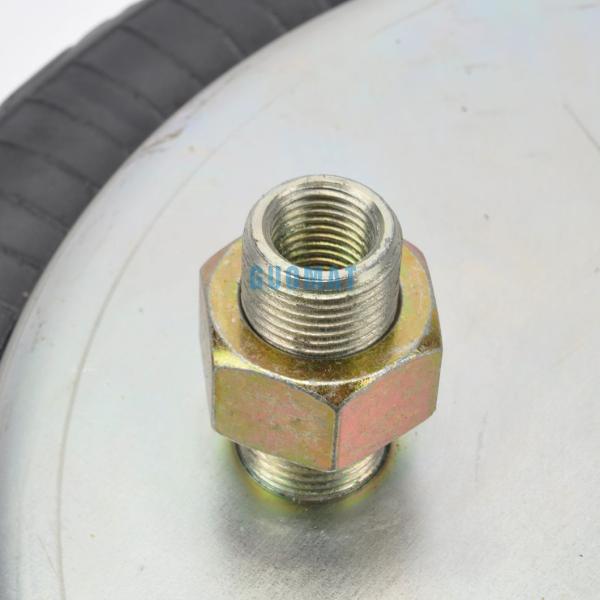

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Roof hole/stud: 2
Floor hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Collapse height: 5.1

Firestone Flex Number Piston Top Plate Bottom Plate Top Plate Dia Bot Plate Dia Collapsed Hght
Flex Number Piston 2345 245
W01-358-8006 38D 3212 3 2 9.00 9.00 4.00
W01-358-8008 38R (38D) 3183 2 2 9.00 9.00 4.55
W01-358-8010 38D 3183 3 2 9.00 9.00 4.20
W01-358-8014 38D 3183 3 2 9.00 9.00 4.50
W01-358-8016 38D 3183 2 2 9.00 9.00 4.55
W01-358-8018 38D 3183 2 2 9.00 9.00 4.55
W01-358-8025 38D 3183 2 2 9.00 9.00 4.55
W01-358-8027 38D 3183 2 2 9.00 9.00 4.55
W01-358-8030 38D 3183 3 2 9.00 9.00 5.10
W01-358-8032 38D 3183 2 2 9.00 9.00 4.55
W01-358-8033 38R (38D) 3292 2 4 9.00 9.00 4.55
W01-358-8038 354D 3183 2 2 9.00 9.00 4.55
W01-358-8039 354D 3183 2 2 9.00 9.00 4.55
W01-358-8042 352D 3303 2 4 10.38 10.38 4.55
W01-358-8043 352D 3303 2 4 9.00 9.00 4.55

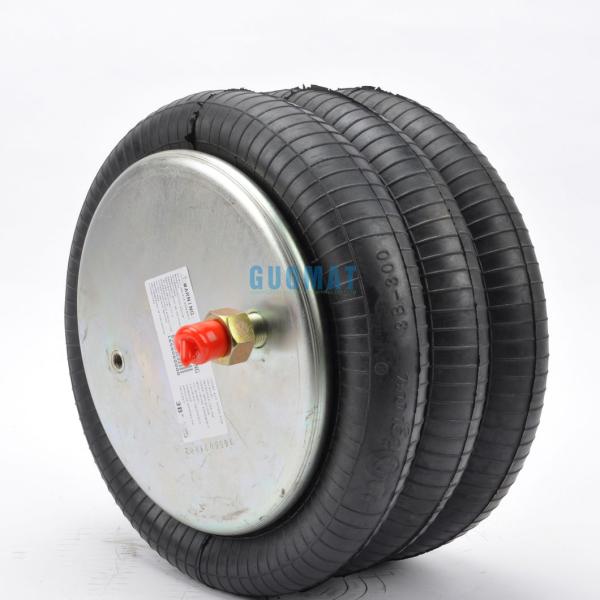

AIRSUSTECH 3B8008 Detail photos 1:

W013588008 Firestone Air Ride Suspension Contitech FT330-29431

AIRSUSTECH 3B8008 Detail photos 1:


W013588008 Firestone Air Ride Suspension Contitech FT330-29431
