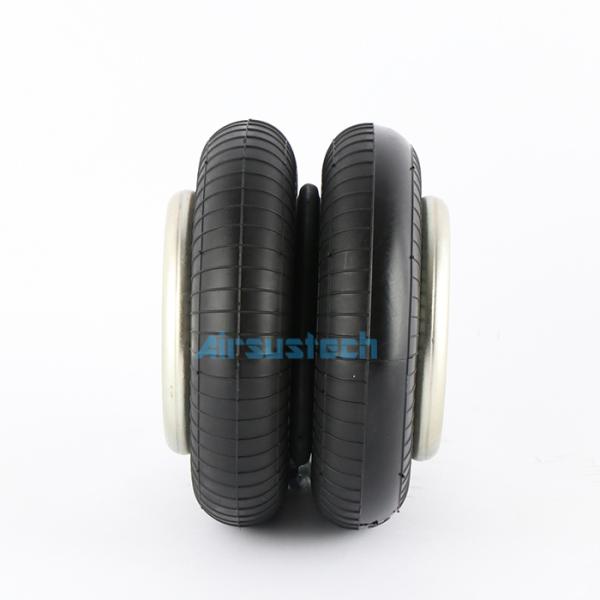

Rubber Double Convoluted Suspension Air Spring Firestone W01-M58-6353 G1/4 Air Fitting

Refer No.

Contitech FD120-17

Contitech FD12017

Contitech FD120 17

Contitech FD 120-17

Contitech FD 120 17

Contitech FD 12017

Firestone: W01-M58-6353

Firestone: W01 M58 6353

Firestone: W01M586353

Firestone: WO1-M58-6353

Specifications and Detailed Technical Parameters: 2B12017

• Nut/blind nut

Top plate screw (nut) teeth: 2×M8×1.25

Screw (nut) teeth of the bottom cover plate: 2×M8×1.25

• Air hole/air inlet/air fittings

Air hole/air inlet: G1/4

• Cover plate

The Diameter Of The Top Plate: 135 mm

The Diameter Of The Bottom Cover: 135mm

• Bell rubber bellows

MAX. Rubber Bellow Diameter: 215mm

Height: 167mm

• Bumper block/bumper block

Without bumper block

• Belt loop/Belt loop/Girdle hoop

With one piece of belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.3kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 190mm, minimum 175mm

Pneumatic application-static characteristic values

Force F[KN]

Air spring production process

1. Rubber mixing

2. Cord calendering.

The calendering process is a process in which the rubber compound is covered on the surface of the textile by a calender, and penetrates into the inside of the fabric gap, so that the rubber and the textile are tightly combined to form a rubber cord.

3. Film Calendering

The film required for the production of air springs is generally calendered with a three-roll calender. The hot-melted rubber is pressed into a sheet of a certain thickness by three rolls, and is cooled by a conveyor belt and rolled into a roll. The width of the film is generally on the roller. The width of the cutting edge is fixed, and the edge is not cut during molding.

4. Traveller

The wire ring used in the air spring, the structure of the air spring is different, and the steel wire used is also different.

5. Rubber cord cutting

Use a cutting machine to cut the plastic cord fabric into a single piece according to a certain angle and width, and then curl the joint into a roll for forming. There are two ways to join the cord fabric, one is the automatic joining of the joining machine, and the other is the manual joining.

6. Air spring forming

The semi-finished process of combining rubber parts and other parts into products according to design requirements on special equipment and forming drums.

7. Air spring vulcanization

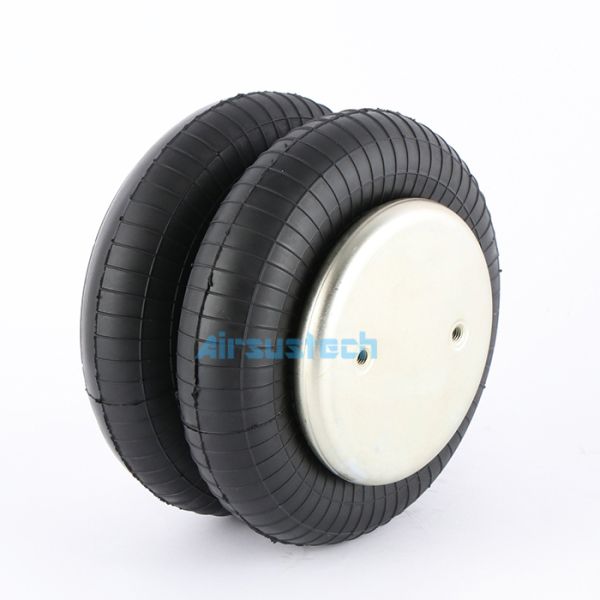

The related picture of 2B12017
