Industrial Air Springs Firestone W01 358 7731 Bellow Style 131 One Convoluted Rubber Air Ride

Refer No.

W013587731,W01-358-7731, W01 358 7731, WO13587731, WO1-358-7731, WO1 358 7731,w013587731,w01-358-7731,w01 358 7731,wo13587731,wo1-358-7731, wo1 358 7731,Wo13587731, Wo1-358-7731, Wo1 358 7731

Bellow No. 131B Style

Specifications and Tecnical Data

Type 1 Bead Plate, (2) 3/8-16 Blind Nuts On 1.75" Centers, 1/4" NPT Centered Port, 115mm Top/bottom plate, Rubber bellows Max. diameter 165 mm, Working stroke from Maximum 115mm to Minimum 50mm, Without bumper block, Without Belt loop/ Girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 1.4kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 115mm, minimum 100mm

Pneumatic application-static characteristic values

Force F[KN]

The advantage of the product:

This air spring is for damping. Its a rubber and fabric bladder that houlds air pressure to support a load and isolate passsagers and cargo from the shovk of motion caused by road irregularities. As the air prressure increases, the air spring can support more load while the spring rate increased. The larger the air spring, the greater the maximum load it can support. Compared to traditional springs, it is more competitive. And its advantages are as follow:

1.The low cost,wide range of specifications.

2.The long service life, no maintenance and lubriction, without the need for internal control rod or piston.

3.No friction effect, soft medium.

Application:

1. Mold Separator Inflatable Cushion

2. Roller Airbag

3. Airbag 3D Vibrating Table Pneumatic Tire

4. Rubber Vibrating Table Airbag

5. Press

6. air compressor

7. centrifuge

8. vibration conveyor

9. control hammer

10. casting machinery and textile machinery

11. optical and laser instruments

12. integrated circuits

13. ultra-precision machine tools

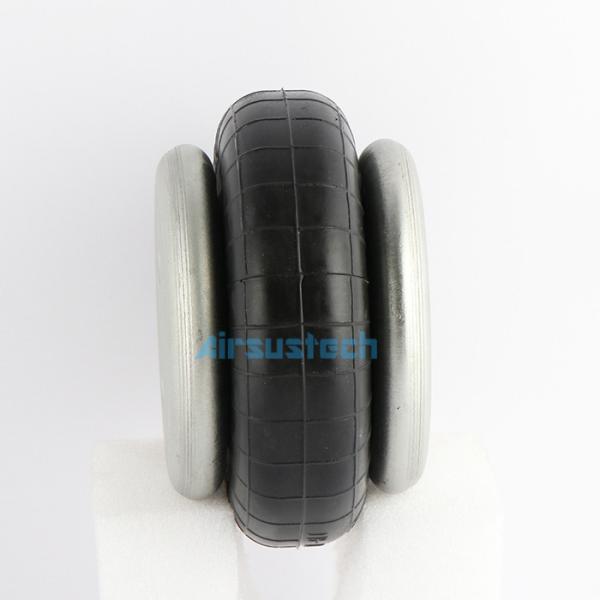

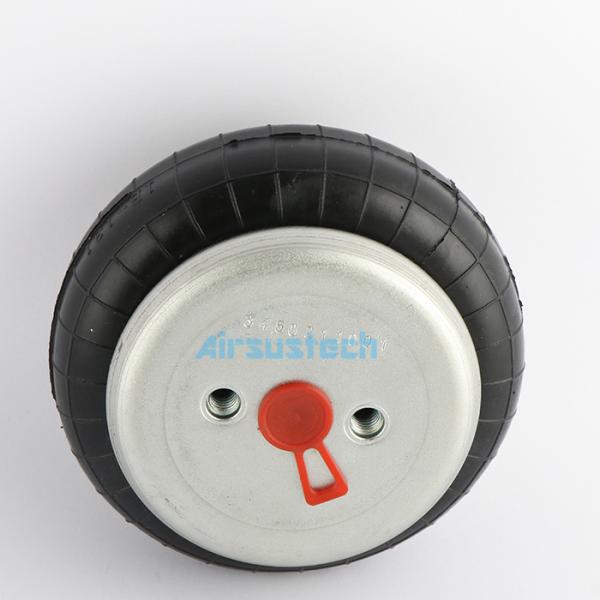

The picture of air spring:
