Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7545
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong, China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Iron
Warranty :
12 Months
Packing :
Neutral Box Or As Customers' Request
OEM No. :
Firstone W01-358-7545
Condition :
100% New
Type :
Industrial Air Spring
Position :
Front Or Rear
Sample :
Available
Description

Double Bellow Firestone Suspension W01-358-7545 Rubber Convoluted Air Spring

OEM NO.

Firestone:W01-358-7545

Firestone:W01 358 7545

Firestone:W013587545

Firestone:WO1-358-7545

Firestone:WO1 358 7545

Firestone:WO13587545

Contitech:FD331-26 514

Contitech:FD331 26 514

Goodyear:2B12-345

Goodyear:2B12 345

Goodyear:578-92-3-315

Goodyear:578 92 3 315

Goodyear:578923315

Triangle:6375

Triangle:4514

Hendrickson Aux. 001796

(Paralift Ultra/High Lift) - Lift bag

Watson&Chalin : AS-0087-1F

Watson&Chalin : AS-0109

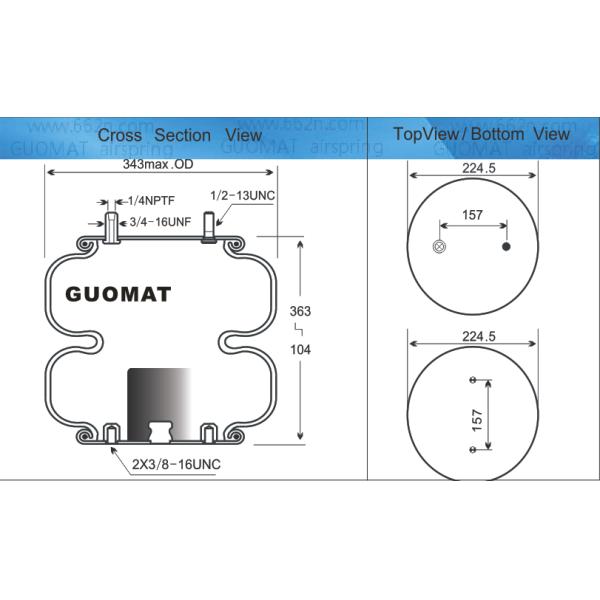

2B7545 specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 1/2-13UNC; 3/4-16UNC

Top plate screw center distance : 157mm

2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

Bottom plate screw center distance : 157 mm
2. Air hole/air inlet/air fitting air hole/air inlet: 1/4NPTF

The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

4. Rubber bellows Max. diameter: 343mm

5. Min height: 104mm

Max. height: 363mm

6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 5.1kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 240mm, minimum 220mm

Pressure p[bar] 3 4 5 6 7 8 Vol. V[l]
Force(Load) [KN] 10.0 13.3 16.7 20.6 24.1 27.6 12.0
Spring rate [N/cm] 1590 1900 2210 2520 2830 3140
Natural frequency [Hz] 2.0 1.9 1.8 1.8 1.7 1.7

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 300 9.8 13.1 16.7 20.3 24.0 27.7 14.0
260 12.5 16.7 21.0 25.4 29.9 34.5 13.0
220 14.6 19.4 24.4 29.4 34.5 39.6 11.6
180 16.2 21.6 27.0 32.5 38.2 43.8 9.9
140 17.6 23.4 29.3 35.2 41.3 47.2 7.8
100 18.3 24.4 30.3 36.3 42.4 48.5 5.5

Other Airride Air Springs we could provide

Single Convolutions
Firestone : W01 358 7731 Firestone : W01 M58 6165
Firestone : W01 358 7564 Firestone : W01 358 7598
Firestone : W01 M58 6374 FIRESTONE FLEX 115
FIRESTONE W01 358 0118 Firestone : W01 358 7008
Firestone: W01 358 7009 Firestone. W01 358 7103
Firestone. W01 358 7112
Double Convolutions
FIRESTONE W01 095 0111 FIRESTONE W01 358 7325
FIRESTONE W01 358 7327 Firestone : W01 358 7325
Firestone : W01 M58 6353 FIRESTONE W01 M58 7894
Firestone : W01 358 6926 Firestone : W01 358 6910
Firestone : W01 358 6902 Firestone : W01 358 6927
Firestone : W01 358 6943 Firestone : W01 358 6946
Firestone : W01 358 6945 Firestone : W01 M58 7679/20C2
Firestone:W01 358 6948 FIRESTONE W01 358 6951
FIRESTONE W01 358 6952 Firestone:W01 M58 6944/20-2
Firestone:W01 M58 6891/20-2 FirestoneW01 358 7180/22
FIRESTONE W01 358 0226 FIRESTONE 22T3 095 .0257
FIRESTONE fole 210 095.008 Fireston:W01 358 7400/22
Firestone:W01 358 7405 Firestone:W01 358 7406
Firestone:W01 358 7424 Firestone:W01 358 7545
Firestone:W01 358 7550 Firestone:W01 358 7555
Firestone : W01 358 7136 FIRESTONE W01 358 7146
FIRESTONE W01 358 7143 Firestone:W01 358 7557
Firestone:W01 358 7781 Firestone:W01 095 0289
Firestone. W01 095 0508 Firestone.W01 358 9529
Firestone Style 21D-2
Triple Convolutions
Firestone:W01 358 8008 Firestone:W01 358 8010
Firestone:W01 358 8027/38 Firestone:W01 358 8029
Firestone:W01 358 8030/38 FIRESTONE W01 358 8006
FIRESTONE FLEX 38R/38D FIRESTONE W01 358 7808
FIRESTONE W01 358 7798 FIRESTONE FLEX 313D
FIRESTONE FLEX 313D FIRESTONE W01 358 7800
FIRESTONE W01 358 7818 FIRESTONE FLEX 313D

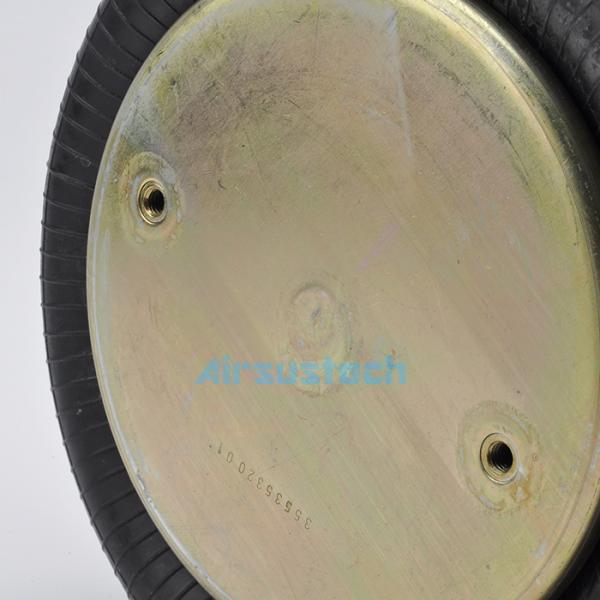

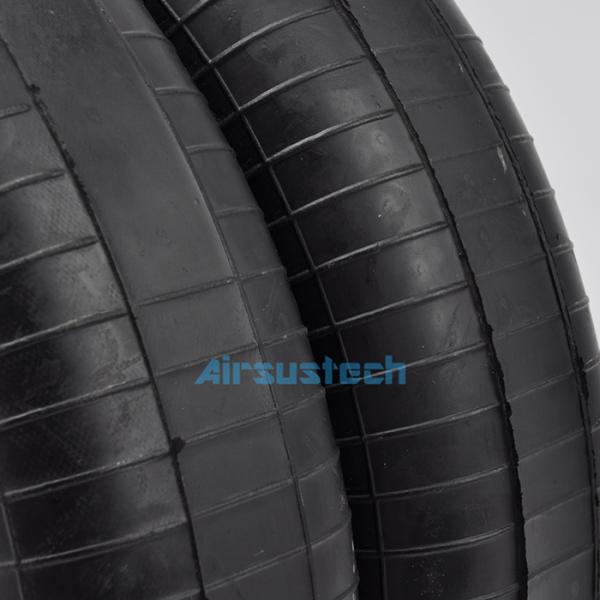

The related picture of 2B7545 air spring
