130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment
Specifications
Brand Name :
AIRSUSTECH
Model Number :
130118J-2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Certificate :
ISO/TS16949:2009
Warranty :
one year
Number of convolutions :
One
Packing :
Neutral Box Or As Customers' Request
Sample :
Available
Type :
Convoluted Air Spring
Cross Reference :
130118J-2
Description

130118J-2 Rc1/4 Double Convoluted Air Spring Bag For Environmental Protection Equipment

Cross Reference

130118J-2

130118J2

130118J 2

Specifications and Detailed Technical Parameters

1. Top plate

2pcs × M10× 1.5 Blind Nuts, the screw center distance is 44.5mm

2. Bottom plate

2pcs × M10 ×1.5 Blind Nuts, the screw center distance is44.5mm

3. Air Inlet/Air fittings/ Air hole

Rc1/4, Centered

4. Height: 111mm

Working Stroke: 65mm-132mm

5. Rubber Bellow diameter: 132mm

6. Cover plate diameter

115mm Top Cover Plate

115mm Bottom Plate

7. Without Rubber Bumper

8. One piece of Girdle hoop

Other type of double convoluted air spring we could offer

Model

Product details

168156J-2

163mm height

75-170mm working stroke

Rc1/4 centered air inlet/air hole

2XM10X1.5 mounting threads on top plate

70mm distance between the two mounting threads on top plate

2XM10X1.5 mounting threads on bottom plate

70mm distance between the two mounting threads on bottom plate

135mm top cover plate diameter

135mm bottom cover plate diameter

Without bumper

1pcs girdle hoop/girdle ring

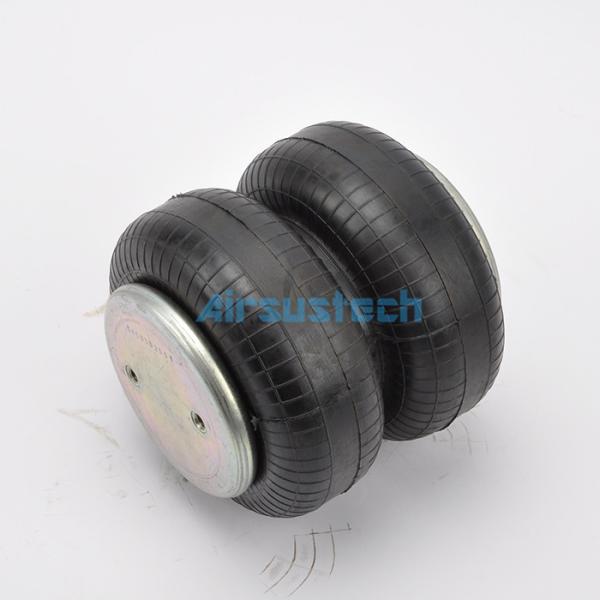

Product Photo
