Contitech FD 614-26 DS G 1/2 68046 Double Convolution Air Actuator Norgren M/31142 Air Bellow

Specifications and Technical Parameters

1. Top plate bolts: 4pcsM10

2. The top plate screw center distance: 282.5mm

3. Bottom plate bolts: 4pcsM10

4. The bottom plate screw center distance: 282.5mm

5. Air inlet/air fittings: G1/2

6. Height: 75mm-340mm

7. Top plate diameter: 310mm

8. Bottom plate diameter: 310mm

9. Max. OD: 400mm

Min. pressure 0 bar
Return force to min height ≤ 280 N
Overall weight 8.3 kg

Vibration isolation – dynamic characteristic values
Design height H: recommended 250mm, minimum 230mm

Pneumatic application – static characteristic values

Force F [kN]

Cross Reference

CONTITECH FD 614-26 DS G 1/2 air spring

Contitech FD614-26DSG1/2 air spring assembly

Contitech FD 614-26 DS air springs

Contitech FD614-26DS air bag

Contitech FD 614 26 DS air bags

Contitech 68046 air actuator

FIRESTONE W01-R58-4064 rubber bellow

FIRESTONE W01 R58 4064 air spring complete

FIRESTONE W01R584064 air shock

FIRESTONE WO1-R58-4064 air suspension spring

FIRESTONE WO1 R58 4064 air suspension springs

FIRESTONE WO1R584064 air suspension bag

SMB/FRUEHAUF
GIGANT 881205 air suspension bags

WEWELER USN 510010DX air balloon

DUNLOP SP 257 pneumatic cylinder

TROUILLET

SAMRO

DUNLOP PNEURIDE 14" 1/2 x 2

DUNLOP SPRINGRIDE SP1556

NORGREN M/31142 air bellow

NORGREN M31142 rubber bags

NORGREN M 31142 air pillow

PARKER 9109061 air bellow

Feature

low installation height
Compared with traditional cylinders, pneumatic actuators do not contain a piston rod, so the design height can be greatly reduced. This allows for a compact design.

angular motion
Depending on the type, pneumatic actuators are available for tilt angles up to 30°, which enables designers to simplify articulated designs.

low purchase price
The purchase cost is much lower than that of traditional cylinders. Operating costs are also reduced due to their long service life and maintenance-free

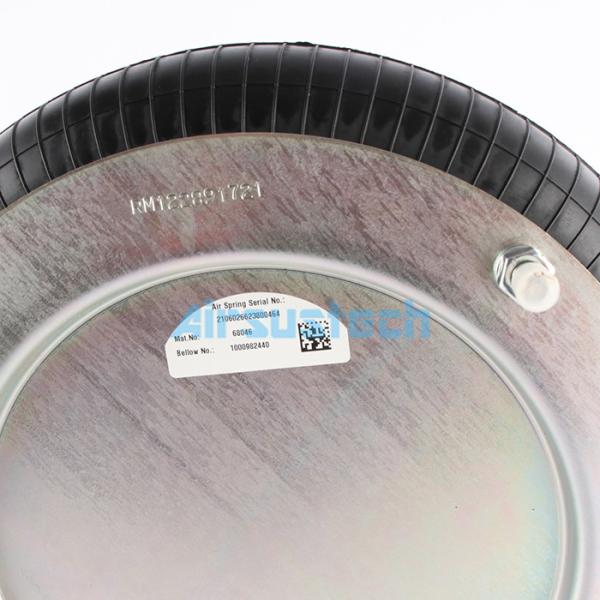

The picture of FD 614-26 DS G 1/2
