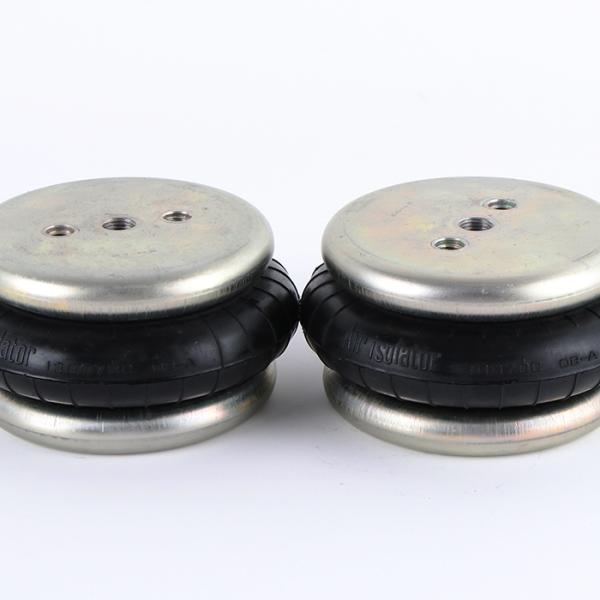

Firestone Air Bags 16 W01-M58-6140 Single Convoluted Bellows Cylinder 1/4 BSP Industrial

Basic Information

Product name: Air spring, air bag, air springs, air bags, air shocks, air suspension, air suspension springs

Sample: Available

Condition: 100% New

HS Code: 8708809000

Cross Reference

Firestone Style 16,16B

Firestone W01-M58-6140; W01 M58 6140; W01M586140; WO1-M58-6140; WO1 M58 6140; WO1M586140

Contitech 61388

Contitech FS 50-5; FS 50 5; FS505; FS50-5CIG1/4CA; FS 50-5 CI G 1/4 CA

Specifications and Technical Parameters

16B Style AirSpring, Type 1 Bead Plate, (2) M8 Blind Nuts On 44MM Centers, 1/4" BSPP Centered Port

Air inlet: 1/4BSP

Top plate Blind nuts: 2pcs×M8×1.25

Top plate Blind nuts: 2pcs×M8×1.25

Screw center distance: 44mm

Max OD at 7 BAR: 152mm

Other Firestone style 16 models

Air Spring Components

1. Blind Nut (Threaded Hole)
A permanent part of the bead plate assembly providing an alternative mounting system to the Stud.
2. Air Fitting Hole
A tapped hole providing air entrance for the part.
3. Bead Plate
Permanently crimped onto the bellows, diaphragm during manufacture.
4. Bellows
The heart of the airspring. Includes at least four ply, or layers of material - an inner layer, two ply of cord reinforced fabric and an outer layer.
5. Bumper (Bump Stop)
A solid moulded rubber fail safe device used on many suspension applications. Prevents excessive damage to the vehicle and suspension in the case of sudden air pressure loss.
6. Girdle Hoop (Centre Ring)
A ring between the convolutions of the convoluted type air spring, helps provide stability in the part.

Applications

Sports Equipment
precision instrument
Laboratory equipment
Test bench equipment
Stone Equipment Vibration Grinding Table
Industrial fans, industrial central air-conditioning compressors
Blowers and Motors
Shaker

Waste incineration equipment air bag
Mining equipment air bag
Aluminum extrusion machine air bag

paper machine
Lifts
press machine
Vibrating Conveyor
