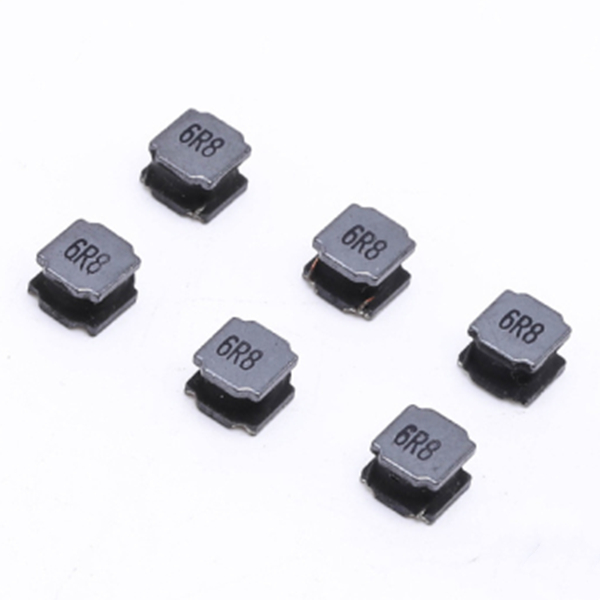

Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor
Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor
Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor
Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor
Specifications
Brand Name :
Forewell
Model Number :
CLMW252012
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
2000 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
3000/pack
Type :
SMD Power Inductor
Inductance :
0.24~10uH
Rated current :
8.5A~1.35A
Package size :
2.5*2.0*1.2mm
Material :
Nickel Zinc
Sample :
Free of charge
Description

​SMD Shielded Power Inductor Coil Dc Dc Converter Inductor For Electronic Product

Features:

  • Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  • Metallization on ferrite core results in excellent shock resistance and damage-free durability
  • Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  • Low audible core noise；
  • Frequency Range: up to 3.0MHz；

Applications:

  • Portable gaming devices
  • Notebooks, desktop computers, servers, graphic cards；
  • Flat-screen TVs, blue-ray disc recorders, set top box；
  • Portable gaming devices
  • Automotive systems；
  • Telecomm base stations.
  • Communications

Specification:

Item Description
Category SMD Power Inductor
Inductance 0.24~10uH
Current Rating (Amps) 8.5A~1.35A
Size / Dimension 2.5*2.0*1.2mm
Material alloy powder

Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor

Material:

NO. Componets Material
1 Core Soft magnetic Matel
2 Wire Plyurethane system enameled copper wire
3 Magnetic Glue Epoxy resin and magnetic powder
4 Substrate FeNiCu/Ag or Ag/Ni/Sn
5 Top Electrodes Sn alloy
6 Marking Nitrocellulose

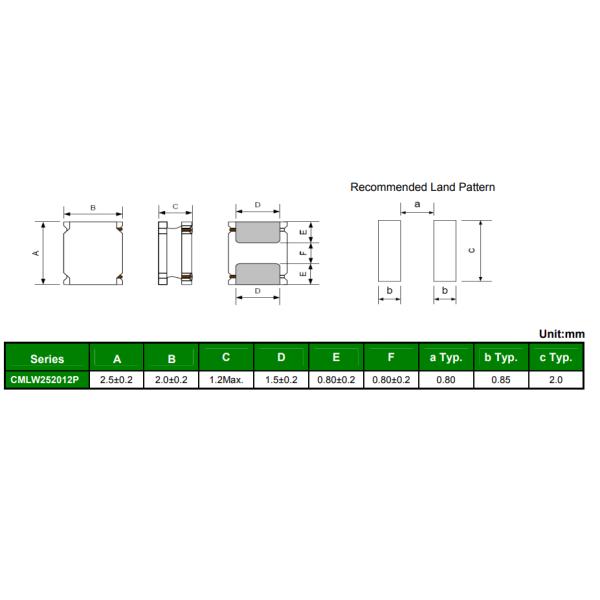

Dimensions

Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor

Specification

Nickel Zinc SMD Power Inductor 8.5A Dc Dc Converter Inductor

Packaging Quantity(pcs)

Standard Packing Quantity:2000 pcs/reel

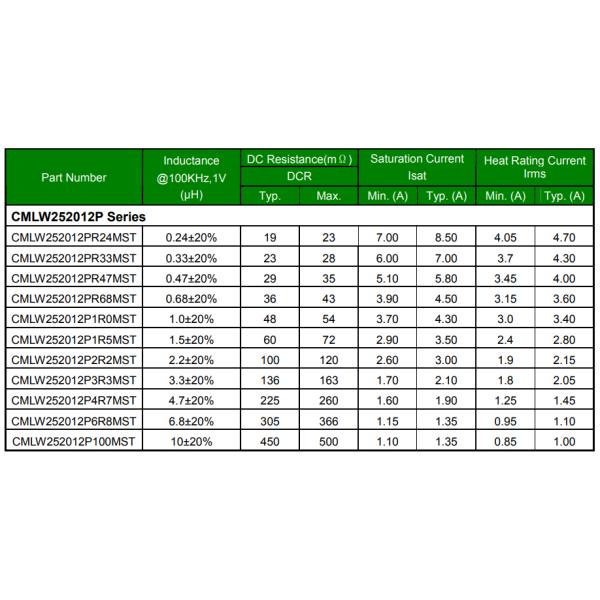

Electrical Characteristics

  • 1) Operating temperature range(Including self-heating):-40℃ ~ +125℃
  • 2) Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)
