G50 Wireless Charging Coil Fast Charging Coil for Mobile Phone Charger Pad PCB Customizable

1.Product Description

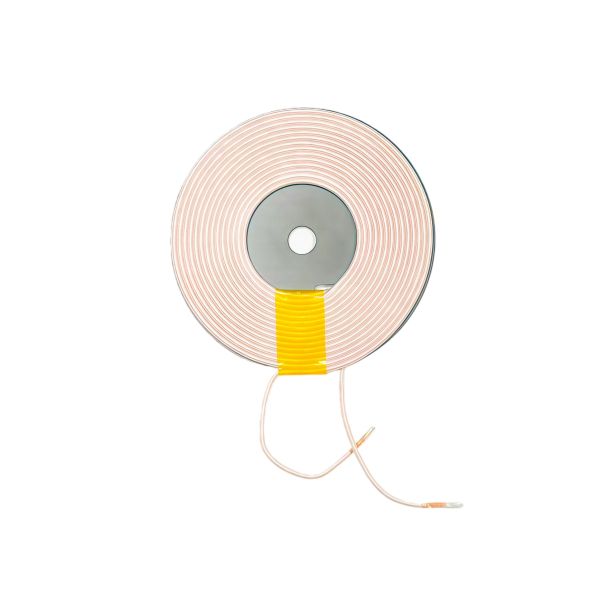

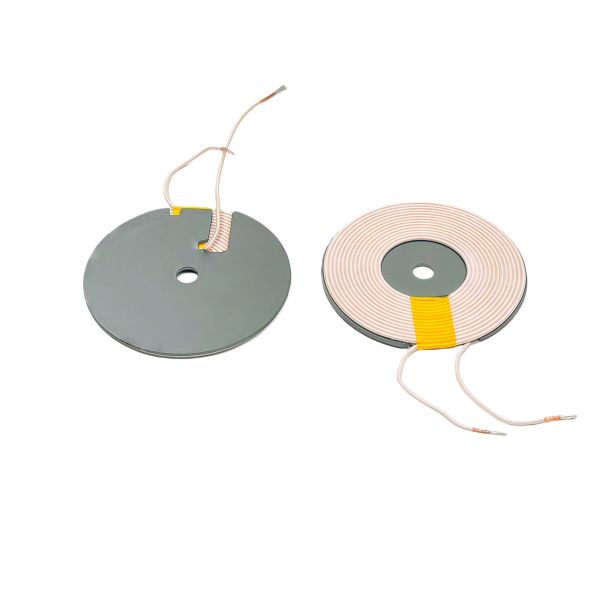

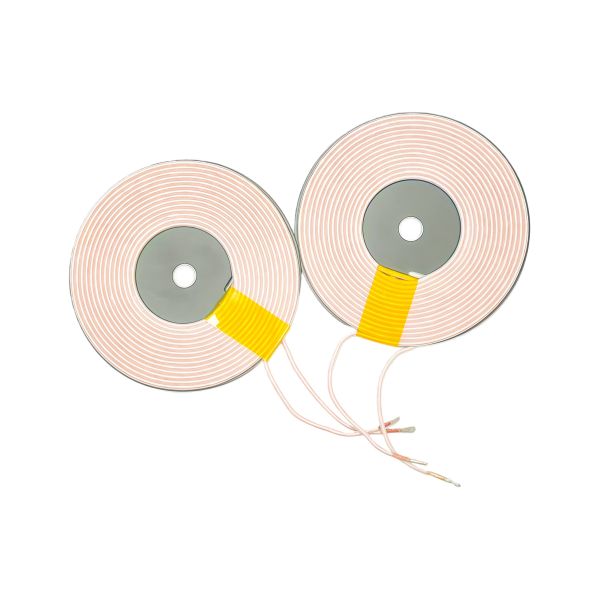

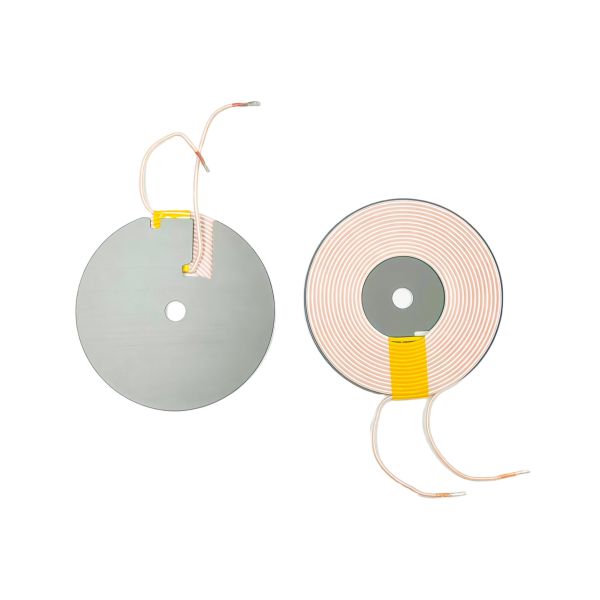

G50 Wireless Charging Coil is a high-performance transmitting/receiving coil designed specifically for wireless charging of mobile devices. It adopts the classic 50mm outer diameter specification, compatible with the mainstream Qi wireless charging standard in the industry, and can support up to 15W fast charging, perfectly suitable for PCB design and integration of mobile phone charging boards, charging bases, embedded charging furniture and other products. The coil is made of high-quality copper wire and equipped with ferrite shielding sheets, effectively improving charging efficiency, reducing energy loss and heat generation. We provide highly customized services that can flexibly adjust coil turns, inductance values, lead lengths, and interface types according to your project needs, helping you quickly achieve product prototype development and mass production. It is an ideal solution for hardware engineers, brand owners, and DIY enthusiasts.

1. Classic and efficient size: Adopting the widely used 50mm (G50) standard outer diameter design in the industry, it achieves the best balance between charging area, conversion efficiency, and product aesthetics, making it an ideal choice for embedded charging and standard charging boards.

2. Supports fast charging: Compatible with the latest Qi standard, it can support up to 15W fast wireless charging, providing efficient and fast charging experience for most smartphones on the market that support fast charging.

3. Excellent electrical performance:
-High quality material: precision wound from high-purity copper wire, ensuring low DC resistance, reducing heat generation, and improving energy efficiency.
-Integrated magnetic shielding: Equipped with high-performance ferrite shielding sheets, it can effectively focus magnetic fields, reduce electromagnetic interference (EMI), prevent energy leakage, and enhance alignment freedom.
-High compatibility and reliability: Fully compatible with Qi v1.2/1.3 protocol, it can perfectly match mainstream wireless charging chip solutions. After rigorous testing, it has stable output performance and good foreign object detection (FOD) compatibility, making it safe and reliable to use.
-Powerful customization flexibility: This is its core advantage. We can provide in-depth customization according to your specific project needs, including:
-Customization of electrical parameters: inductance value, resistance value.
-Structural customization: number of coil turns, winding method, thickness.
-Interface customization: lead length, model (such as tinned copper wire, FPC cable), connector type.
-Shielding customization: shape, thickness, and adhesive method of ferrite sheet.

4. Plug and play, easy to integrate: The coil module structure is clear, and the interface definition is standard, which greatly shortens the research and development cycle for hardware engineers. It can be quickly integrated into the PCB design of various products such as charging boards, mobile power supplies, car brackets, and smart furniture.
