ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
ZXY-G14 600Ω:600Ω Impedance Matching Audio Transformer with Ground Loop Isolation
Specifications
Brand Name :
ZXY
Model Number :
ZXY-G14
Certification :
RoHS、ISO9001、CE
Place of Origin :
Shenzhen Guangdong
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
3-4weeks
Packaging Details :
Carton
Description

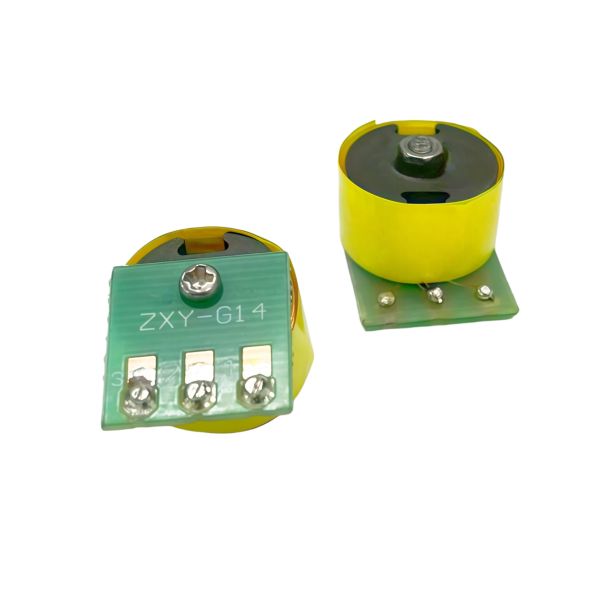

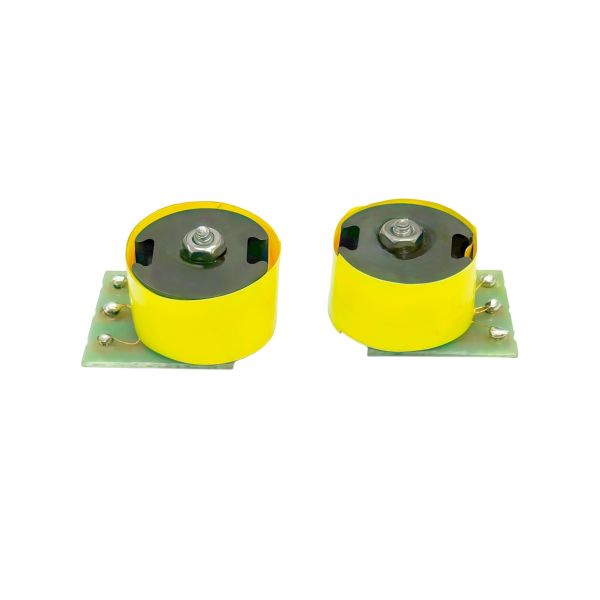

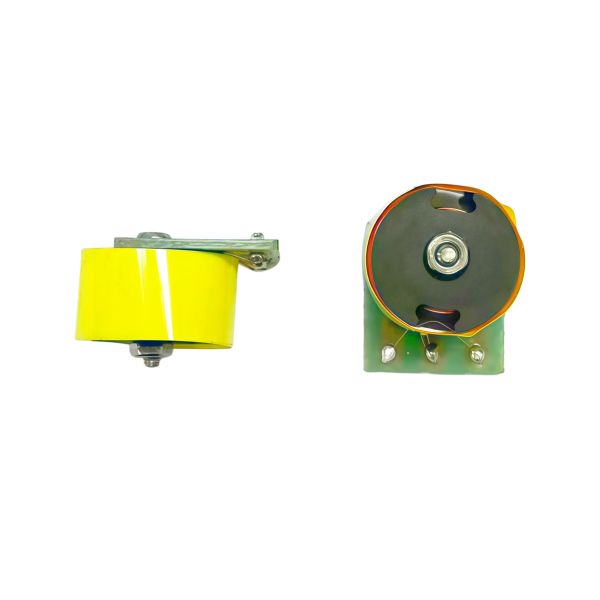

ZXY-G14 Microphone Input Matching Transformer
The ZXY-G14 is a compact audio transformer designed to connect microphones to preamps and mixers with clean, noise-free signal transfer. It matches 600-ohm impedance and isolates ground loops to reduce hum and interference, ensuring your recordings sound clear and professional. Perfect for studio gear, DIY projects, or upgrading vintage equipment.
Key Features
  • Impedance Matching: Provides standard 600Ω:600Ω (1:1) impedance conversion to ensure maximum signal transmission efficiency between microphones, preamplifiers, mixing consoles, and other devices
  • Ground Loop Isolation: Uses electromagnetic isolation technology to physically cut off ground loops, effectively eliminating 50Hz/60Hz AC hum and low-frequency noise
  • Common Mode Noise Suppression: Balanced transmission structure with excellent common mode suppression capability to attenuate electromagnetic interference and radio frequency interference
  • Signal Integrity: Maintains flat frequency response and low distortion characteristics across the full 20Hz-20kHz frequency range
  • Electrical Isolation: Provides protection by preventing DC voltage or abnormal surges from entering sensitive equipment
  • Easy Integration: Compact package with standard pin layout for easy installation directly into PCB boards or audio devices
Performance Specifications
Feature Description
Impedance Ratio 600Ω : 600Ω (1:1) - Provides precise impedance matching between microphones, preamps, and mixers for optimal signal transfer
Frequency Response 20Hz - 20kHz (±0.5dB typical) - Delivers flat, wide-bandwidth performance across the full audible spectrum
Distortion Low THD (< 0.1% @ 1kHz, typical) - Maintains signal purity with minimal harmonic distortion
Insertion Loss < 0.5dB - Ensures efficient signal transmission with negligible level loss
Isolation Type Galvanic isolation - Physically separates input and output to eliminate ground loops and block DC voltage
Noise Rejection High common-mode rejection - Effectively suppresses EMI, RFI, and hum (50Hz/60Hz) for clean audio
Core Material High-permeability nickel-alloy or premium magnetic core - Provides low distortion, high linearity, and wide frequency response
Shielding Encapsulated or mu-metal shielding (as applicable) - Reduces external electromagnetic interference for stable operation
Dielectric Strength > 500V (input to output) - Offers reliable electrical isolation and equipment protection
Operating Temperature -20°C to +85°C - Suitable for studio, broadcast, and live sound environments
Mounting Type PCB pin / solder lug - Compact footprint for easy integration into existing or DIY audio equipment
Application Microphone input, tube preamps, DI boxes, mixing consoles, broadcast consoles, recording interfaces, and vintage gear restoration
