Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Supply Type :
Direct supply of factory
Frequency Range :
20kHz to100kHz
Model Number :
ER14.5
MOQ :
Negotiable
Delivery Time :
3-4 Week days
Input Voltage :
85V to 265V AC
Output Power :
15W
Packaging Details :
Carton
Price :
Negotiable
Core Material :
Copper
Supply Ability :
50000
Application :
Power Electronics
Certification :
RoHS,ISO9001,CE
Brand Name :
ZXY
Place of Origin :
China Guangdong
Description
ER14.5 High Frequency Power Transformer PCB Mount Electronic Transformer for SMPS Power Supply
Product Overview

ER14.5 High Frequency Power Transformer is a PCB mount ferrite transformer specially built for SMPS switching power supplies. Widely applied in small adapters, LED drivers, consumer electronics and industrial compact power modules.

Key Features
  • Optimized ER14.5 ferrite core with low core loss and low leakage inductance under high-frequency operation
  • Compact vertical PCB mount structure saves valuable board space for miniaturized power designs
  • Direct drop-in replacement for Wurth, Sumida, Pulse and TDK equivalent ER14.5 transformers
  • Rigorous in-line quality inspection, RoHS compliant; UL, CE certifications available on request
  • Flexible customization: custom turns ratio, winding structure and pin assignment to match your specifications
  • Low heat generation and stable output performance, supporting long-term continuous operation

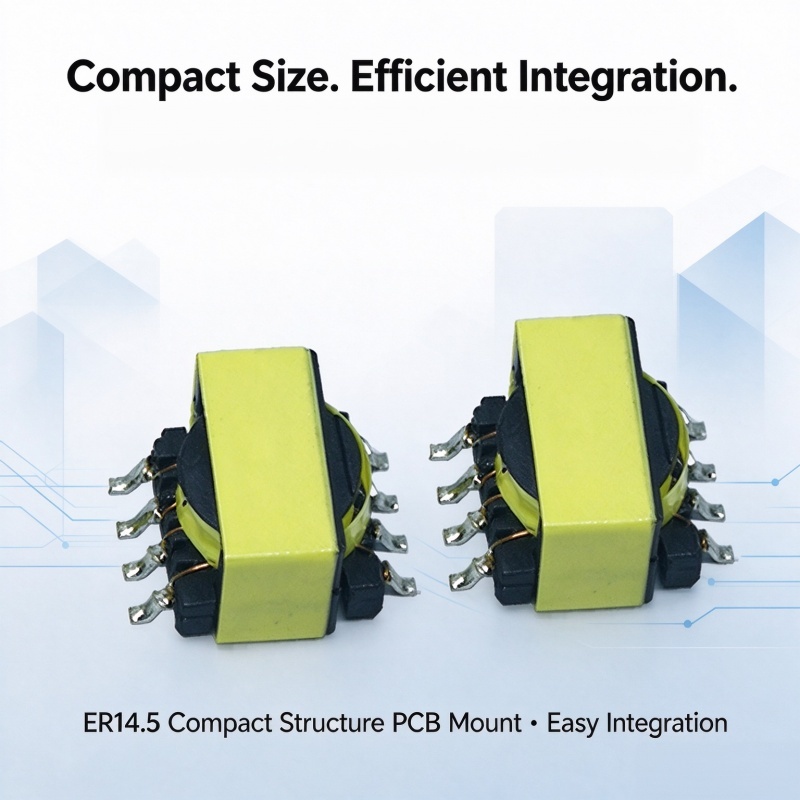

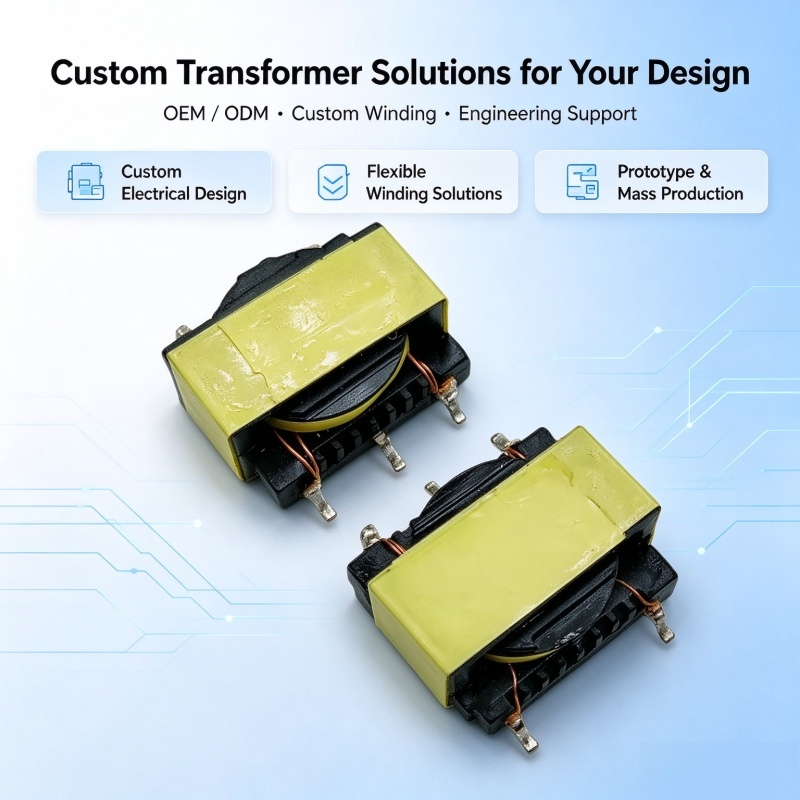

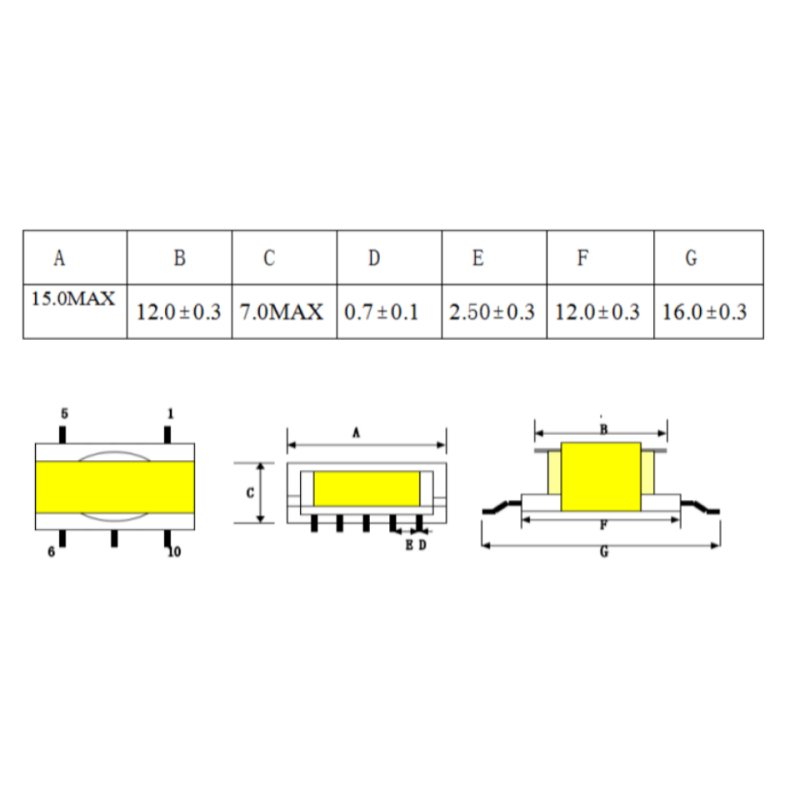

Product Images
ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply
Company Profile
ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply ER14.5 High Frequency Power Transformer PCB Mount for SMPS Power Supply
