EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Frequency :
50Hz/60Hz
Supplier Type :
Manufacturer
Model Number :
EI14
MOQ :
Negotiable
Delivery Time :
3-4 Week days
Tolerance :
±20%
Operating Temperature :
-20℃-+140℃
Packaging Details :
Carton
Brand Name :
ZXY
Place of Origin :
China Guangdong
Price :
Negotiable
Material :
Silicon steel sheet
Supply Ability :
50000
winding material :
Copper
Certification :
RoHS,ISO9001,CE
Description
EI14 600:600 Ohm 1:1 4pins Audio Transformer
Our EI14 600:600Ω 1:1 Audio Isolation Transformer is designed for low-frequency audio signal transmission and isolation in microphones and other audio equipment. Featuring a compact EI14 core, a 1:1 turns ratio, 600Ω:600Ω impedance, and a 4-pin configuration, it offers a practical solution for audio circuit integration.
Cost-Effective Alternative Solution
For customers seeking alternatives to established international audio transformer brands, our EI14 audio transformer can be evaluated as a cost-effective replacement option based on matching electrical specifications, dimensions, pin configuration, and application requirements. We support OEM/ODM customization to help customers find a suitable solution for their existing designs while optimizing component sourcing costs. Actual compatibility and performance should be verified through technical comparison and sample testing.
Suitable for microphone circuits, audio signal processing equipment, communication devices, and other low-frequency audio applications, this transformer can be customized according to project requirements, subject to engineering evaluation.
With 26 years of experience in magnetic components manufacturing, we provide factory-direct supply, engineering support, sample testing, and reliable production services. Whether you need samples for product evaluation or a manufacturing partner for volume orders, we are ready to support your project with flexible customization and quality control.
Contact us today for technical specifications, samples, and a competitive quotation.
Key Features
  • EI14 core design with compact construction
  • 600Ω:600Ω impedance and 1:1 turns ratio
  • 4-pin configuration for convenient circuit integration
  • Cost-effective alternative option for compatible audio transformer applications
  • OEM/ODM customization and sample support
  • Factory-direct manufacturing and engineering assistance

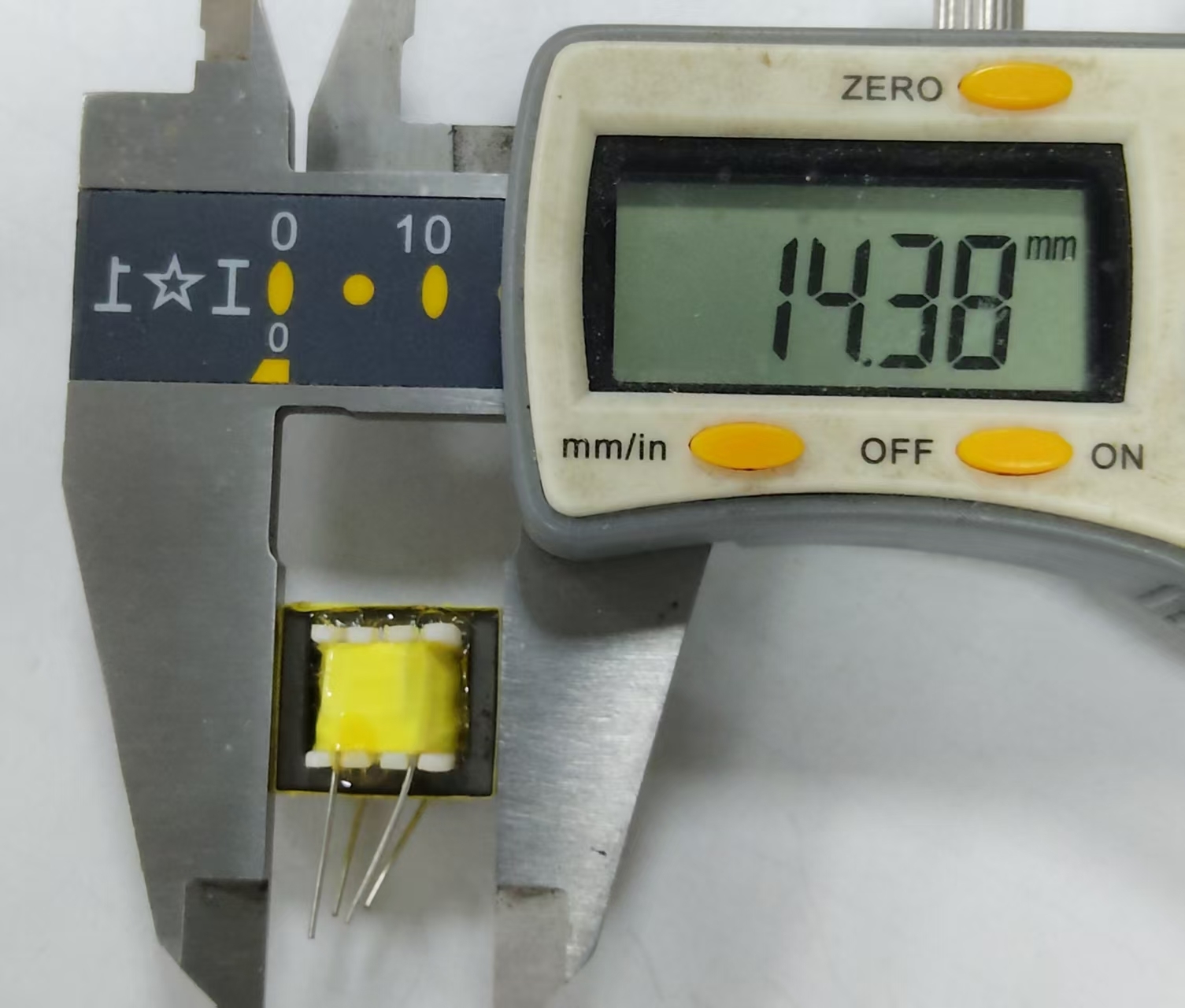

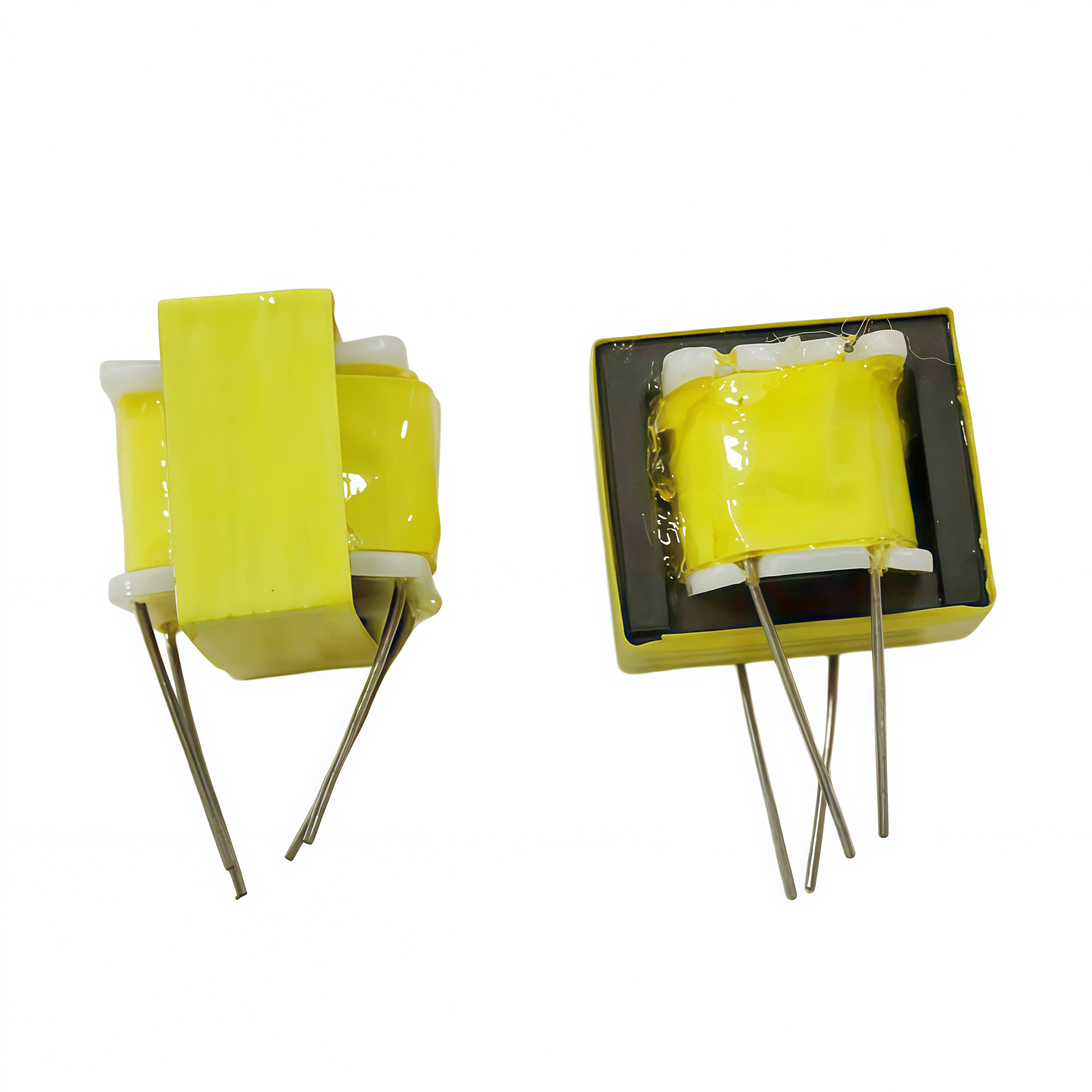

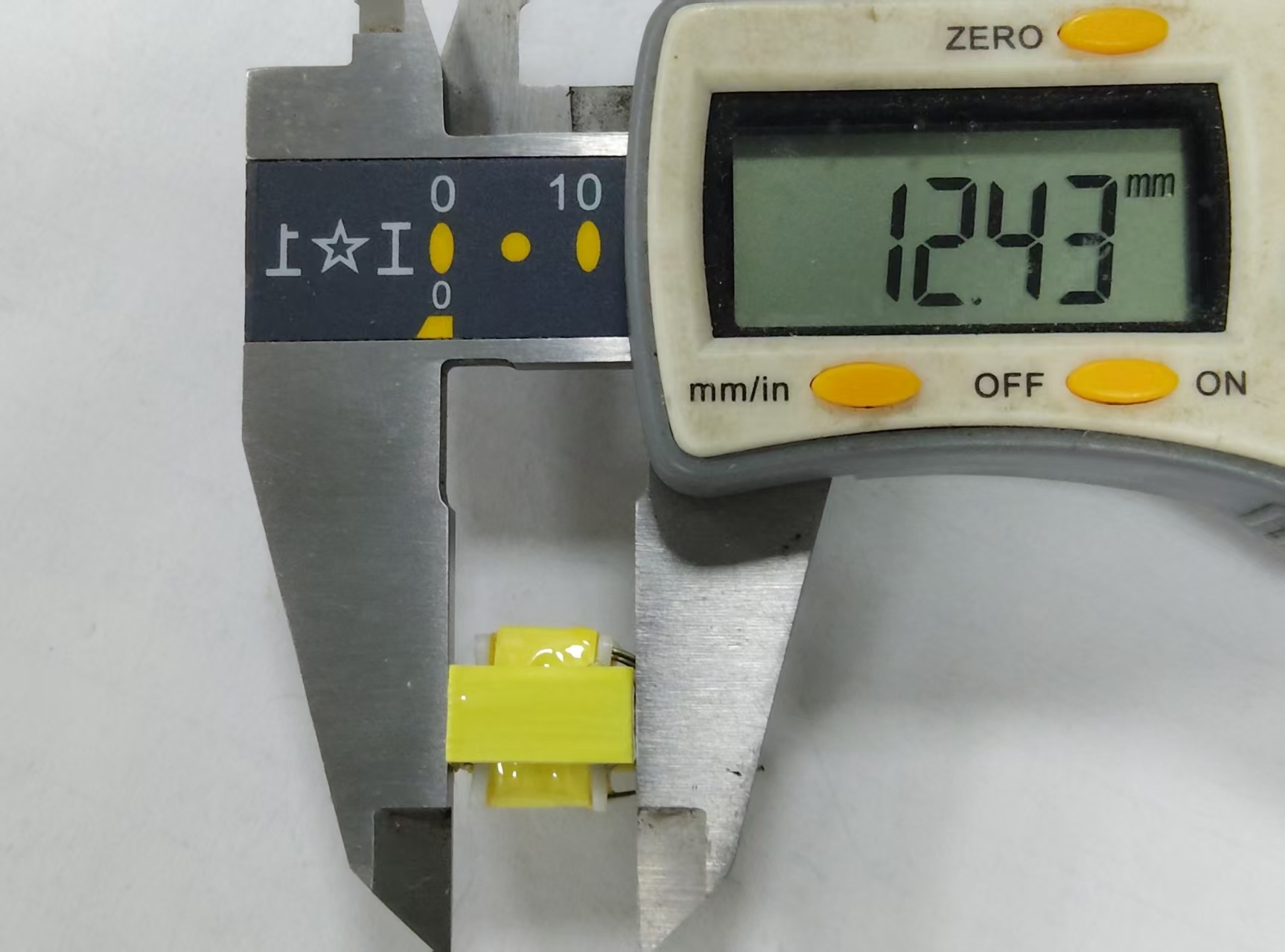

Product Images
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
Company Introduction
With 26 years of expertise in magnetic components manufacturing, we deliver quality solutions and reliable production services.
EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits EI14 600:600 Ohm 1:1 Audio Isolation Transformer with 4-Pin Configuration for Microphone Circuits
