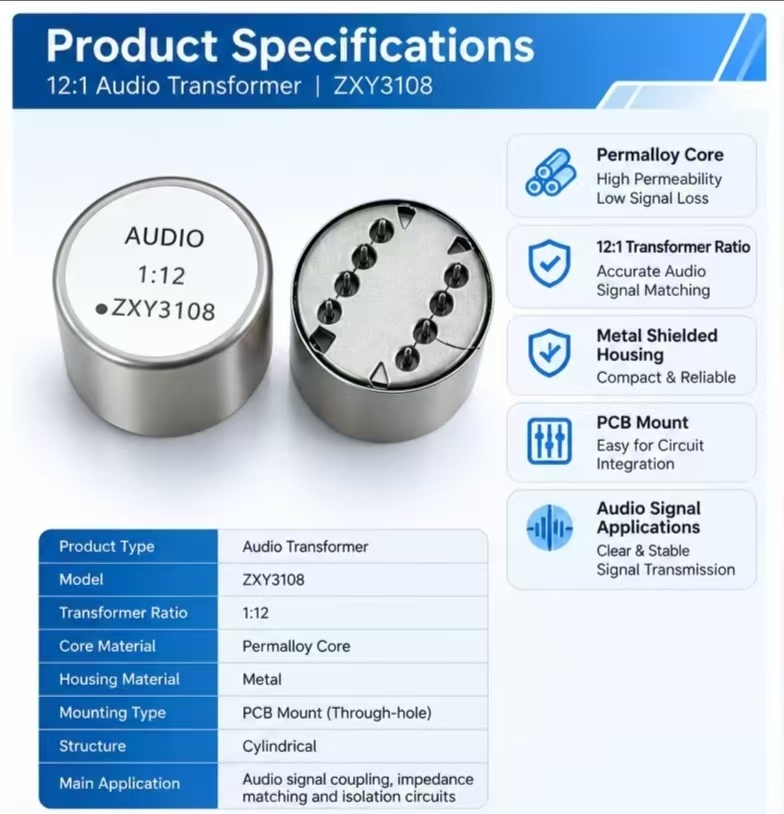

Specifications
Core Material :
Permalloy
Model Number :
ZXY-3108
Certification :
RoHS、ISO9001、CE
MOQ :
1000 pieces
Delivery Time :
3-4 Week days
Payment Terms :
L/C,D/A,D/P,T/T
Turns Ratio :
1:12
Brand Name :
ZXY
Packaging Details :
carton
Customization :
Support OEM ODM
Price :
negotiable
Supply Ability :
50000
Mounting Type :
Through Hole PCB Mount
Application :
Professional Audio Signal Processing
Place of Origin :
China Guangdong
Description
12:1 Audio Transformer ZXY3108 Permalloy Core PCB Mount Signal Transformer
Product Overview

The 12:1 Audio Transformer ZXY3108 is a compact PCB-mount signal transformer designed for audio signal coupling, impedance transformation, and electrical isolation in electronic circuits. Featuring a Permalloy magnetic core, this transformer is engineered for stable and reliable signal transmission in audio and low-level signal applications.

With a 12:1 turns ratio, the ZXY3108 provides efficient signal transformation while maintaining a compact footprint suitable for PCB integration. Its PCB-mount construction enables easy installation and helps simplify circuit design for equipment manufacturers.

The ZXY3108 is suitable for a wide range of applications, including audio equipment, microphone circuits, signal interfaces, communication devices, recording equipment, and industrial electronic systems where reliable signal coupling and isolation are required.

Key Features
  • 12:1 audio transformer ratio
  • High-permeability Permalloy core
  • Designed for audio and signal transmission

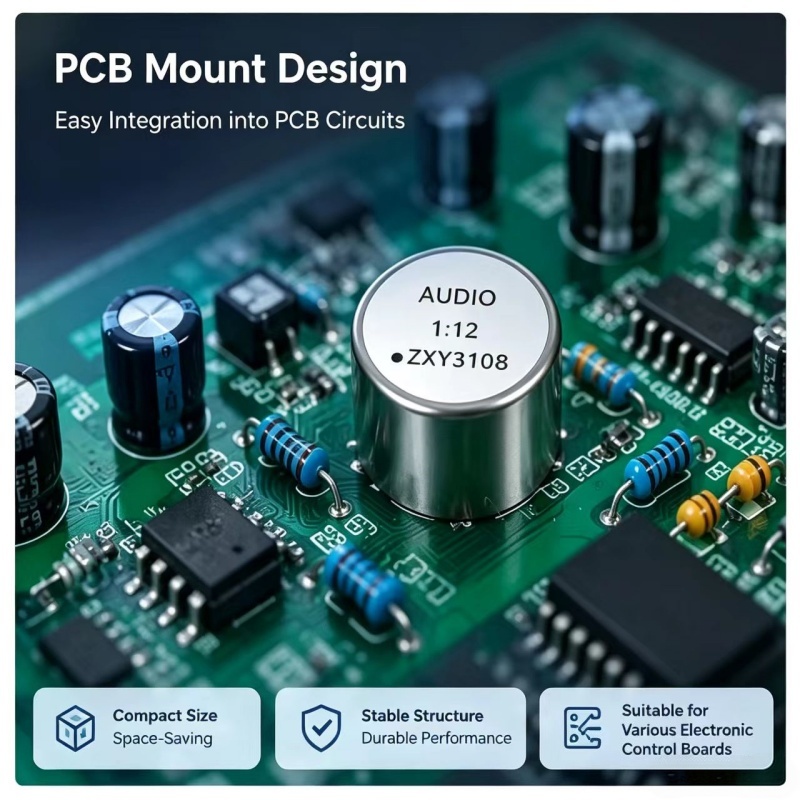

  • PCB-mount construction for easy integration
  • Compact design for space-conscious applications
  • Suitable for OEM and customized electronic applications
Typical Applications
  • Audio signal isolation
  • Microphone and preamplifier circuits
  • Audio interfaces
  • Recording and studio equipment
  • Communication equipment
  • Signal coupling and impedance transformation
  • Industrial electronic instruments
Product Images
12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing
Manufacturer Information
12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing 12:1 Turns Ratio Audio Transformer with Permalloy Core for Professional Audio Signal Processing
