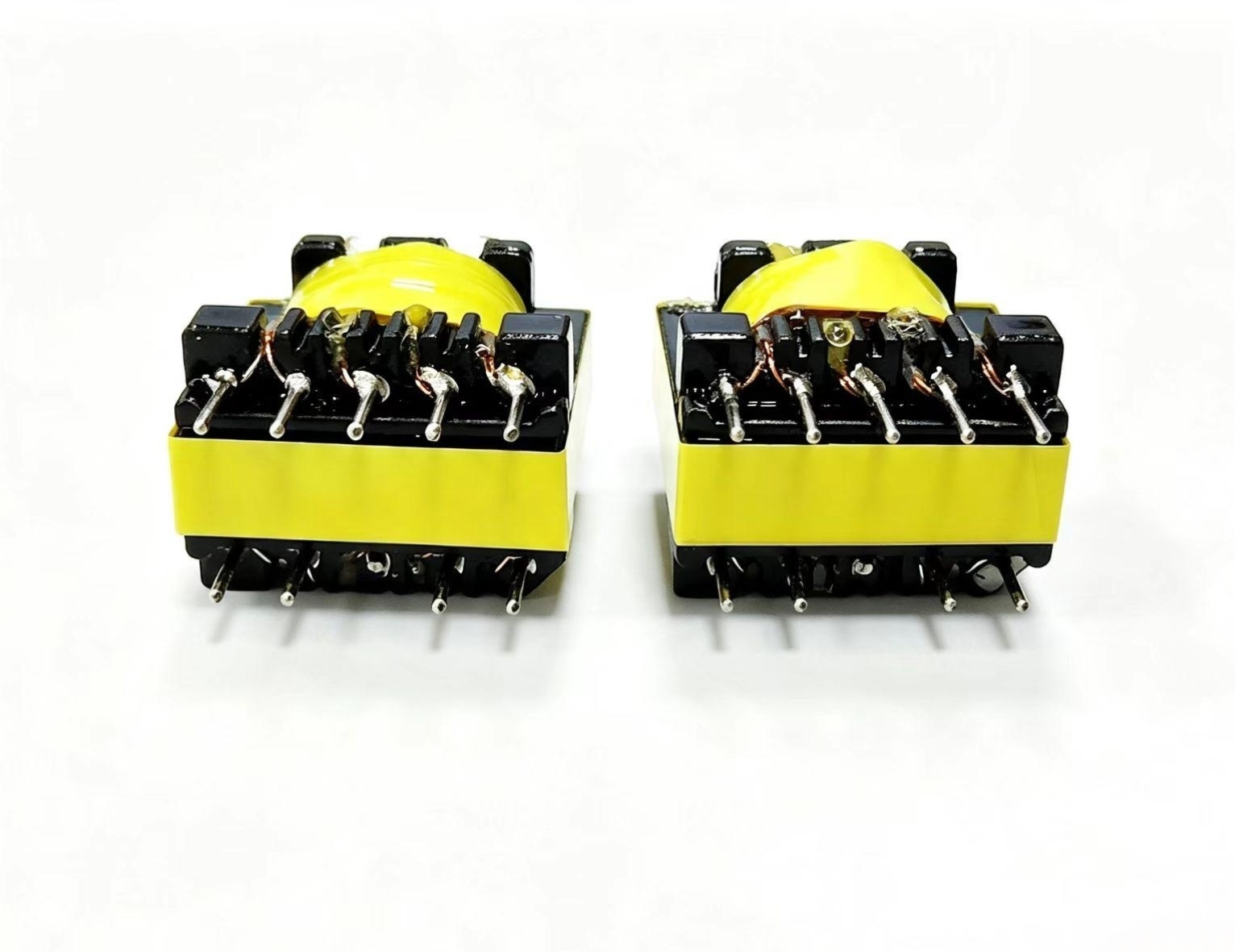

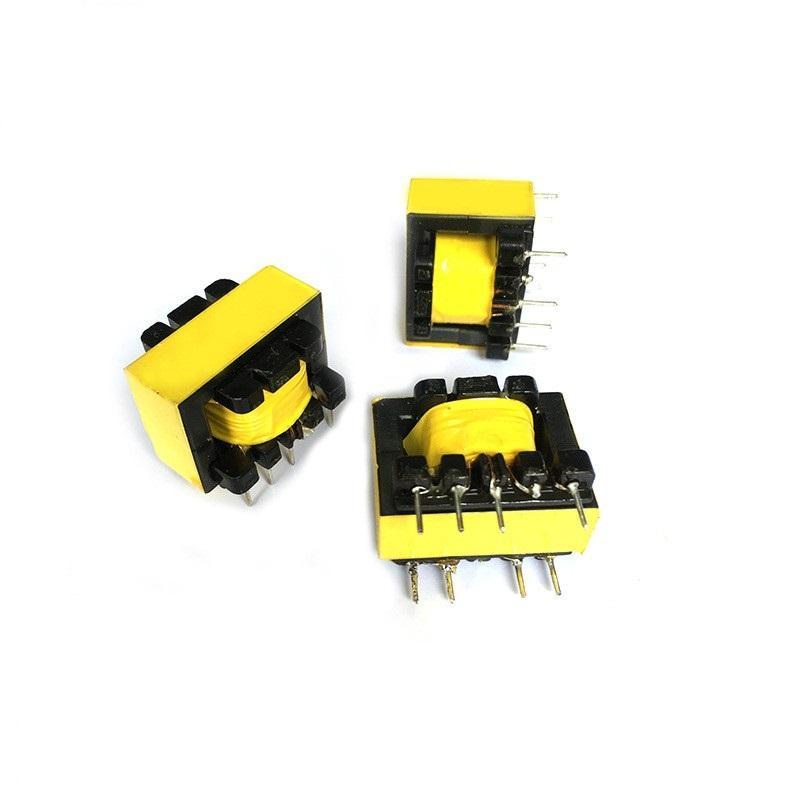

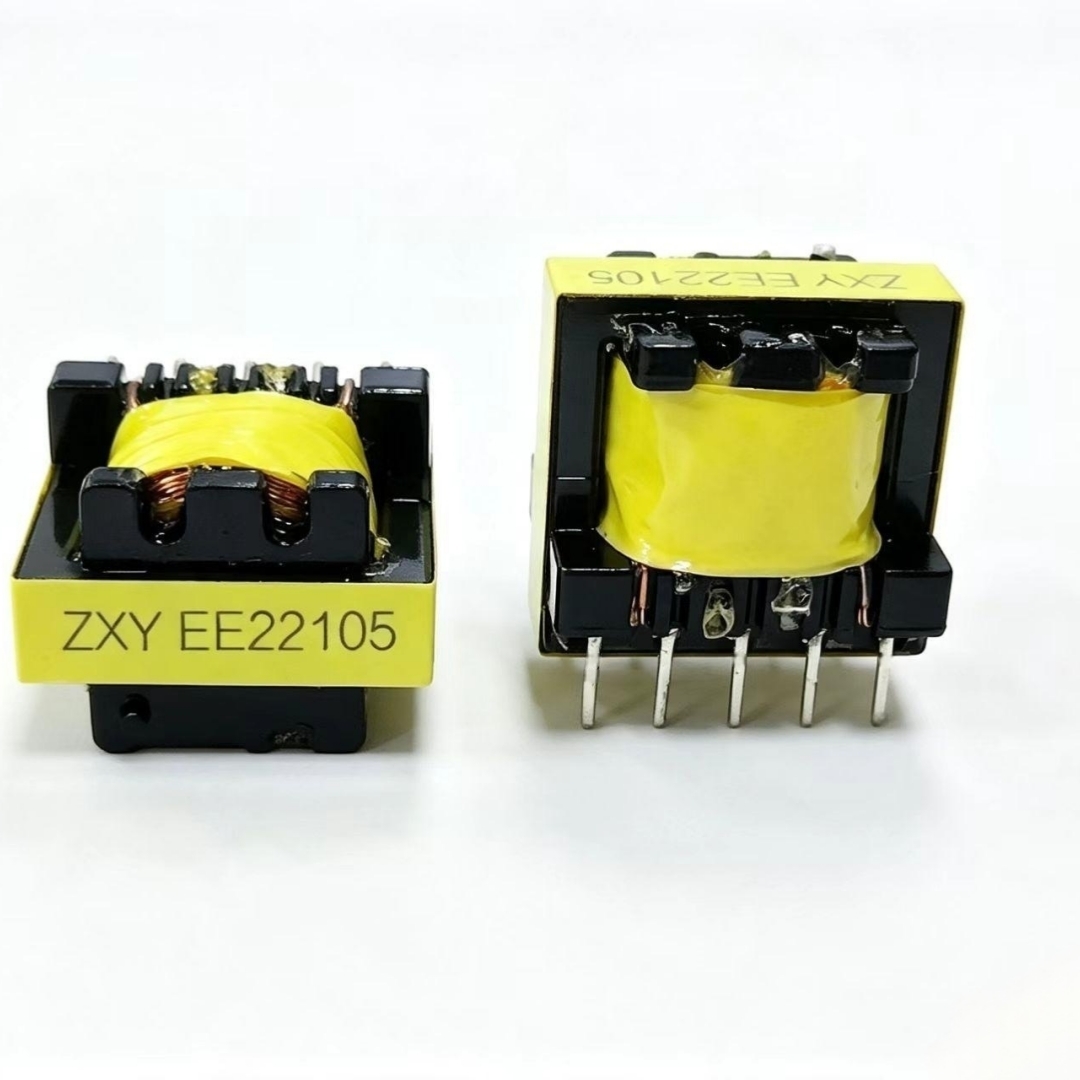

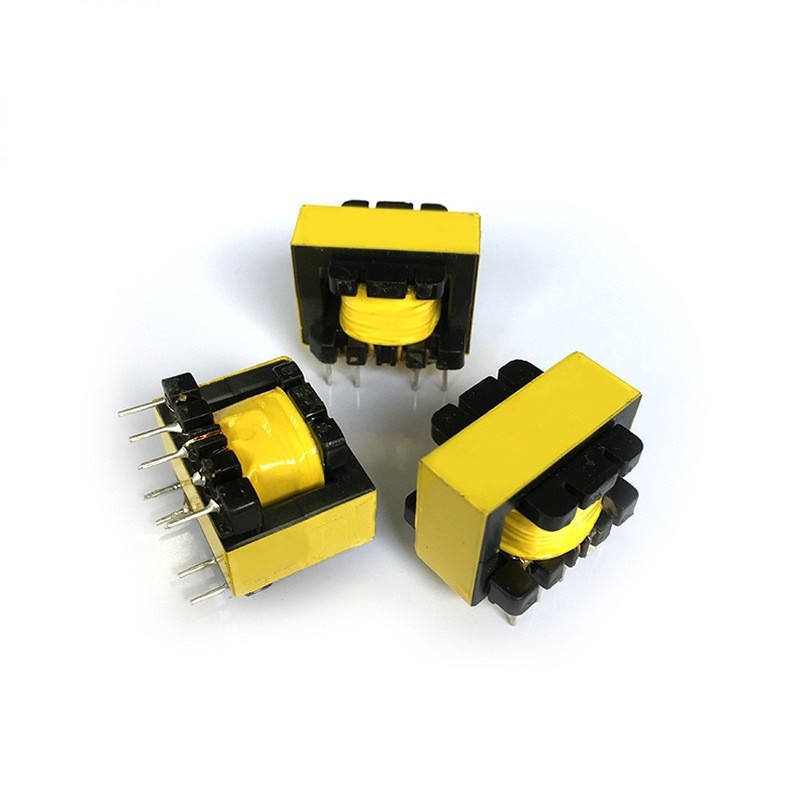

ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply
Specifications
Supply Ability :
50000
Model Number :
ZXY EE22
Operating Frequency :
20kHz–300kHz
Price :
negotiable
Certification :
IS09001/ CE
Winding Material :
High Temp Pure Copper Enameled Wire
MOQ :
negotiable
Delivery Time :
3-4 work days
Custom Service :
Custom Turns Ratio
Payment Terms :
T/T
Brand Name :
ZXY
Core Model :
EE22 Mn-Zn Ferrite Core
Place of Origin :
China Guangdong
Installation Type :
PCB Mount
Packaging Details :
carton
Description

ZXY EE22 High Frequency Transformer, Ferrite Core Power Transformer for Switching Power Supply

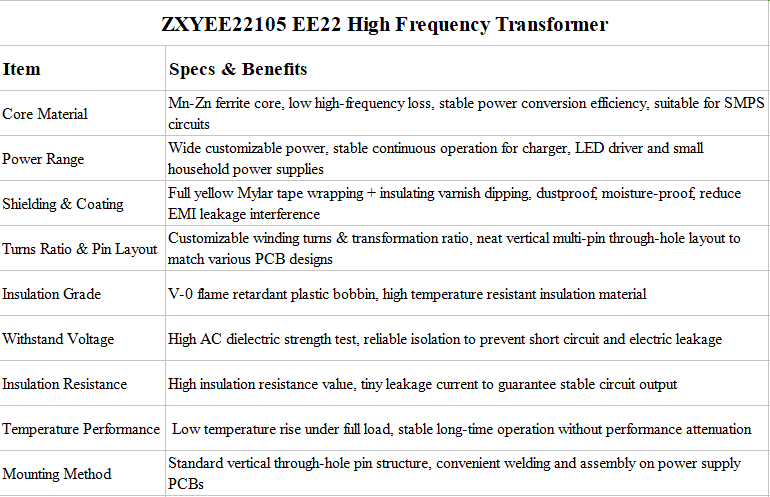

  • Product Description

ZXY EE22 high-frequency power transformer adopts premium PC40 Mn-Zn ferrite core as the core component, specially developed for small & medium power switching power supply circuits with working frequency ranging from 20kHz to 300kHz, supporting rated power of 5W–18W. This PCB-mount transformer features compact EE22 standardized outline, low core loss, high magnetic permeability and low temperature rise during continuous operation. The whole product complies with RoHS environmental standards, stable output voltage, long service life and strong shock resistance. We support full customization on pin layout, winding turns, inductance, input & output voltage and packaging according to customer circuit requirements, and provide sample testing for verification before mass order.

  • Core Advantages

Low high-frequency loss, high energy conversion efficiency up to 90%–95%, less heat generation.

Miniature EE22 size, saves PCB space for compact electronic equipment.

Excellent insulation & isolation performance, high safety factor.

Wide operating temperature range: -40℃ ~ +125℃, adaptable to various working environments.

Customizable turns ratio, pin type (vertical / horizontal), auxiliary winding available.

RoHS compliant, stable batch consistency, factory direct supply with competitive price.
