Customized Copper Winding Nickel Steel Sheet High-frequency EF16 Audio Transformer
Product Overview

ZXY's newly launched EF16 audio transformer is a high-performance miniature audio transformer designed for signal processing and power conversion scenarios. The product features a customized copper winding and nickel steel plate combination design, operating stably across a wide frequency range of 20kHz to 500kHz.

With output power covering 4W to 12W, this transformer balances high efficiency, reliability, and compact structure to meet various low and medium power application requirements. The high magnetic flux density and permeability ensure excellent signal integrity with low loss characteristics.

Available in both vertical and horizontal installation configurations, the EF16 audio transformer offers flexible adaptation to different PCB layouts, providing an ideal solution for space-constrained designs.

Performance Characteristics
Parameter Specification
Operating Frequency 20kHz - 500kHz
Output Power 4W - 12W
Operating Temperature -40°C to +125°C
Storage Temperature -25°C to +85°C
Storage Humidity 30% - 95%
Core Material High-permeability ferrite
Winding Material Copper winding + Nickel steel sheet

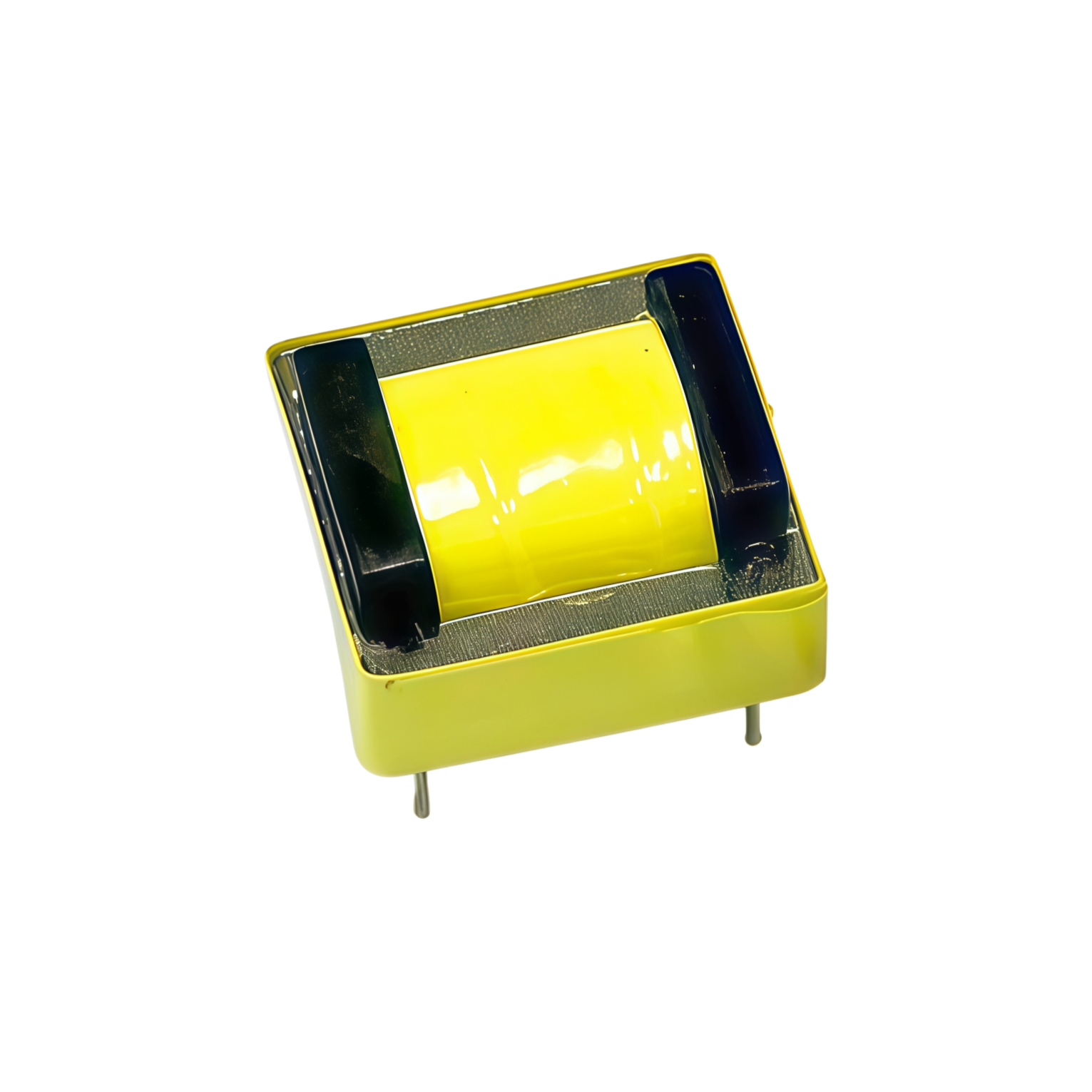

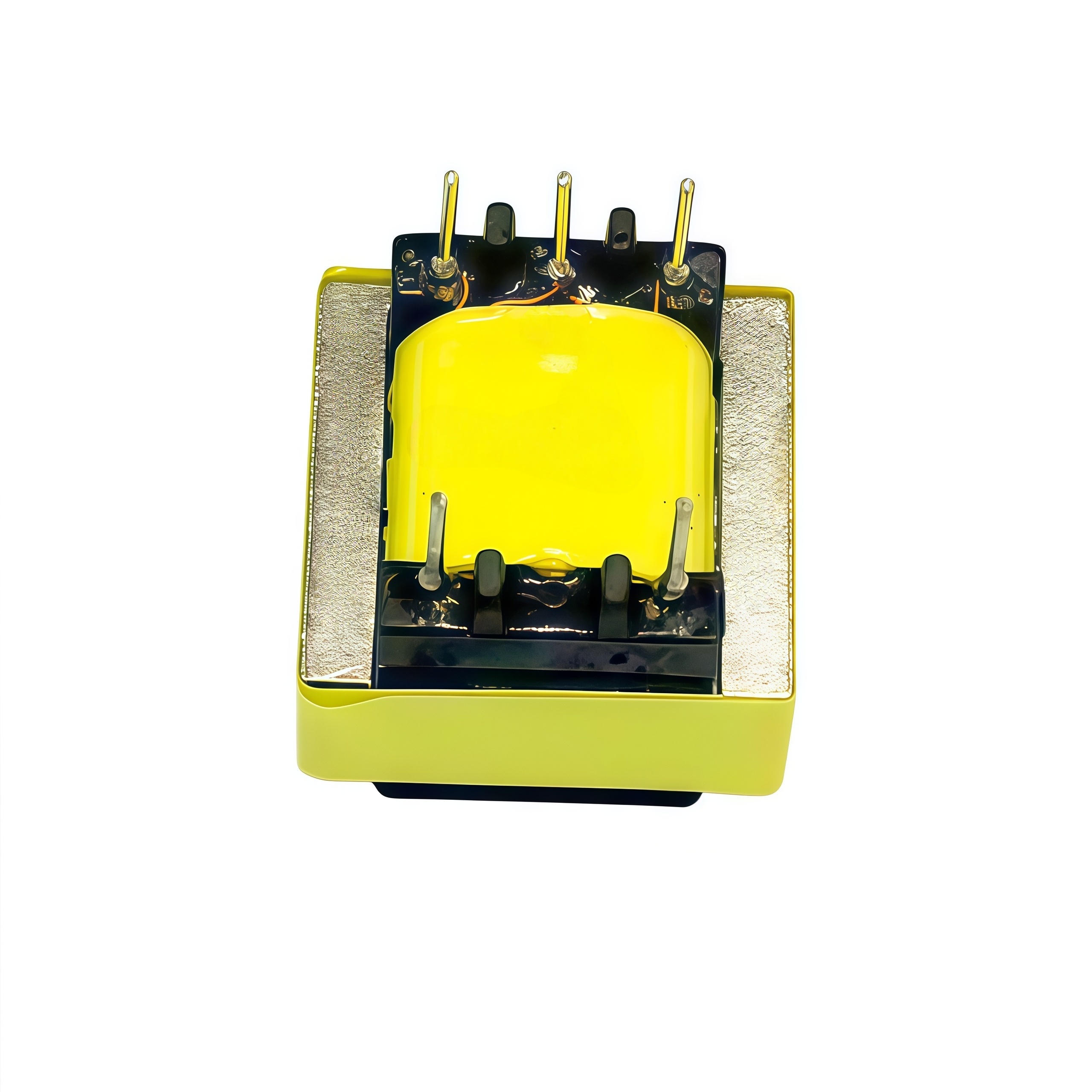

Product Images
