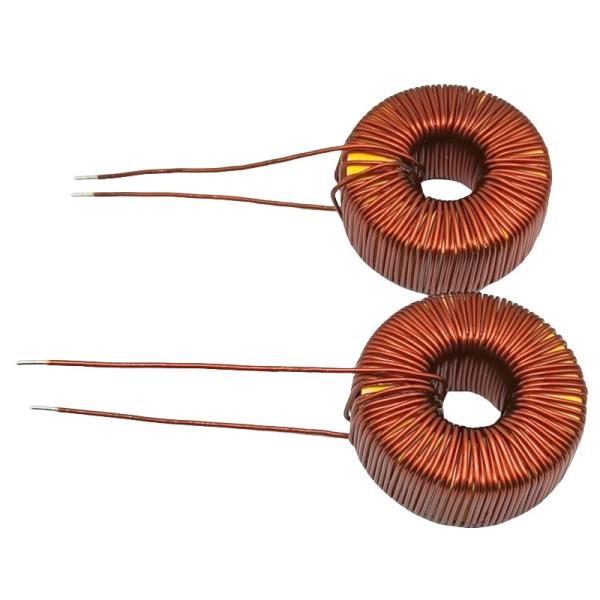

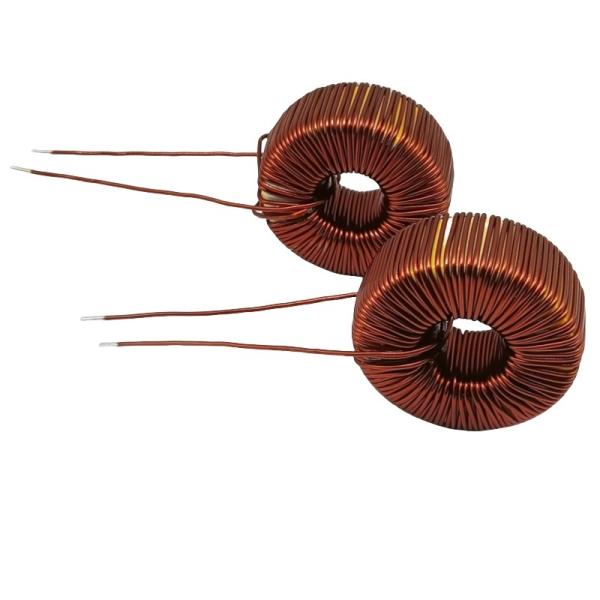

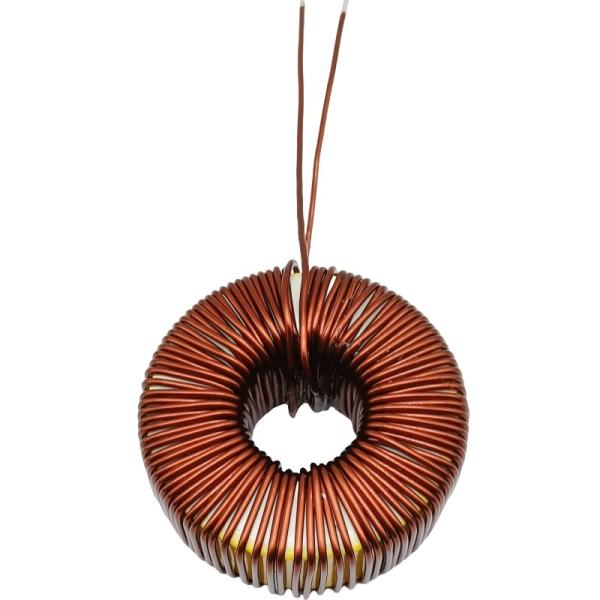

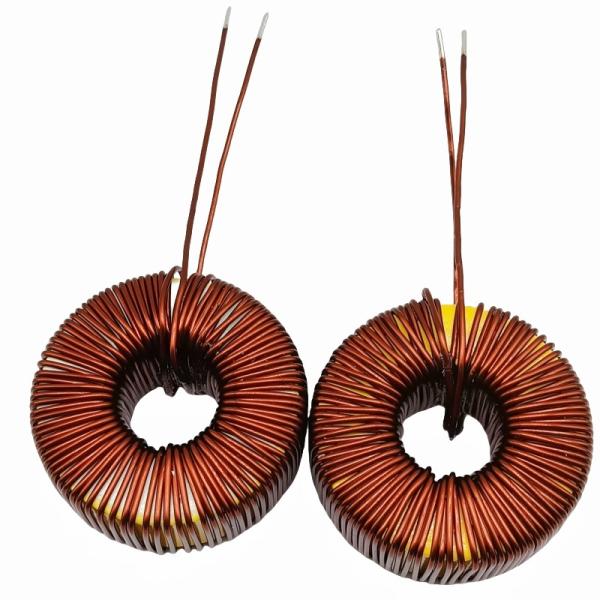

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Custom Inductance High Current Power Toroidal Inductor Magnetic Ring
Specifications
Brand Name :
ZXY
Model Number :
T Series Inductor
Certification :
RoHS,ISO9001,CE
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T paypal xtransfer
Supply Ability :
2000K-pcs/month
Delivery Time :
Stock Or 3 weeks
Packaging Details :
Customized cartons
Supplier Type :
Manufacturer
Material :
Copper wire,Magnetic ring
Inductance :
Custom
Keywords :
High Current Power Toroidal Inductor
Features :
High performance
Coil Structure :
Toroidal
Description

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring

1.Product Description

1.Basic Principle

High Current Power Toroidal Inductor consists of a coil of wire wound around a toroidal (doughnut-shaped) core made of magnetic material (e.g., ferrite or powdered iron).

When an electric current passes through the coil, it generates a magnetic field within the core.

2.Energy Storage

The inductor stores energy in its magnetic field when current flows through it.

3.Current Handling

The toroidal shape ensures uniform magnetic flux distribution, allowing the inductor to handle high currents without saturation.

The low DC resistance (DCR) minimizes power loss, making it efficient for high-current applications.

4.Noise Suppression

The closed-loop design of the toroidal core reduces electromagnetic interference (EMI), making it ideal for noise-sensitive circuits.

Characteristic Description
High Current Capacity Designed to handle high current levels, making it suitable for power applications.
Customizable Can be tailored to specific current, inductance, and size requirements.
High Magnetic Efficiency Toroidal shape minimizes magnetic flux leakage, enhancing performance.
Compact Design Toroidal core allows for a compact and space-saving design.
Mechanical Durability Robust construction ensures long-term reliability.
High Thermal Stability Can operate at high temperatures without significant performance degradation.
Wide Frequency Range Suitable for both low and high-frequency applications.

2.Functions

High Current Power Toroidal Inductor, i.e. High Current Power Toroidal Inductor, has the following main functions:


1. Energy storage function


2. Filtering function

3. Limit current changes


4. Adjustment of voltage and current


5. Preventing backlash voltage


6. Electromagnetic compatibility optimization

3.Applications

High current power toroidal inductors are used in a wide range of applications, including the following fields:


-Power electronics field


-Industrial automation


-Automotive electronics


-Communication field


-New energy field

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring

Custom Inductance High Current Power Toroidal Inductor Magnetic RingCustom Inductance High Current Power Toroidal Inductor Magnetic RingCustom Inductance High Current Power Toroidal Inductor Magnetic RingCustom Inductance High Current Power Toroidal Inductor Magnetic RingCustom Inductance High Current Power Toroidal Inductor Magnetic Ring

​​​
