1A/5V Wireless Charging Transmitter Coil / 3 Coils Qi Wireless For Smart Phone
1A/5V Wireless Charging Transmitter Coil / 3 Coils Qi Wireless For Smart Phone
Specifications
Brand Name :
Defuli
Model Number :
wireless charging transmitter coil
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
8000pcs per day
Delivery Time :
3-7 working days
Packaging Details :
800pcs/carton, 600pcs/carton, 400pcs/carton, 4 or 3 layers each carton
item :
A6 TX coil
sample lead time :
3-7 days
payment :
T/T or Paypal
size :
as detail
color :
as picture
wire :
litz wire
Description

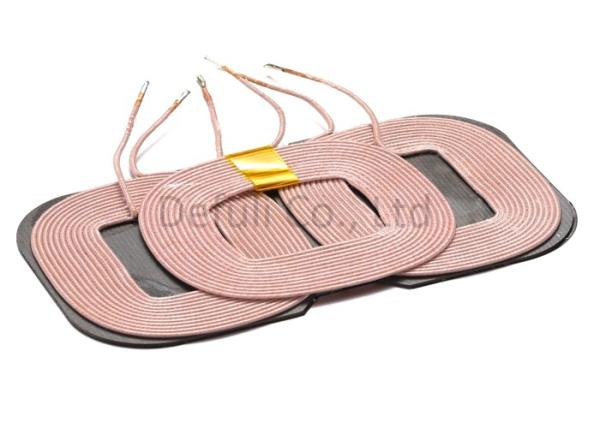

Wireless charging transmitter Coil With 3 Coils Ferrite For Smart Phone

The charging coils are easy to make,but vital in the wireless chargin QI system that can effect the working efficiency & working temperature of the wireless charging power.So stable quality of charging coils is very important to the design of wireless charger.

Wire coils
Double-Sided adhesive tape(Glue)
Ferrit shield

Power: 1A/5V


Low Frequency


Rectangular


Quality Factor: High Q


Inductance: 24


Rated Current: 100mA


Nominal Voltage: 12V


QI Standard

Model Wireless charger coil
Coil Type 3 Coil, 1 Layer
Inductance 24UH +- 10%
Resistance 48
Q Value >70
Coil Dimension 21*18*53*45.5*1.2mm
Shielding Dimension CUSTOMIZED
Test Condition 100KHZ 1V
Notes Customized lead length accepted
