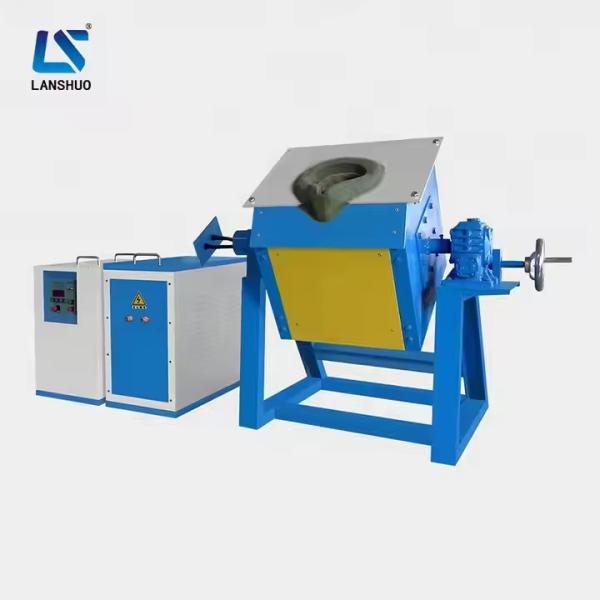

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
Specifications
Brand Name :
ZHENGZHOU LANSHUO
Model Number :
LSZ-25
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
2500USD
Payment Terms :
T/T
Delivery Time :
3-5 WORKING DAYS
Packaging Details :
WOODEN CASE
Power :
25KW
Rated Temperature :
1800℃
Accessories :
IGBT
Voltage :
380-440 V
Melting metal :
copper/iron/steel/aluminum/gold/silver
Description

Main features:

1. IGBT module and inverting technologies.

2. Energy saving.

3. Safe and reliable: 100%duty cycle, 24hrs continuous working is allowed at max power output.

4. Easy to install and operate. Installation can be done by new workers very easily.

Main parameters:

Voltage 3 phase 380V, 50/60HZ
Power 25kw
Input current 36A
Oscillation frequency 1-15KHZ
Water pressure ≥ 0.2Mpa, ≥10L/min
Weight(after packaging) 200kg
Melting capacity and time 5kg steel/iron/stainless steel 20-25min/pot
20kg copper/gold/silver 20-30min/pot
5kg aluminum/aluminum alloy 10-15min/pot
Melting temperature max 1800℃
Cooling system(three choices) Use 3m³water tank and 0.75kw centrifugal pump
Use 6T closed cooling water tower
Use 4P Chiller

Accessories:

1 piece connecting cable between the power supply cabinet and the capacitor cabinet;

1 piece connecting cable between the capacitor cabinet and the furnace;

1 piece remote control cable;

1 piece spare crucible;

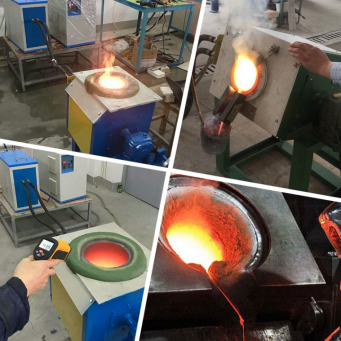

Application:

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

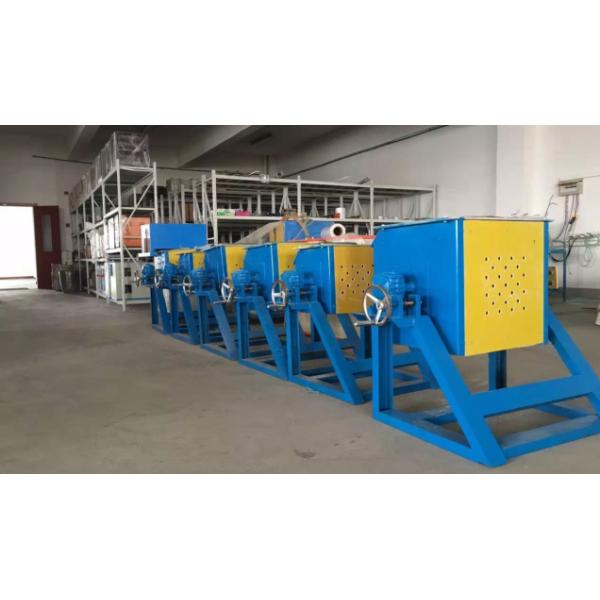

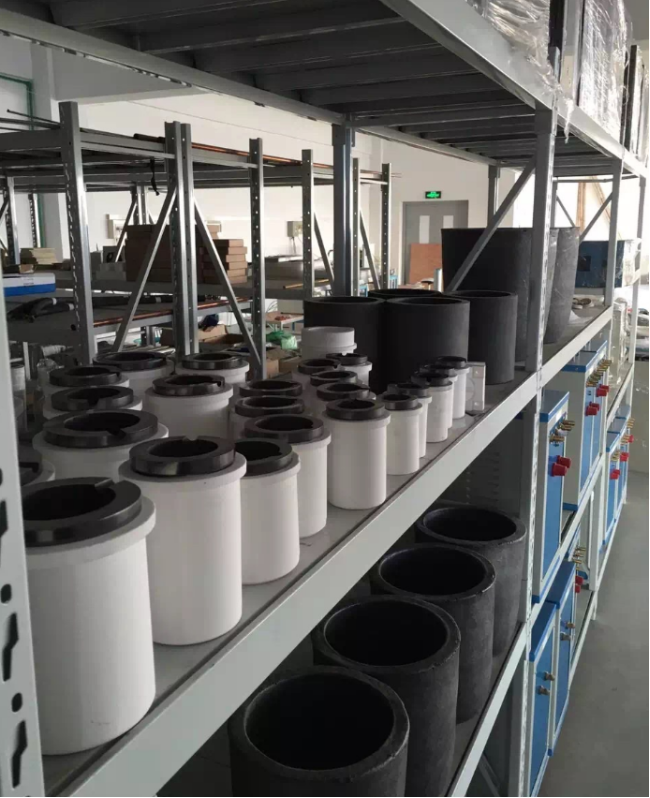

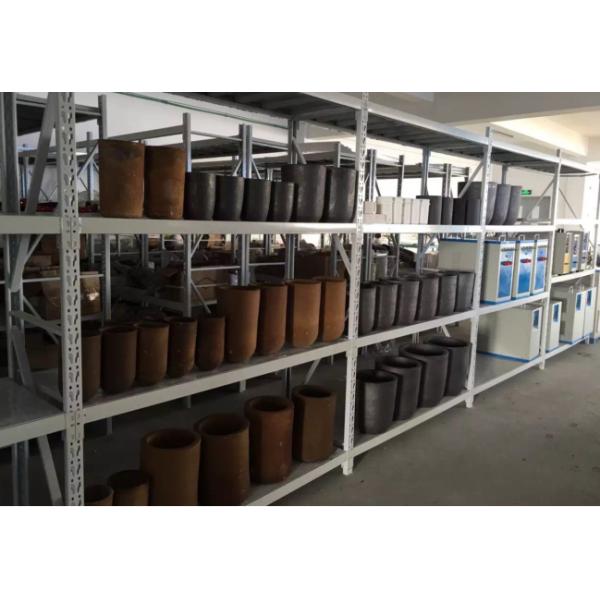

Our workshop:

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

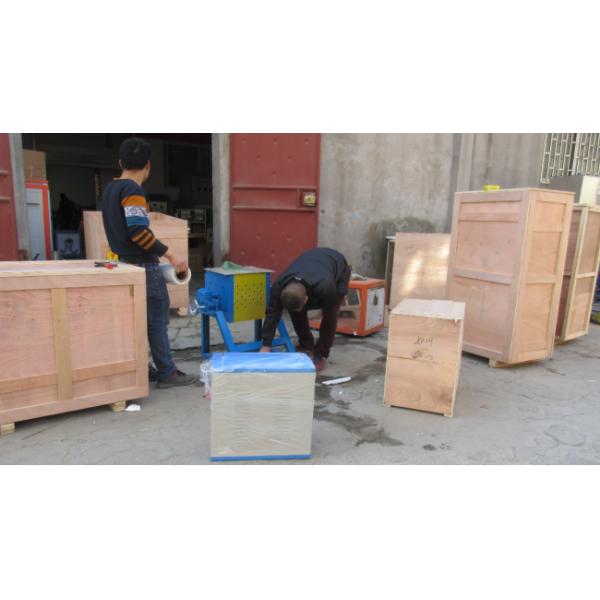

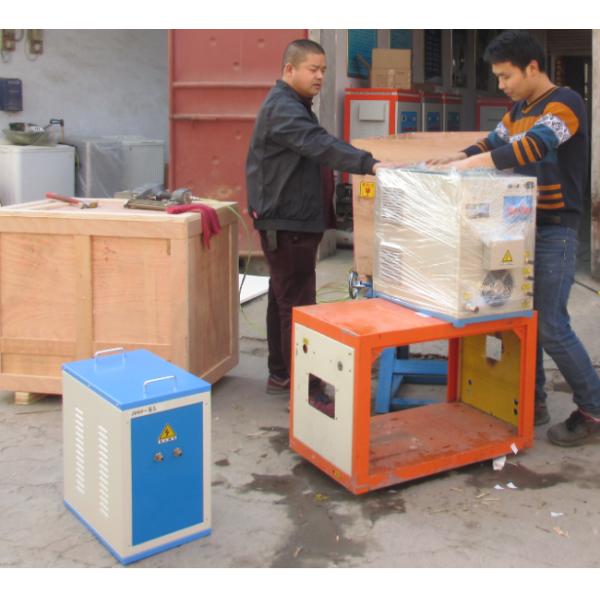

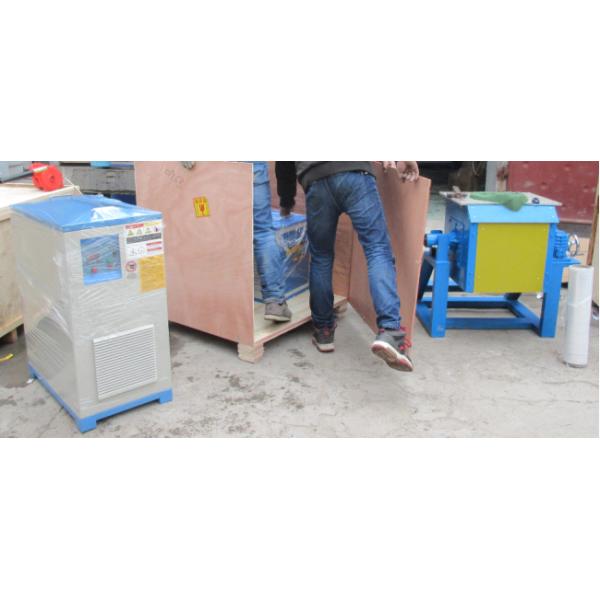

Packaging:

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace

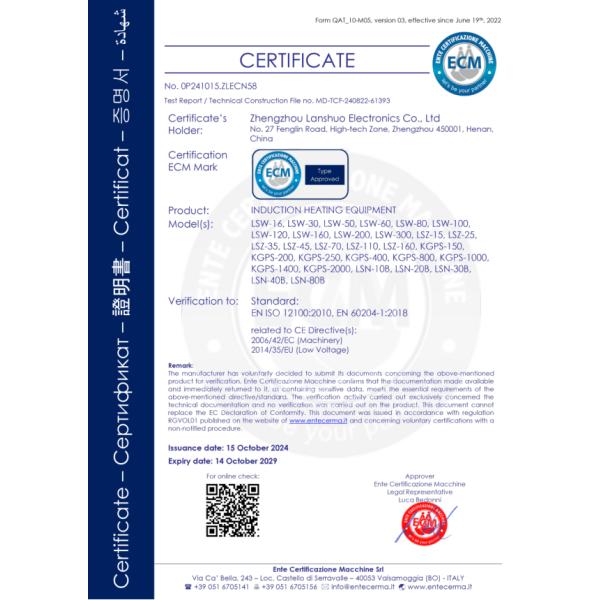

CE:

25KW IGBT Induction Melting Steel / Iron / Gold / Silver / Aluminum / Lead / Copper Furnace
