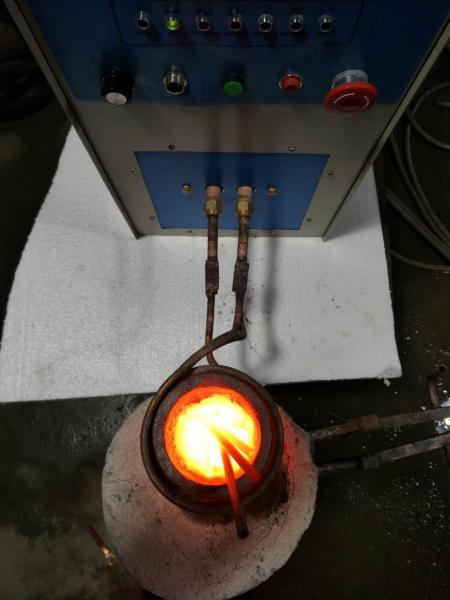

30KW Induction Melting Furnace for Copper Gold Steel 1-5kg
30KW Induction Melting Furnace for Copper Gold Steel 1-5kg
30KW Induction Melting Furnace for Copper Gold Steel 1-5kg
30KW Induction Melting Furnace for Copper Gold Steel 1-5kg
Specifications
Brand Name :
Lanshuo
Model Number :
LSW-30 Induction Melting Machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-2000 / set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 Set/Sets per Year
Delivery Time :
5-7 working days after receiving advanced payment
Packaging Details :
plywood case
Type :
Induction Melting Machine
Usage :
Heating Melting Brazing Welding
Melting Capacity :
1-5kg Iron Steel Copper Aluminum Gold Silver etc.
Rated Power :
30kw
Voltage :
380v
Input Voltage :
Triphase 380v 50/60 Hz
Core Element :
IGBT modules
Oscillation Frequency :
25-40Khz
Description

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

1. LSW-30 Induction Melting Machine Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) precious metal such as gold, silver;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

2. Brief Introduction of Induction Melting Machine:
LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. melting mainly aims to melt the metal into liquid by using the high temperature, which is applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
3. Technical Parameters of LSW-30 Induction Melting Machine:

Modle LSW-30KW
Input Power: 30KW
Input voltage: three phase 380v 50hz
Voltage range: 340V~420V
Oscillation frequency: 25-35Khz
Current(max): 52A
continuous load rate: 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Weight 48kg
Dimension 265*600*540mm

4. Main Features of induction heating Melting machine:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little waste gas and water.
