200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
Specifications
Brand Name :
ZHENGZHOU LANSHUO
Model Number :
KGPS-200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
6000USD-9000USD
Payment Terms :
T/T
Supply Ability :
1 SET
Delivery Time :
5-8WORKING DAYS
Packaging Details :
WOODEN CASE
Rated power :
200kw
Rated capacity :
200kg
Incoming voltage :
380V 50-60HZ
Medium frequency :
2000HZ
Medium voltage :
750V Phase
DC voltage :
500V Phase
DC current :
400A Phase
Rated temperature :
1800℃
Melting time :
20-45min
Furnace type :
Aluminum shell
Description
Model KGPS-200
Rated power 200KW
Rated capacity 200KG
Incoming voltage 380V 50-60HZ
Medium frequency 2000HZ
Medium voltage 750V Phase
DC voltage 500V Phase
DC current 400A Phase
Rated temperature 1800℃
Melting time 20-45min
Furnace type Aluminum shell

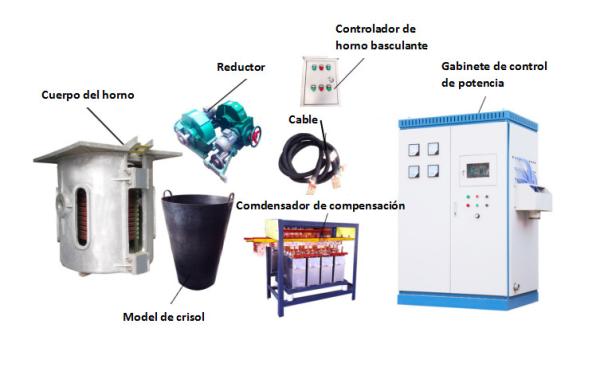

Complete configuration list:

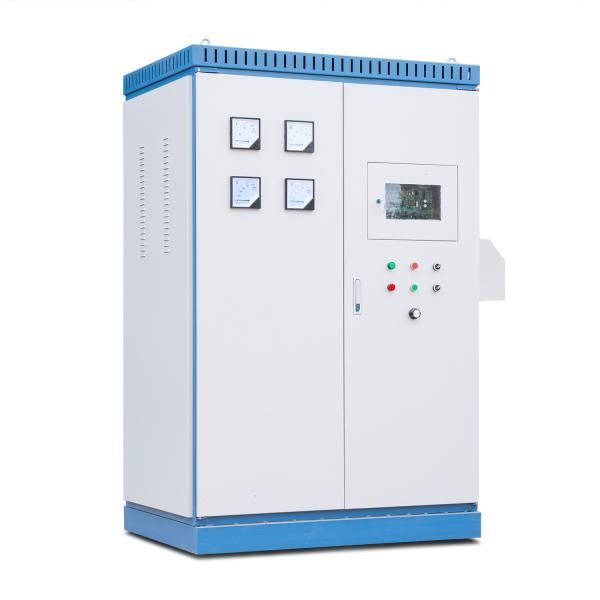

200kw main control cabinet one

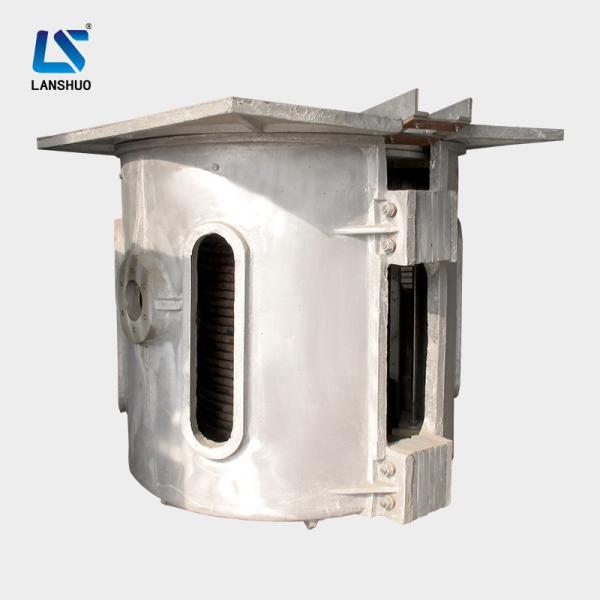

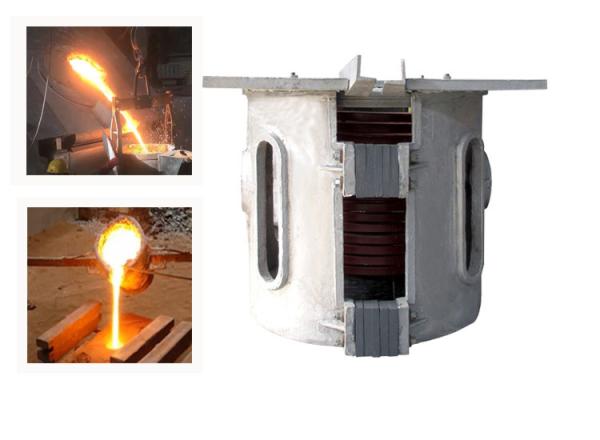

Furnace two
Reducer RZS231
Water cooling cable 185mm² Two roots
Instructions one
Capacitor holder one
Tilting furnace control box one

After-sales service:

warranty period:one year(Counting from equipment to customer factory)

If there is any problem with the equipment during the warranty period, we will quickly give a solution and mail the spare parts that need to be replaced for free.

Pictures:

200kg 200KW Induction Melting Furnace for Steel Copper Aluminum200kg 200KW Induction Melting Furnace for Steel Copper Aluminum

200kg 200KW Induction Melting Furnace for Steel Copper Aluminum200kg 200KW Induction Melting Furnace for Steel Copper Aluminum200kg 200KW Induction Melting Furnace for Steel Copper Aluminum200kg 200KW Induction Melting Furnace for Steel Copper Aluminum200kg 200KW Induction Melting Furnace for Steel Copper Aluminum

CE:

200kg 200KW Induction Melting Furnace for Steel Copper Aluminum
