Specifications
Type :
LST-75 Trolley Type Resistance Furnace
Power :
75kw
Rated temperature :
950℃ / 1100℃
Max loading one batch :
2 tons
Weight :
5.5t
Usage :
Heat Treatment Furnace
Voltage :
380V, 3 phases
Heating source :
electricity
Brand Name :
Lanshuo
Model Number :
LST-75
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000-12000 / set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
10-15 working days after receiving advanced payments
Packaging Details :
standard exporting container
Description
950℃ 1100℃ Electric Trolley Heat Treatment Furnace for Industrial Use
Attribute Value
Type LST-75 Trolley Type Resistance Furnace
Power 75kw
Rated temperature 950℃ / 1100℃
Max loading one batch 2 tons
Weight 5.5t
Usage Heat Treatment Furnace
Voltage 380V, 3 phases
Heating source electricity
Industry Electric Trolley Type Heat Treatment Furnace
Trolley Type Furnace Characteristics
  • Low power consumption
  • Low temperature around the stove with minimal smoke for better operating environment
  • Simple operation process with reliable performance
  • Uniform heating temperature with minimal burning injury for consistent metal components and quality casting
  • Fast warming with easy temperature control and high production efficiency
  • Real-time temperature chart display for dynamic monitoring of heating process
  • Secure and reliable microwave shielding chamber design with multi leakage-proof protection
  • Embedded computer control system with 3 operation modes: manual, auto and constant temperature with free switching
Brief Introduction of Trolley Type Resistance Furnace
Our trolley furnace is a periodic type heat treatment furnace, primarily used for large and medium-sized high chrome, high manganese steel casting, gray iron castings, nodular cast iron, roller, steel ball, hammerhead of the crusher, wear-resisting liners, pressure vessel, slewing bearing, large axial, mechanical parts and mould material for annualizing and other heat treatment. Electric or gas can be used as heating source.
Trolley Heat Treatment Furnace Applications
The equipment is widely used in universities, research institutes, and industrial enterprises such as powder processing, , electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemicals, metal sintering and metal heat treatment experiments and production.
75kw LST-75 Trolley Heat Treatment Furnace 950℃ 1100℃ 2T Capacity 75kw LST-75 Trolley Heat Treatment Furnace 950℃ 1100℃ 2T Capacity

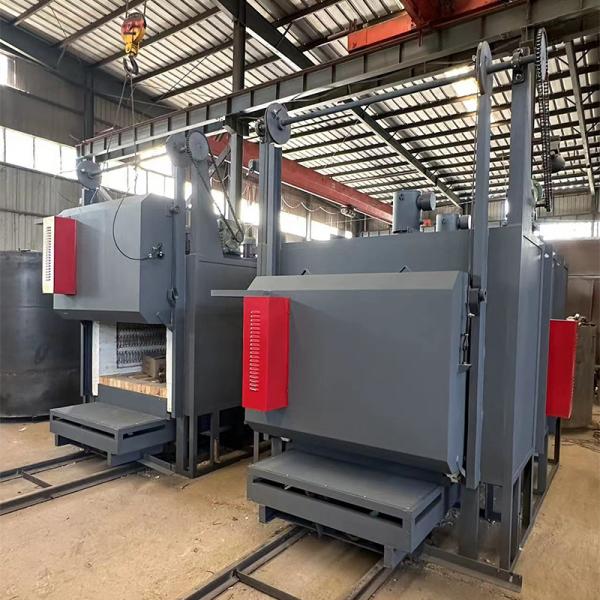

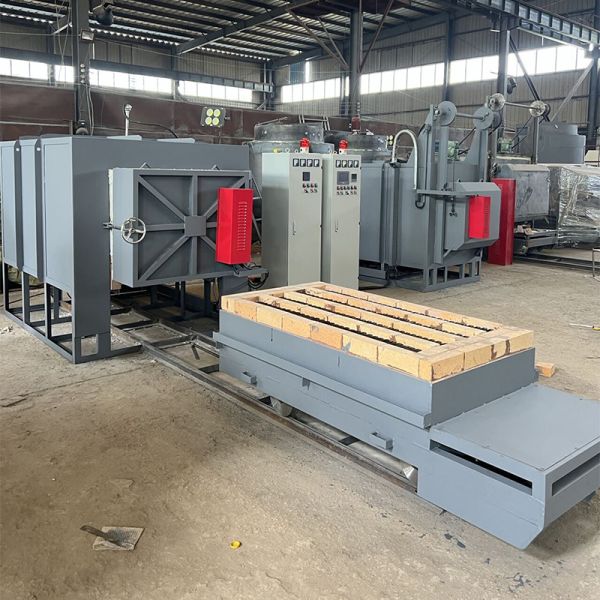

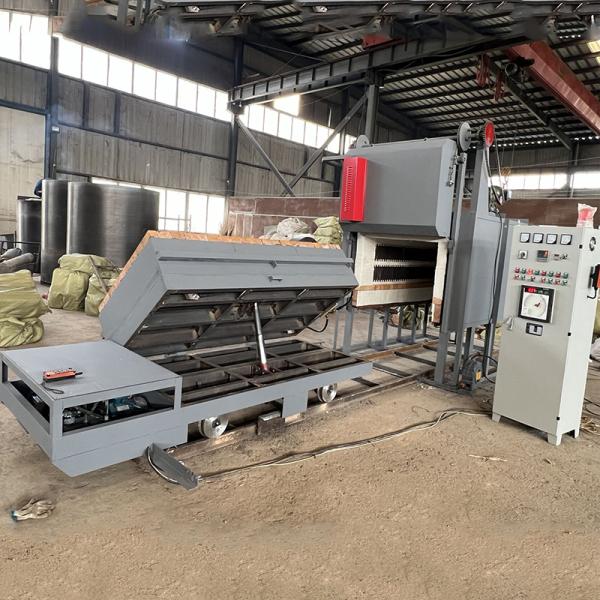

Trolley Heat Treatment Furnace Structure
The trolley furnace consists of furnace shell, furnace linings, furnace door, door hoisting appliance, heating element, bogie and driving mechanism, sealing mechanism, and intelligent electrical control system.
75kw LST-75 Trolley Heat Treatment Furnace 950℃ 1100℃ 2T Capacity 75kw LST-75 Trolley Heat Treatment Furnace 950℃ 1100℃ 2T Capacity
Packaging and Shipping
The resistance furnace is wrapped with plastic film for waterproof protection and then placed on a pallet.
Shipping options include:
  • Free delivery to your shippers in China
  • Direct shipment to any main port in China
75kw LST-75 Trolley Heat Treatment Furnace 950℃ 1100℃ 2T Capacity
Company Introduction
Zhengzhou Lanshuo Electronics Co., Ltd has 15 years of experience in R&D, design, production and sale of high frequency and medium frequency induction heating machines. Our products have earned excellent reputation among clients.
Our product line includes IGBT medium frequency induction heating equipment, IGBT super audio induction heating equipment, CNC quenching machine tool, IGBT medium frequency induction melting furnace, KGPS medium frequency induction melting furnace, open type water cooling tower, closed loop water cooling tower, water chiller, and more.
