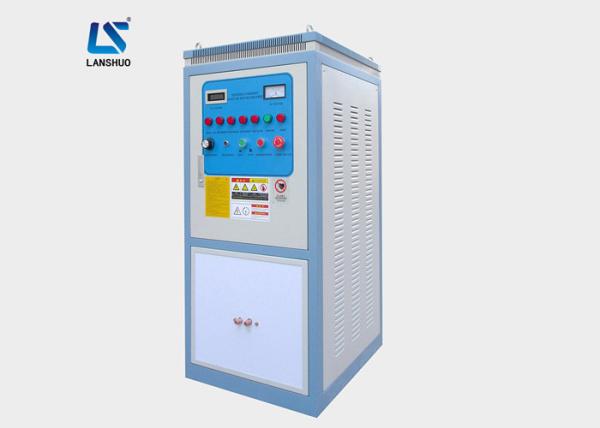

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
Specifications
Brand Name :
ZHENGZHOU LANSHUO
Model Number :
LSW-50
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
4000USD-6000USD
Payment Terms :
T/T
Delivery Time :
5-8WORKING DAYS
Packaging Details :
WOODEN CASE
Rated power :
50KW
Input voltage :
Three phase electricity 380V/50-60HZ
DC voltage :
500V
DC current :
75A
The heating frequency :
18-25KHZ
Air switch :
3*100A
Ground wire :
1mm² copper core wire
Water pressure :
0.15-0.2MPa
Cooling water requirement :
2.5m³water tank or 4T closed cooling water tower
Input power cord :
35mm² copper core wire
Input power control switch :
3*150A
Equipment ground wire :
1mm² copper core wire
Description
50KW Induction Heating Machine(LSW-50)
Rated power 50KW
Input voltage Three phase electricity 380V/50-60HZ
DC voltage 500V
DC current 75A
The heating frequency 18-25KHZ
Air switch 3*100A
Ground wire 1mm² copper core wire
Water pressure 0.15-0.2MPa
Weight(after packing) 140KG
Dimension(after packing) 670mm*820mm*1460mm
Cooling water requirement 2.5m³water tank or 4T closed cooling water tower

Electricity Installation
Input power cord 35mm² copper core wire
Input power control switch 3*150A
Equipment ground wire 1mm² copper core wire

Cooling water installation
Control cabinet water interface quantity water inlet:one water outlet:one
Auxiliary engine water interface quantity water inlet:one water outlet:one
Water pipe specification connecting equipment water intake pipe:internal diameter 25mm
Connecting equipment water outtake pipe:internal diameter 25mm

Pictures:

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital ControlHandheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital ControlHandheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital ControlHandheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control

CE:

Handheld 50KW Induction Brazing Equipment Induction Heating Welding Machine with Digital Control
