Specifications
Brand Name :
Lanshuo
Model Number :
LSZ-45
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD4000---5000 / set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 sets per year
Delivery Time :
3-5 working days
Packaging Details :
plywood case, 2 packages, 1250*840*1000mm / 720*440*630mm
Name :
5kg 10kg 20kg 30kg copper gold iron aluminum melting furnace smelting machine
Application :
smelting iron steel stainless steel copper aluminum
Voltage :
3-phase 380v, 50/60HZ
Rated Power :
45kw
Melting capacity :
3kg 5kg 10kg 20kg 30kg metal
Melting time :
about 30 minutes
Working time :
24 hours
Warranty :
12 months
Description

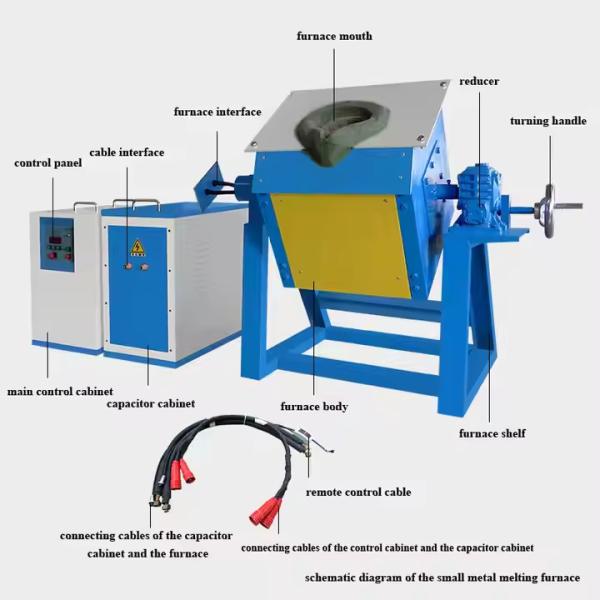

45kw Electric Smelting Furnace Induction Melting Furnace

I. Brief introduction of induction melting furnace

Medium frequency induction melting furnace adopts IGBT as the core inverter. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum

II. Applications of LSZ series induction melting furnace

The LSZ series induction melting furnace can melt the following material:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) precious metal like gold, silver;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum

III. Melting Capacity of LSZ series Induction Melting Furnace:

Model Rated Power Melting Capacity
steel, stainless steel copper, gold, silver aluminum, aluminum alloy
LSZ-15 15kw 3kg 10kg 3kg
LSZ-25 25kw 5kg 20kg 5kg
LSZ-35 35kw 10kg 30kg 10kg
LSZ-45 45kw 18kg 50kg 18kg
LSZ-70 70kw 25kg 100kg 25kg
LSZ-90 90kw 40kg 120kg 40kg
LSZ-110 110kw 50kg 150kg 50kg
LSZ-160 160kw 100kg 250kg 100kg

IV. Main technical parameters of LSZ series induction melting furnace:

Model Power Input current Voltage Oscillation frequency

Connecting wire

 Control switch
LSZ-15 15kw 18A 3-phase 380V, 50/60 Hz 1-15KHz 10mm2 3*40A
LSZ-25 25kw 36A 10mm2 3*60A
LSZ-35 35kw 57A 16mm2 3*80A
LSZ-45 45kw 80A 35mm2 3*120A
LSZ-70 70kw 110A 50mm2 3*150A
LSZ-90 90kw 140A 75mm2 3*225A
LSZ-110 110kw 160A 90mm2 3*225A
LSZ-160 160kw 240A 120mm2 3*300A

V. Main Features of LSZ series Induction Melting Furnace:

(1) IGBT module imported from .

(2) Higher reliability and lower maintenance cost.
(3) 100% Duty cycle. Continuous working is allowed at maximum output power.

(4) Display of heating power, heating current and oscillation frequency.
(5) Simple to install. Installation can be done by unprofessional persons very easily.
(6) Convenient to change crucibles for different melting material.

(7) Continuously heating ability for 24 hours.

VI. Factory Photo:
Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum

VII. Certificates:

Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum

Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum

Factory Price Copper Gold Electric Melting Furnace For Iron Steel Stainless Aluminum
