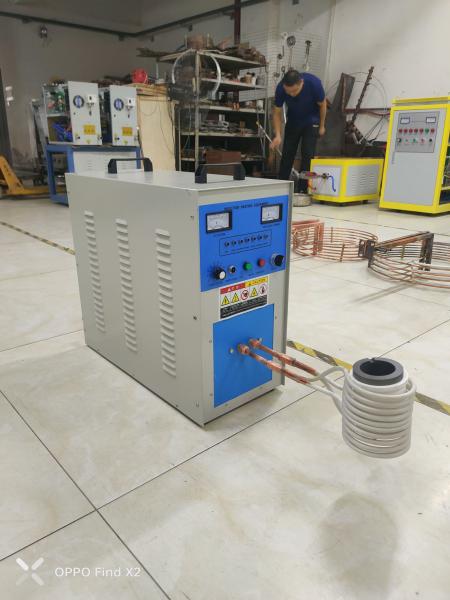

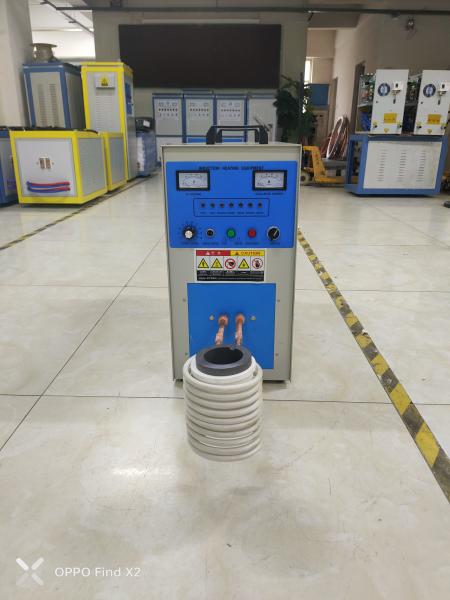

Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Small Glass Melting Furnace Induction Melting Furnace
Specifications
Brand Name :
Lanshuo
Model Number :
LSW-30 Induction Melting Machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 1500-2000 / set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 Set/Sets per Year
Delivery Time :
5-7 working days after receiving advanced payment
Packaging Details :
plywood case
Type :
Induction Melting Machine
Usage :
Heating Melting Brazing Welding
Melting Capacity :
1-5kg Glass
Rated Power :
30kw
Voltage :
380v
Input Voltage :
Triphase 380v 50/60 Hz
Core Element :
IGBT modules
Oscillation Frequency :
25-40Khz
Description
1kg 2kg 3kg 5kg Glass Melting Furnace Industrial Furnace Crucible Furnace
Product Brief Introduction

Our high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

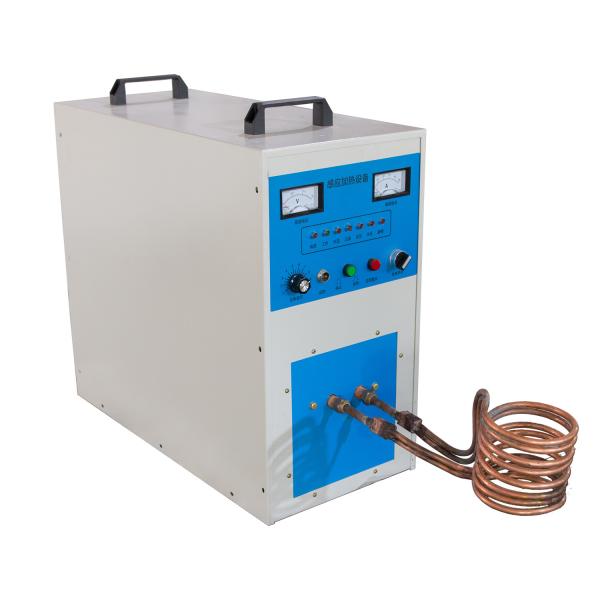

LSW-30 Portable Electric Stainless Steel Induction Melting Machine
Applications
  • Iron, pig iron, cast iron
  • glass, glass bottle
  • Steel, stainless steel, cast steel, carbon steel and bearing steel
  • Precious metals such as gold and silver
  • Copper, brass, bronze
  • Aluminum, aluminum alloy
  • Zinc, lead, tin, magnesium, nickel, titanium
Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters
Model LSW-30KW
Input Power 30KW
Input voltage Three phase 380v 50hz
Voltage range 340V~420V
Oscillation frequency 25-35Khz
Current(max) 52A
Continuous load rate 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Weight 48kg
Dimension 265*600*540mm
Key Features
  • High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
  • Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
  • Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
  • Easy installation: Following the user manual, even non-professional persons can install the machine easily.
  • Stable operation: Complete protection system ensures worry-free operation.
  • Environmentally friendly: Uses electricity, producing minimal waste gas and water.
