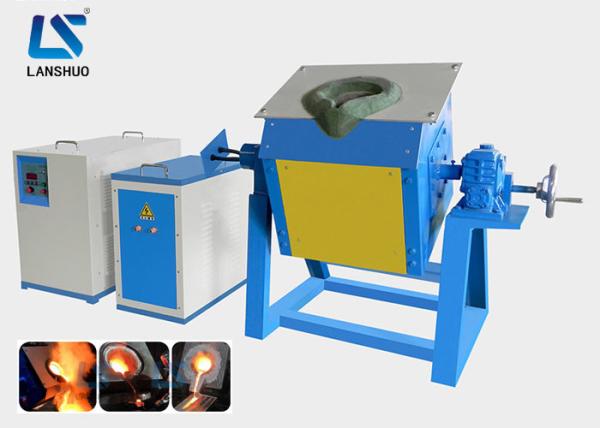

45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
Specifications
Brand Name :
Lanshuo
Model Number :
LSZ-45
Certification :
CE, EAC
Place of Origin :
Zhengzhou, China
MOQ :
1 SET
Price :
USD 3,600-4,600
Payment Terms :
Western Union,L/C,T/T,Paypal
Supply Ability :
3000 set per year
Delivery Time :
5 business days
Packaging Details :
Wooden case
Type :
LSZ-45
Power :
45kw
Frequency :
1-15KHZ
Core components :
IGBT
Condition :
New
Warrenty :
1 year
Application :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant,...
Description

Introduction & Application

Mainly applied for melting, smelting and refining of precious metals, such as platinum, palladium,rhodium, gold, gold powder, gold sand, silver, copper, zinc, etc.

1. Melting of gold, silver, copper, brass and so on.

2. Melting of steel and stainless steel, aluminium and so on.

3. Heat for matching of shaft into hole.

4. Heat of steel or brass rod and nut for forging.

Main Features

1) Heating speed very quick, and adjustable.

2) With induction stirring function itself, heating very evenly which profit for materials pure degree.

3) Output frequency from 1-30 KHz designed for free choice of melting capacities.

4) Very little noise pollution.

5) Max temperature can reach 2500 centigrade degrees.

6) With automatically protection functions: the machine will stop to work when meeting situations like overload, overvoltage, water shortage, short circuit, overheat etc.

7) Easy to operate: the machine will stop to work when meeting situations like overload, overvoltage, water shortage, short circuit, overheat, etc.

Technical Parameters
Type LSZ-45
Rated Power 45KW
Intel Coil Cable 35mm²
Control Switch 3*120A
Ground Cable 2mm²
Cooling water pressure ≥0.2MPA
Cooling water flow ≥10L/Min
Melting capacity (Copper) 50kg
Melting capacity (Gold) 50kg
Melting capacity (Stainless steel/Iron) 18kg
Melting capacity (Aluminium/Aluminium alloy) 18kg
Melting capacity (Silver) 50kg
Working voltage 3 phase 380V, 50-60HZ
Oscillation frequency 1-20KHZ
Output current 80A
Output voltage 70-550V
Weight 36kg, 21kg
Dimension 650*350*550mm, 550*350*500mm
Melting Capacity

Name

Model

Power

Melting Capacity

Steel,iron

Bronze,copper,

silver,gold

Aluminum

induction melting furnace

LSZ-15

15kw

3kg

10

3

LSZ-25

25kw

5kg

20

5

LSZ-35

35kw

10kg

30

10

LSZ-45

45kw

18kg

50

18

LSZ-70

70kw

25kg

100

25

LSZ-90

90kw

40kg

120

40

LSZ-110

110kw

50kg

150

50

LSZ-160

160kw

100kg

250

100

Working voltage: 3-phase 380V, 50/60HZ or customized
Product Images
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg

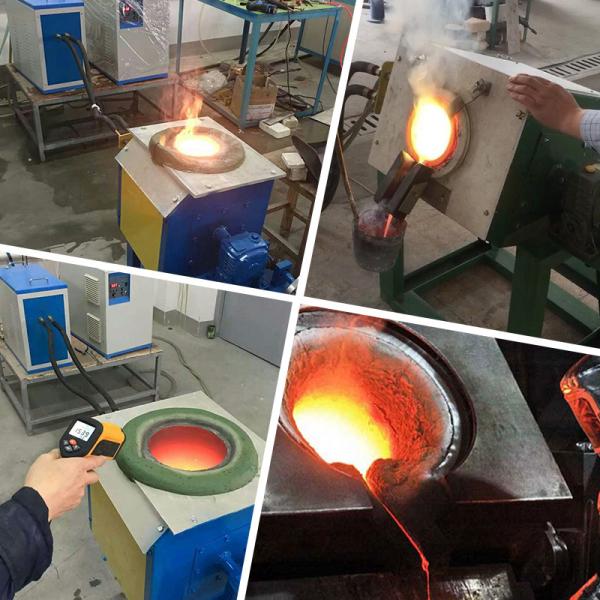

Industrial Applications
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
Workshop Installation
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
Packaging & Shipping

Packaging includes:

  • Machine wrapped with protective film layer
  • Secured in paper box packaging
  • Final packaging in standard export wooden case with protective foam

Shipping options:

  • Free delivery to your China-based shipper
  • Direct shipping to any main Chinese ports available
FAQ

Q1. Are you Manufacturer?

























A: Yes, of course, our factory is in Zhengzhou city, Henan province,China.





















Q2. Do you offer product customization?






A: Yes, we can customize products of various specifications and different performances according to your needs.





Q3. What's the MOQ of trial order?


















A: No limit,We can offer the best suggestions and solutions according to your condition.

















Q4. How are your products' quality?














A: The products will be strictly inspected before shipment, so the quality could be guaranteed.









Q5. How long does your shipping cycle take?

A: The delivery time varies according to the type, specification and quantity of the product you ordered. Generally, we have stocks for regular commodities. The shipping time is usually within 7 to 15 days. For electric arc furnace products, the construction period will be determined according to your customized requirements and is generally completed within 45 days. For specific times,please contact us for details.

Q6. Logistics problem with delivery?









A:You can choose your own logistics company, and of course we can also provide you with logistics services.






Q7. How is the price of your products?

A:We guarantee to provide the products you need with high standards and the most competitive prices. Regarding the specific product prices, please get in touch with us and we will give you a quotation as soon as possible.
