Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Steel Bar Industrial Heating Equipment For Hot Forging
Specifications
Brand Name :
Lanshuo
Model Number :
LSW-200
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000-10000 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 sets per year
Delivery Time :
7-10 working days after receiving advanced payments
Packaging Details :
plywood case, 2 packages
Type :
Induction Heating Machine
Application :
Heating Steel Bar / Billets / Steel Tubes / Steel Rods
Rated Power :
200kw
Working Voltage :
3-phase 380V, 50/60HZ
Max Input Current :
320A
Oscillation Frequency :
2-6KHZ
Duty Cycle :
100%
Description

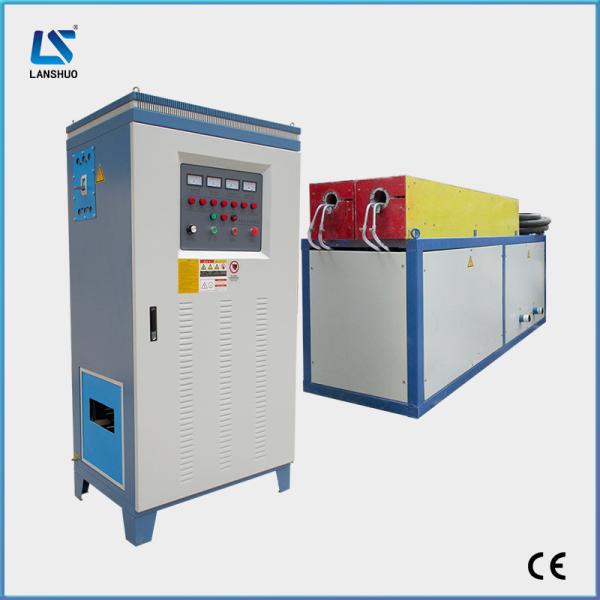

200kw Steel Bar Industrial Heating Equipment for Hot Forging

1. Technical Parameters of LSW-200 IGBT induction heating machine:

Model LSW-200
Working Voltage 380V, 50/60HZ
Max input power 200kw
Oscillation frequency 2-6KHZ
Duty cycle 100%
Cooling water flow 45L/Min,0.2MPa
Usage metal bar / rod / tube heating

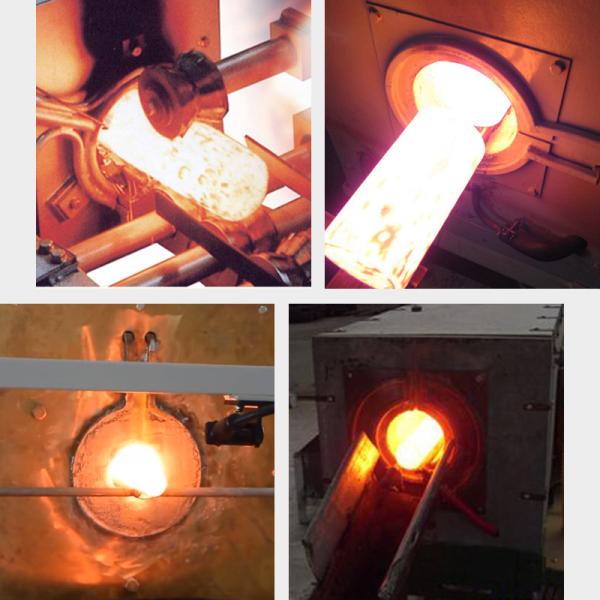

2. Applications of IGBT induction heating machine:

(1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum etc heating.

(2) Forging: whole and partial induction forging for metal bar.

(3) Work piece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.

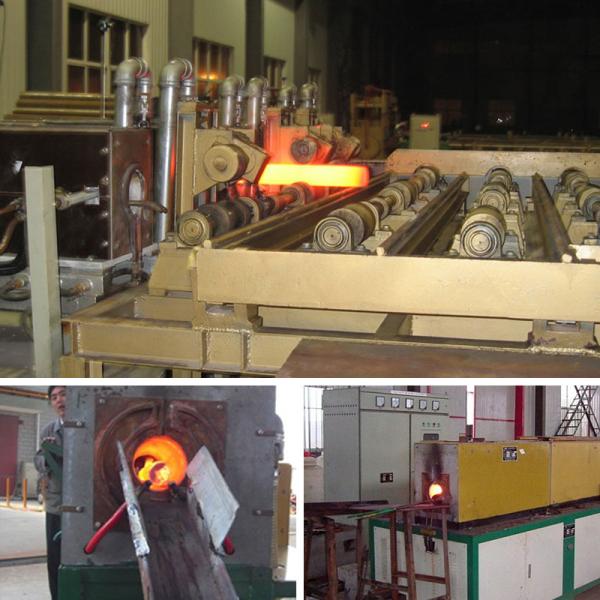

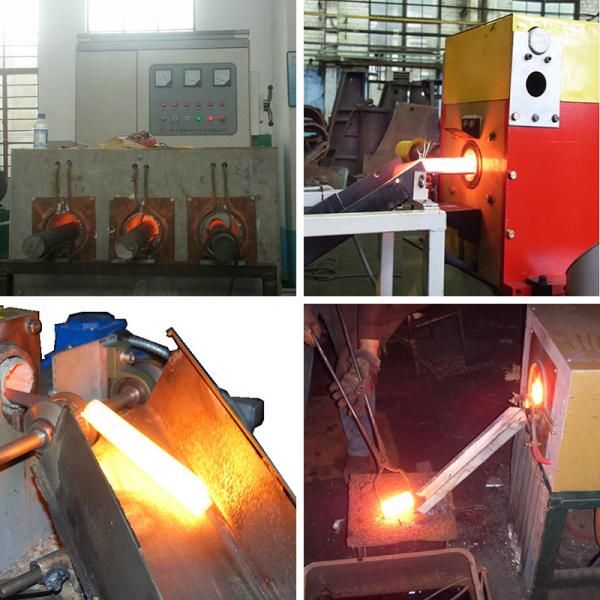

3. Specific application for the induction heater:

(1) bolts and nuts forging and hot upsetting

(2) pipe induction forging and forming

(3) auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating

(4) oxygen bottle forging

(5) rivet heating

(6) long / round / square / angle bar and billet heating, etc.

Steel Bar Industrial Heating Equipment For Hot Forging

Steel Bar Industrial Heating Equipment For Hot Forging

4. Main Features of IGBT induction heating machine:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little waste gas and water.

5. Related Products:
Steel Bar Industrial Heating Equipment For Hot Forging

KGPS Melting Furnace LSZ Melting Furnace Cooling Tower
Steel Bar Industrial Heating Equipment For Hot Forging Steel Bar Industrial Heating Equipment For Hot Forging Steel Bar Industrial Heating Equipment For Hot Forging

6. Certificates:

Steel Bar Industrial Heating Equipment For Hot ForgingSteel Bar Industrial Heating Equipment For Hot Forging
