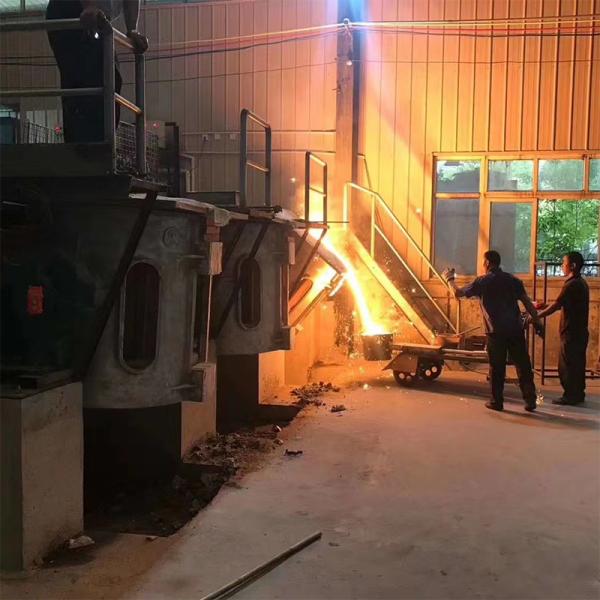

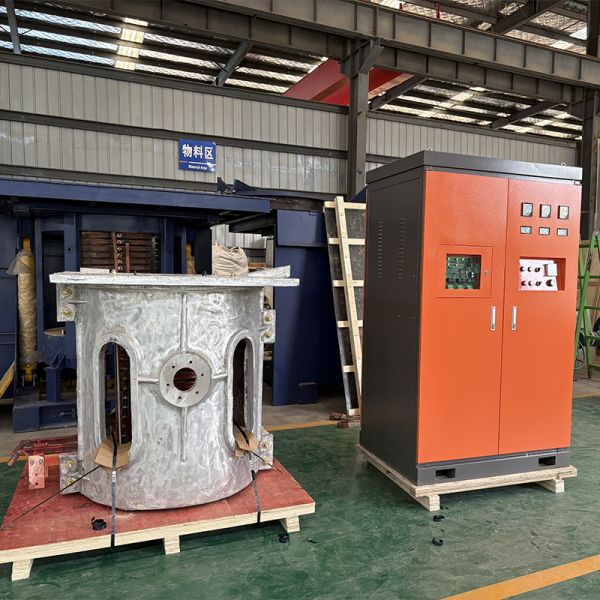

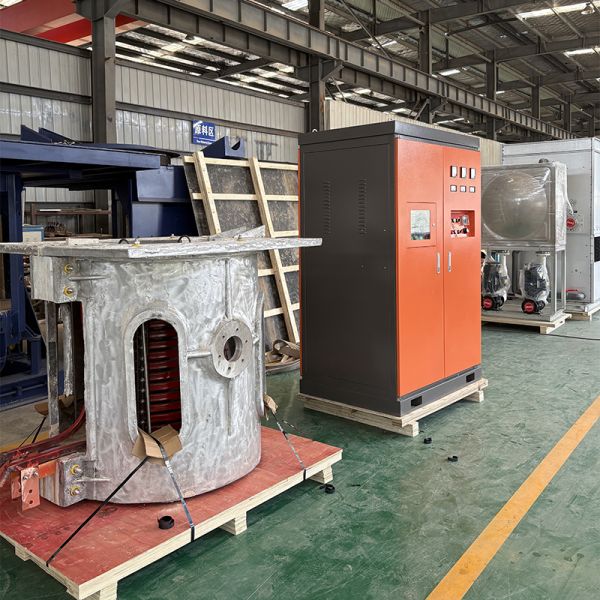

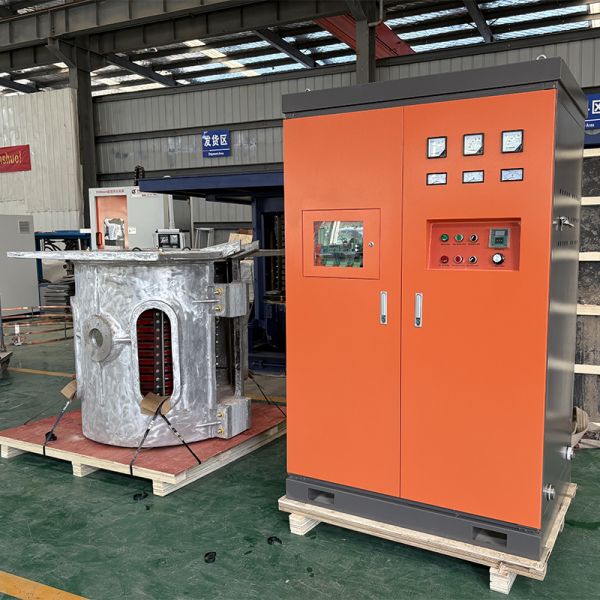

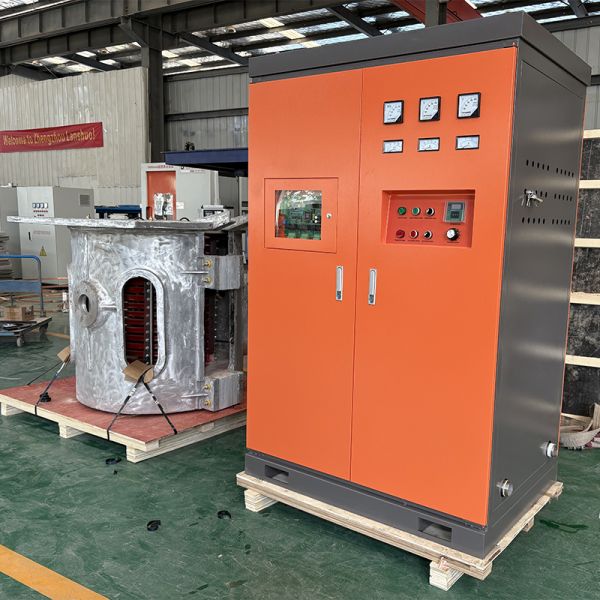

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
Specifications
Brand Name :
Lanshuo
Model Number :
KGPS-400 Induction Melting Furnace
Certification :
CE ISO EAC
Place of Origin :
China
MOQ :
1 set
Price :
USD 10000-12000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
7-10 working days
Packaging Details :
plywood case, 3 packages, about 8cbm, about 2T
Type :
Induction Melting Furnace
Power Source :
electricity
Melting Material :
500kg Iron Steel Copper Aluminum Lead Gold Silver
Rated Temperature :
1800°c
Rated Power :
400KW
Voltage :
3-phase 380v, 50/60HZ
MF Frequency :
1-2KHZ
Medium Voltage :
750v Phase
DC Voltage :
500V Phase
DC Current :
650A Phase
Core Element :
thyristor / SCR
Description

100kg 250kg 500kg iron steel copper bronze aluminum scrap melting furnace industrial furnace

1. Brief Introduction of Medium Frequency Induction Melting Furnace:

Through long-term practical test, constant power (energy-saving) Intermediate frequency induction melting furnace has been widely praised among customers. What’s more, our melting furnace has made some improvements based on its original type, and its property is becoming more excellent.

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace

2. Features of KGPS medium frequency thyristor-based induction melting furnace:

a. High melting rate.

b. Good-quality molten steel, high casting product yield.
c. High power factor. During the machine’s operation, the power factor can reach over 97%.

d. No harm to the power gird.

e. Low power consumption, saving over 10% energy.

f. High start-up success rate. Under any load, the start-up success rate is 100%.

g. The main control panel adopts plug-in connector, easier maintenance.
h. Simple to install. Installation can be done by unprofessional workers very easily.
i. The melting furnace adopts series thyristor, making the SCR damage rate to a minimum.


3. Technical Parameter of 400kw Medium Frequency Induction Melting Furnace:

Model KGPS-400
Rated Power 400kw
Rated Capacity 0.5T
Matching transformer's capacity 500KVA
Voltage 380V, 50/60HZ
MF Frequency 1-2KHZ
Medium Voltage 750V Phase
DC Voltage 500V Phase
DC Current 650A Phase
Rated Temperature 1800°C
Closed Loop Water Cooling Tower LSN-40B

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace

4. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace

5. Certificates

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace

500kg Iron Steel Scraps Smelting Furnace Induction Melting Furnace
