Specifications
Brand Name :
OURUIDA
Model Number :
DSP-80KW
Certification :
CE ,ISO, ROHS,GSG
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, MoneyGram
Supply Ability :
1000SETS /Month
Delivery Time :
1-5days
Packaging Details :
Export Wooden box Packaging
Description

Best Price of Portable IGBT induction Bolt heating Machine With Indstrial chiller on turbines (hydraulic, steam, gas)

Industrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam Gas

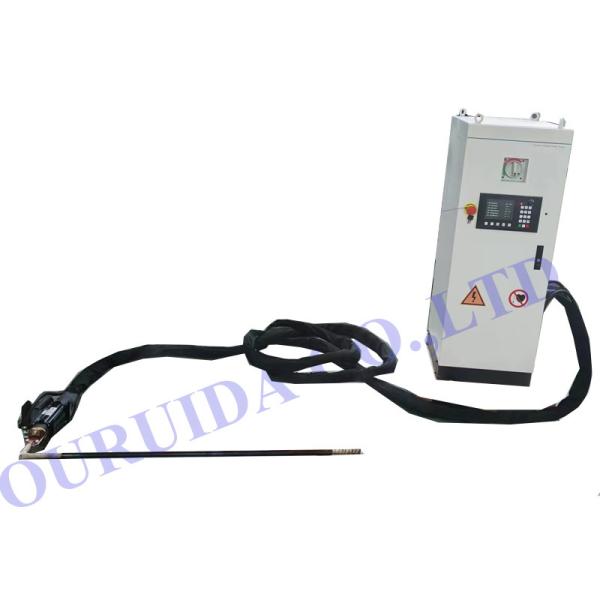

Induction Heating Bolt machine :

Induction bolt heating involves heating drilled stud bolts to obtain elongation. Thus, it only takes a few minutes to heat them evenly and safely. This process is 2 to 3 times faster than conventional heating means such as heating rods
A proven method
In 2018we launched our first machines and our first interventions. Since then, we have traveled across Europe and even the world: Japan, China, USA, Mexico, Turkey, UK, France…

Our main induction tightening operations are carried out on turbines (hydraulic, steam, gas) and compressors of all sizes.

Industrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam GasIndustrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam Gas

The advantages of our induction bolt heating service

Easy to set up and use: all you need is a 380 -480 volts 32A outlet
Light & compact design,
Can connect industrail chiller Cooling system with machine
Timer integrated to control heating time
User-friendly, easy to operate with automatic or manual power regulation
3-80meters length of coaxial cable to access both sides of the turbine
No exceeding of the Curie point (no material transformation)
No burning risk as inductor remains cold
All sizes inductors manufacturing, in 72 hours on demand
Only heat the center of the bolt, for accurate tightening and to minimize heat dispersion
Quick heating time

The techincal parameters of induction heating bolt machine :

Industrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam Gas

​

Type DSP-80KW
Rated Output Power 80KW
Rated Output Frequency 10-40KHZ
Can expand frquency 1-100khz
Overload Heating time 45%/10min
Power Adjust Arrange 1.5-100%
Coaxial Flexible cable length 5M,6M...10M,20M,30M,40M,50M
Input Voltage 360-420v 50-60hz
Max power 80kw
Protection Level IP54
Environment Temperature +5c--+50C
Cooling water flow 31L/MIN
Cooling water Pressure 4-8Bar
Weight About 180kg
Industrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam GasIndustrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam GasIndustrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam GasIndustrial Chiller Equipped Portable IGBT Induction Bolt Heating Machine For Turbines Hydraulic Steam Gas

​Induction heating machine applications:
