Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
Specifications
Brand Name :
OURUIDA
Model Number :
DSP-B80KW
Certification :
CE ,ISO, ROHS,GSG
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, MoneyGram
Supply Ability :
1000SETS /Month
Delivery Time :
1-5days
Packaging Details :
Export Wooden box Packaging
Size :
Customized
Cooling Water Pressure :
0.2-0.3MPa
Heating Mode :
Continuous or Pulse
Work Voltage :
380VAC*3Phase 50-60HZ
Cooling Method :
Water cooling
Main Components :
IGBT
Cooling Time :
0-99s
Energy Efficiency :
High
Heating Speed :
High Speed,
Remote Control :
Communicate
Applications :
Heating to All sizes bolt (Disassembly /assembly bolts)
Description

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.(Disassembly /assembly bolts):

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.

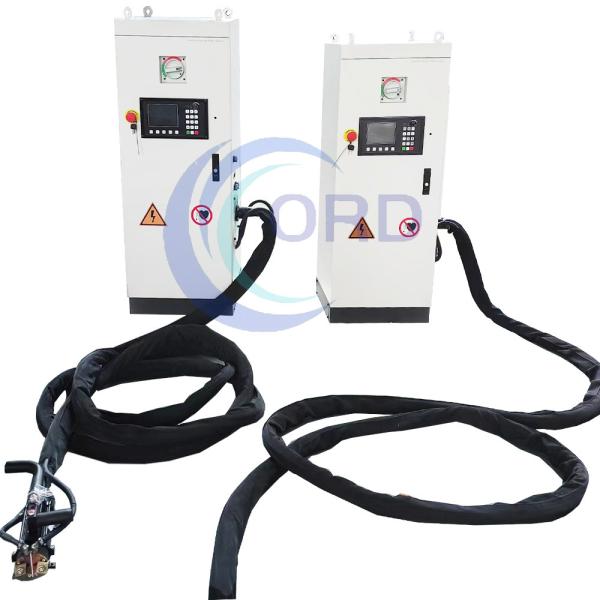

INDUCTION BOLT HEATING MACHINE :

Induction bolt heating involves heating drilled stud bolts to obtain elongation. Thus, it only takes a few minutes to heat them evenly and safely. This process is 2 to 3 times faster than conventional heating means such as heating rods.

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.

The advantages of our induction bolt heating machine

1.Our factory specializes in design and customization of bolt heating equipment
2.Acoording to client;s bolt/ workpipes to design inductor
3.24/7 service on-site
4.Easy to set up and use: all you need is a 380-480 volts
5.Light & compact design.
6.Cooling system usually we are advies industiral chiller
7.Timer integrated to control heating time
8.User-friendly, easy to operate with automatic or manual power regulation
9.3-80 meters length of coaxial cable to access both sides of the turbine
10.No exceeding of the Curie point (no material transformation)
11.No burning risk as inductor remains cold
12.All sizes inductors manufacturing, in 48 hours on demand
13.Only heat the center of the bolt, for accurate tightening and to minimize heat dispersion
14.Quick heating time

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.

THE TECHNICAL PARAMETER OF INDUCTION BOLT HEATING MACHINE :

​

Type DSP-80KW
Rated Output Power 80KW
Rated Output Frequency 10-40KHZ
Can expand frquency 1-100khz
Overload Heating time 45%/10min
Power Adjust Arrange 1.5-100%
Coaxial Flexible cable length 3-80M
Input Voltage 360-440v 50-60hz
Max power 80kw
Protection Level IP54
Environment Temperature +5c--+50C
Cooling water flow 21L/MIN
Cooling water Pressure 4-8Bar
Weight About 120kg
Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.

​Package of induction bolt heating machine

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.
