Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Specifications
Price :
4000
Water Temperature Protection Point :
40centidegree
HS Code :
8514400090
Trademark :
ORD
Size :
Main Parts:800*600*800mm Transformer: 650*450*600m
Weight :
Mainparts:150kg Transformer:105kg
Model NO. :
SF-100KW
Production Capacity :
10, 000sets
Transport Package :
Plywood Package
Specification :
CE, SGS, ISO
Power :
100kw
The Range of Operating Voltage :
340-430V AC
Frequency :
20-50kHz
Operation :
Automatic and Manial
Variable Transfromer :
Different Transformer Ratios
Brand :
Ord
Input Current :
150A
Work Voltage :
380V, 400V, 415V, 440V, 480V
Origin :
China
Structure :
Vertical Type
Timing (Heat Time,Retain Time,Cool Time) :
1-99s
MOQ :
1
Description

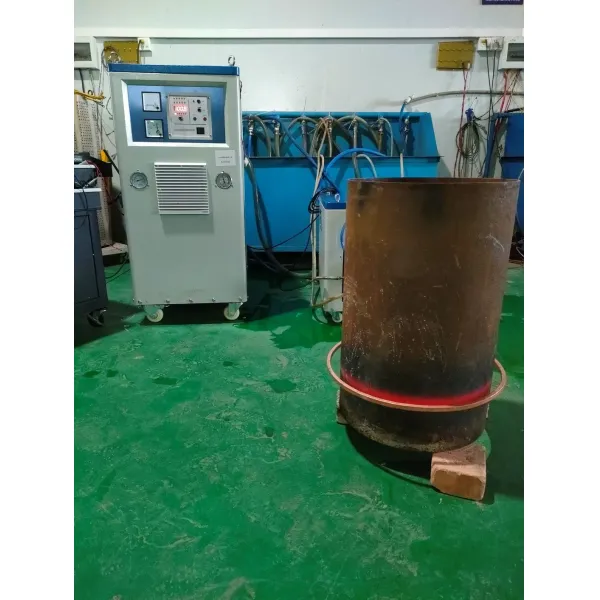

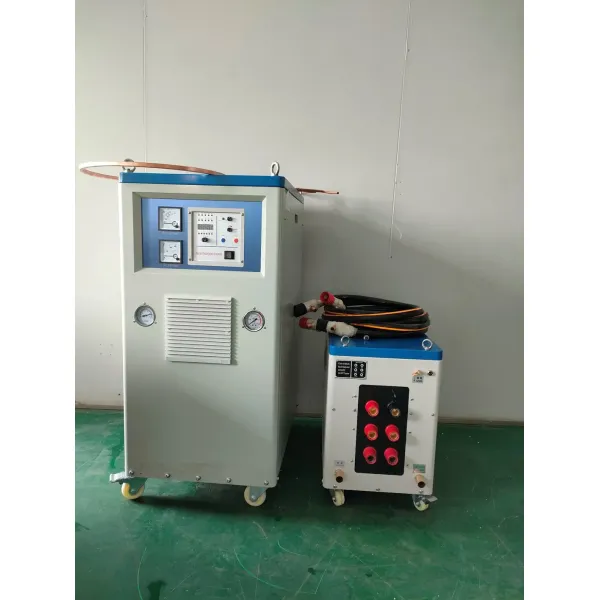

SF-100KW Super Audio Induction Heating Machine
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)

Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Variable  transformer ratios, 8:1,10:1,12:1,14:1,16:1, 8:2,10:2,12:2,14:2,16:2 can match different length induction coil, suitable large range.

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Type SF-100AB
 Work Power  3*380v/415v/440v/480v 50-60hz
 The range of operating voltage  340-430V AC
 Output power  100KW
 Input current  150A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 22L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:150Kg   Transformer:105kg
 Size Main Parts:800*600*800MM
Transformer: 650*450*600MM
Â
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Sf-100kw Low Price Ultrasonic Induction Heating Machine (Variable Transformer)
Â
