120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
Specifications
Model Number :
SF-120KW
Work Voltage :
380V, 400V, 415V, 440V, 480V
Production Capacity :
10, 000sets
Delivery Time :
6DAYS
Size :
Main Parts:800*600*800mm Transformer: 650*450*600m
Transport Package :
Plywood Package
Origin :
China
Supply Ability :
1000SETS/ MONTH
Water Temperature Protection Point :
40centidegree
Specification :
CE, SGS, ISO
Packaging Details :
PLY WOODEN BOX PACKAGE
Weight :
Mainparts:150kg Transformer:105kg
Cooling Mothed :
Water Cooling System
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Timing (Heat Time,Retain Time,Cool Time) :
1-99s
Operation :
Automatic and Manial
HS Code :
8514400090
Price :
4000
Brand Name :
OURUIDA
Model NO. :
SF-120KW
Output Power :
120KW
Variable Transfromer :
Different Transformer Ratios
Fluctuating Frequency :
20-50khz
MOQ :
1
Trademark :
ORD
Certification :
CE/ ROHS/ SGS
The Range of Operating Voltage :
340-430V AC
Duty Cycle :
100% (40degree room temperature)
Place of Origin :
CHINA
Input Current :
180A
Cooling Water Flow :
0.15 Mpa 22L/Min
Description
IGBT Induction Heating Machine with CE, RoHS, ISO and So on Certificates
China Factory price supply IGBT Induction heating machine with CE, ROHS, ISO and so on certificates.

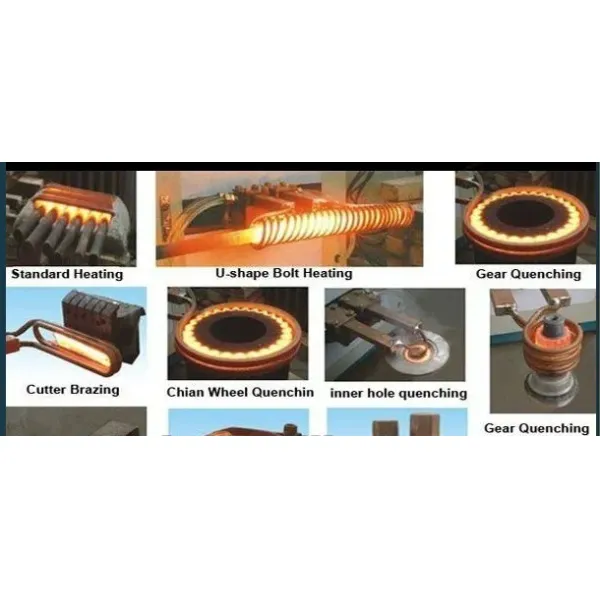

Applications
  • Hot forming equipment (hot forging, dithermic forming, hot rolling, hot upsetting)
  • Welding (brazing, hot fit, hot fusion)
  • Heat treatment (quenching, annealing, tempering, quenching and tempering)
  • Smelting (gold, silver, copper, iron, stainless steel and other metals)
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
Key Advantages
  • More than 21 years experience, stable and good performance
  • CE certificated
  • Cooperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
  • Suitable for a large range: heating, quenching, forging, melting, soldering and more
  • Variable transformer ratios: 8:1,10:1,12:1,14:1,16:1, 8:2,10:2,12:2,14:2,16:2 can match different length induction coil, suitable for large range applications
Main Characteristics
  • IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost
  • 100% Duty cycle, continuous working is allowed at maximum power output
  • Display of heating power and heating current and oscillating frequency
  • Simple to install, Installation can be done by unprofessional person very easily
  • Light weight
  • Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability
Technical Specifications - Model SF-120AB
Parameter Specification
Work Power 3*380v/415v/440v/480v 50-60hz
The range of operating voltage 340-430V AC
Output power 120KW
Input current 180A
Fluctuating frequency 20-50khz
Timing (Heat time, Retain time, Cool time) 1-99S
The flow rate of cooling water 0.15 Mpa 22L/Min
Water temperature protection point 40°C
Duty cycle 100% (40°C room temperature)
Weight Main parts: 150Kg | Transformer: 105kg
Size Main Parts: 800*600*800MM | Transformer: 650*450*600MM
