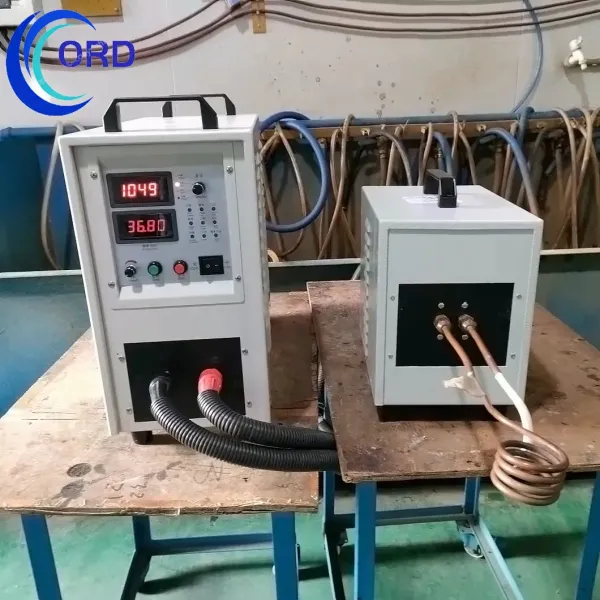

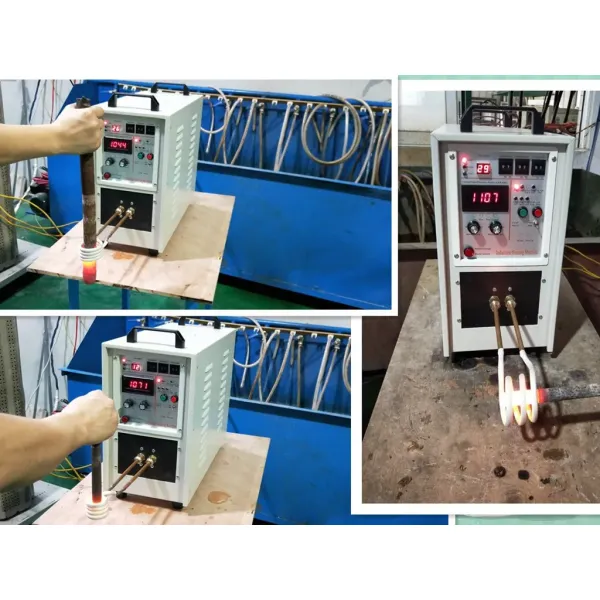

Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Specifications
Price :
1000
Brand :
Ord
Water Temperature Protection Point :
40c
MOQ :
1
Product Name :
Induction Heating Equipment
Working, Retail, Cooling Time :
1-99s
Principle :
Mixing Heat Exchanger
Heat Transfer Surface :
Tubular Heat Exchanger
Specification :
CE, ISO
Structure Material :
Metal Material
Application :
Heater, Cooler, Vaporizer, Condenser
Origin :
China
Main Use :
Heating, Quenching, Forging, Melting, Welding
Structure :
Vertical Type
Trademark :
ORD
Frequency :
30-80kHz
Cooling System :
Water Cooling System
Production Capacity :
10, 000sets
The Flow Rate Wate :
≥19L/Min
Power :
25kw
Work Voltage :
380V, 400V, 415V, 440V, 480V
Transport Package :
Wooden Box
HS Code :
8514400090
Description
LOW price and best quality IGBT Control High Frequency induction preheating machine for preheating steel pipe and plate

Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and PlateLow Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate

Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate


Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.

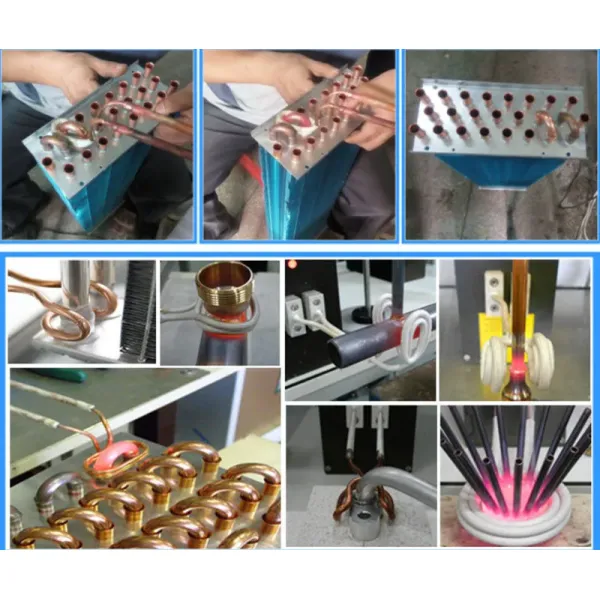

4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
6 IGBT
7 IXYS Bridge
8 DELIXI Switch

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and PlateLow Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and PlateLow Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and PlateLow Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and PlateLow Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Low Price and Best Quality IGBT Control High Frequency Induction Preheating Machine for Preheating Steel Pipe and Plate
Type HF-25KW
Work Power 3*380v/415v/440v/480v 50-60hz
The range of operating voltage 340-430V AC
Output power 25KW
Input current 28A
Fluctuating frequency 30-80khz
Timing (Heat time,Retain time,Cool time) 1-99S
The flow rate of cooling water 0.15 Mpa 18L/Min
Water temperature protection point 40centidegree
Duty cycle 100% (40degree room temperature)
Weight Mainparts:38Kg Transformer: 25
Size Main Parts:600*350*600MM
Transformer: 550*300*500MM

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
