Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Specifications
Brand :
Ord
Work Power :
3*380V/415V/440V/480V 50-60Hz
Model NO. :
HF-25KW
Trademark :
ORD
Origin :
China
MOQ :
1
Price :
1
Working Application :
Heating, Forging, Quenching, Melting, Annealing
Production Capacity :
10, 000sets
Timing (Heat Time,Retain Time,Cool Time) :
1-99s
Water Temperature Protection Point :
40centidegree
Transport Package :
Wooden Box
Specification :
CE, SGS, ISO
Frequency :
30-80kHz
Input Current :
25A
Weight :
Mainparts:42kg
Size :
Main Parts:640*280*550mm
HS Code :
8514400090
The Range of Operating Voltage :
340-430V AC
Structure :
Vertical Type
Power :
25kw
Description

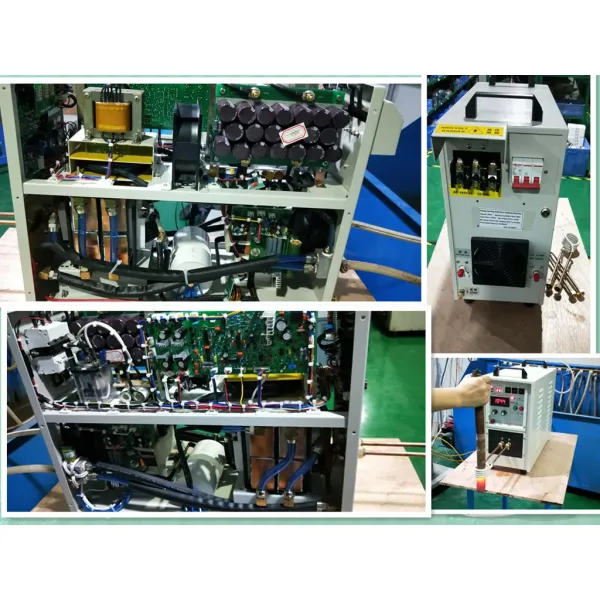

Automatic induction heater for smelting ,brazing forging and annealing with metals
Induction Heating Machine:
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing

Advantage:
1 More than ten years experience,stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4Â Simple to install, Installation can be done by unprofessional person very easily;
5Â Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

 Type HF-25AB/25A
 Work Power  3*380v/415v/440v/480v 50-60hz
 The range of operating voltage  340-430V AC
 Output power  25KW
 Input current  25A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 9L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:42Kg
 Size Main Parts:640*280*550mm
Â
Automatic Induction Heater for Smelting, Brazing Forging and AnnealingAutomatic Induction Heater for Smelting, Brazing Forging and Annealing
Automatic Induction Heater for Smelting, Brazing Forging and Annealing
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.Â
2. Inquiry and consulting support.Â
3. Sample testing support.Â
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.Â
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
