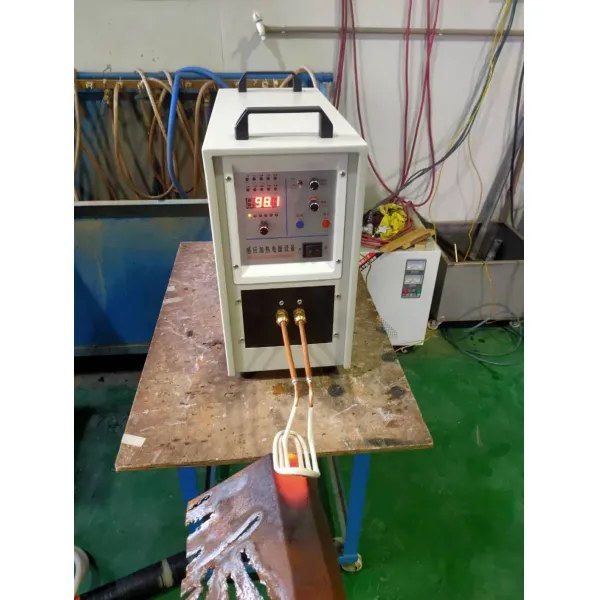

Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Specifications
Frequency :
30-100kHz
Input Current :
36A/13A
Operation :
Automatic and Manual
Trademark :
ORD
MOQ :
1
Structure :
Vertical Type
HS Code :
8514400090
Principle :
Induction Heating
Work Power :
Single Phase 220V 50-60Hz / 380V
Size :
640*280*550mm
Structure Material :
Metal Material
Production Capacity :
10, 000sets
Heat Transfer Surface :
Induction Heating
Model NO. :
HF-15KW
Power :
15kw
Brand :
Ord
Duty Cycle :
100% (40degree Room Temperature)
Origin :
China
Price :
600

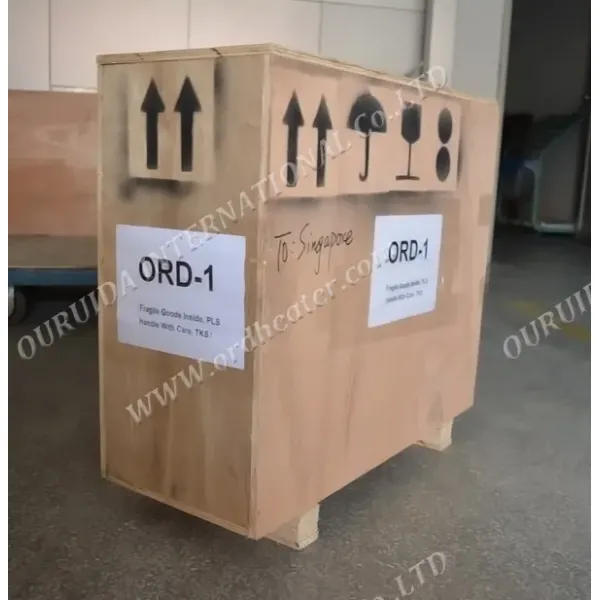

Transport Package :
Wooden Box
Specification :
CE, SGS, ISO
Description
High frequency induction quenching machine (15KW)

Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine
Hf-15kw High Frequency Induction Welding Machine

Advantage:
1 IGBT
2 DELIXI Air Switch
3 Phase Bridge ( Germany IXYS)
4 Filter Capacitor (Janpan chemi-con)
5 All screws are Stainless Steel
6 More than 19 year experience, rich experience, stable performance, good quality.
7 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
8 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Applications:

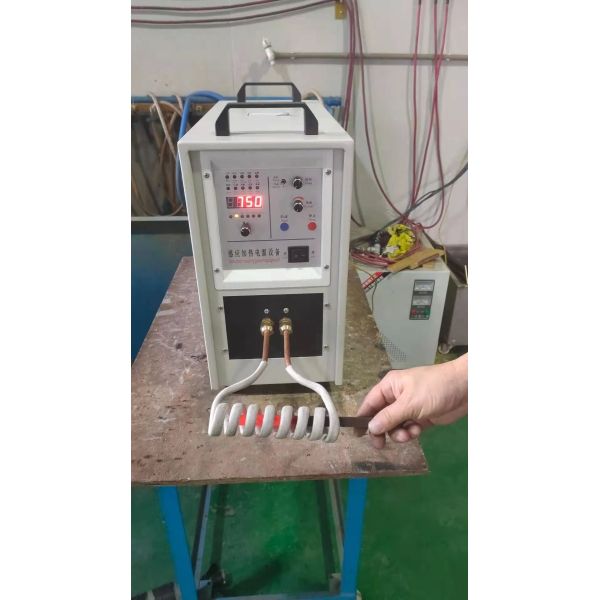

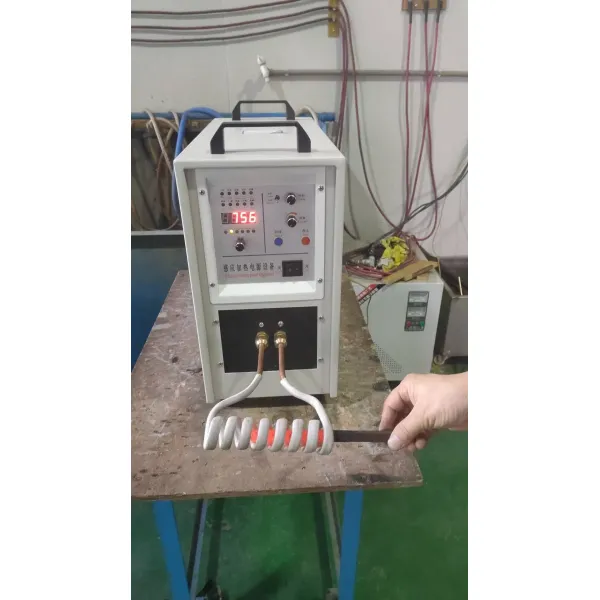

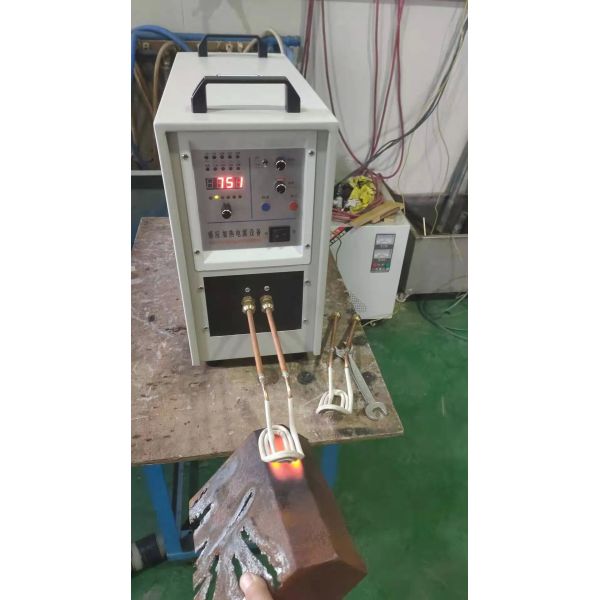

Drill tip heat shaping
Heat treatment
Quenching
Forging
Melting
Soldering and brazing
Welding
Hf-15kw High Frequency Induction Welding Machine

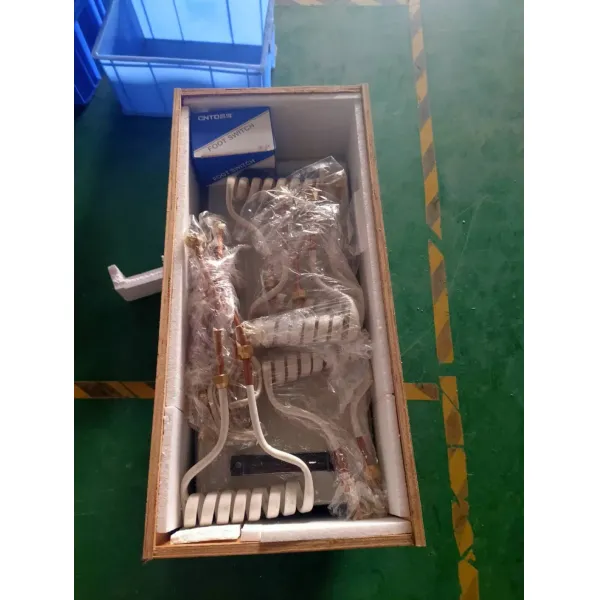

Packing Hf-15kw High Frequency Induction Welding Machine
Type HF-15AB/15A
Work Power single phase 220v 50-60hz
The range of operating voltage 180-250V AC
Output power 15KW
Input current 13A
Fluctuating frequency 30-100khz
Timing (Heat time,Retain time,Cool time) 1-99S
The flow rate of cooling water 0.15 Mpa 7.6L/Min
Water temperature protection point 40centidegree
Duty cycle 100% (40degree room temperature)
Weight Mainparts:35Kg
Size Main Parts:640*280*550mm
Hf-15kw High Frequency Induction Welding Machine
