Specifications
MOQ :
1
Price :
5000
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000
Delivery Time :
7-15days
Packaging Details :
Export wooden boxes
Model NO. :
MF-100KW
Range of Applications :
Life
Type :
Tilt Type
Usage :
Steel Molding
Fuel :
Electric
Capacity :
60kg
Power :
120kw
Frequency :
1-15kHz
Application :
Melting Iron, Steel, Copper, Stainless Steel
Melting Time :
25minutes-30minutes
Working Voltage :
380V/415V/440V/480V*3phase 50-60Hz
Input Current :
180A
Working Mode :
Tilt Melting Furnace
Cooling System :
Water Cooling System
Feature :
High Effiency and Energy Saving
Transport Package :
Wooden Box
Specification :
CE, SGS, ISO
Trademark :
ORD
Origin :
China
HS Code :
8514400090
Production Capacity :
10, 000sets
Description
Manufacture Sales Induction Scrap/recycled metals melting equipment

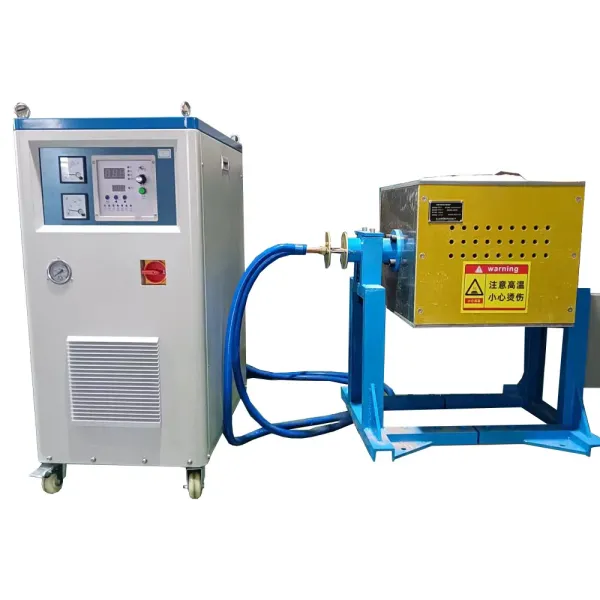

120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment
1. Main characteristics
  1. The New IGBT Inverting technologies of fourth generation been used; special for steel, Stainless steel, iron, melting, Higher reliability and lower maintenance cost. Small size, light weight. Compare with the SCR machine, can save about 10-15% eletricity.
  2. Low Frequency, Fast Melting.high melting efficiency.
  3. Electric remote control tilt the furnace, it is easy to pour out of the metal liquid and it is very safe.
  4. Continuously heating ability for 24 hours.
  5. Low power consumption, with electromagnetic grinding capability, providing uniform smelting.
  6. It has the function display of current, voltage, Frequency, making the working condition easily perceived, and giving guidance to induction coil design, capacitance control.
120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment
2. Specification
TypeMF-120KW
Work power3*380V/415V,440V,480V
The range of operating voltage340V-430V
Output power120 KW
Capacity60-80KG
Input current180A
Average Melting time20-30minutes
Fluctuating frequency1-15KHZ
The flow rate of cooling water0.08-0.16 Mpa 28L/Min
Water temperature protection point50ºC
Duty cycle100%(40degree room temperature)
Weight:Main parts: 208KG/ with package 228kg
Furnace WeightAbout 300KG /with package 330kg
Size:620*650*1120mm/
With package:650*680*1250mm
Furnace Size750*970*850mm
With package:780*1000*980MM
120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment
Pre-sale service:
  1. recommend the most suitable machine for customers, according to their requirements.
  2. Inquiry and consulting support.
  3. Sample testing support.
  4. View our Factory.
In-sale service:
  1. Strictly manufacture the machine, according to relevant technical standards.
  2. Take run test, according to relevant equipment test run regulations.
  3. Strictly check up the machine, before delivery
  4. Delivery on time.
After-sale service:
  1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
  2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
  3. If any big quality problems occurs out of the guarantee period, we will send maintenance technician to provide visiting service after checking with the customer and charge for a favorable price.
  4. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  5. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.

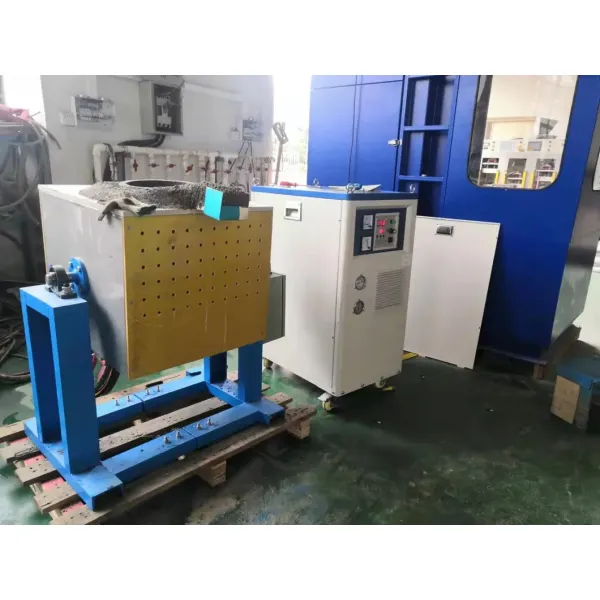

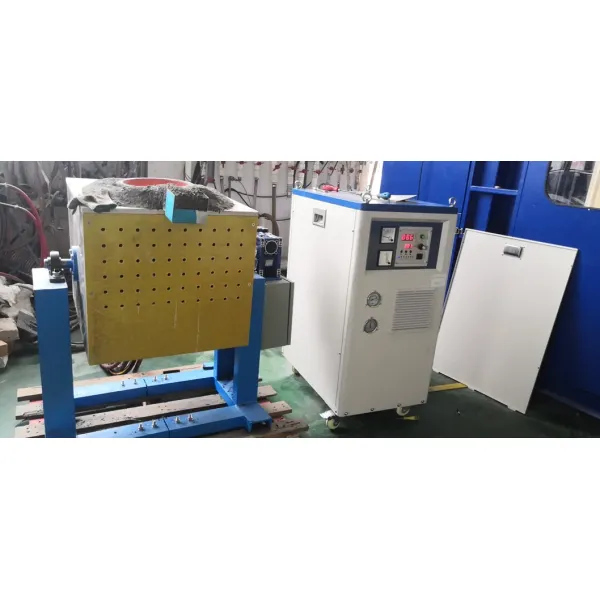

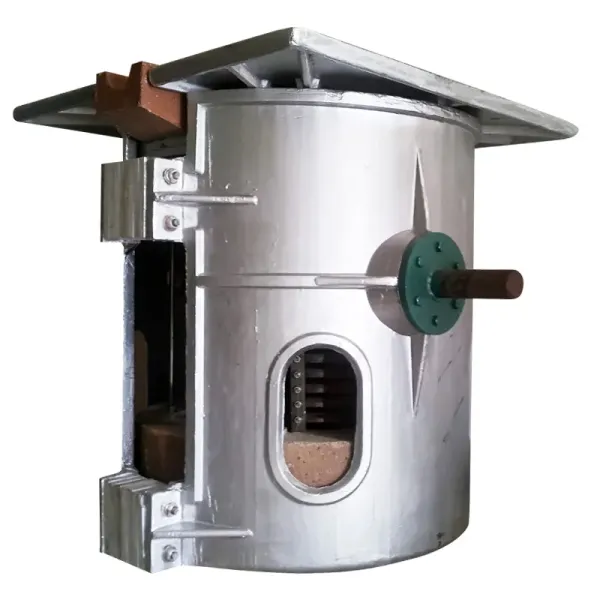

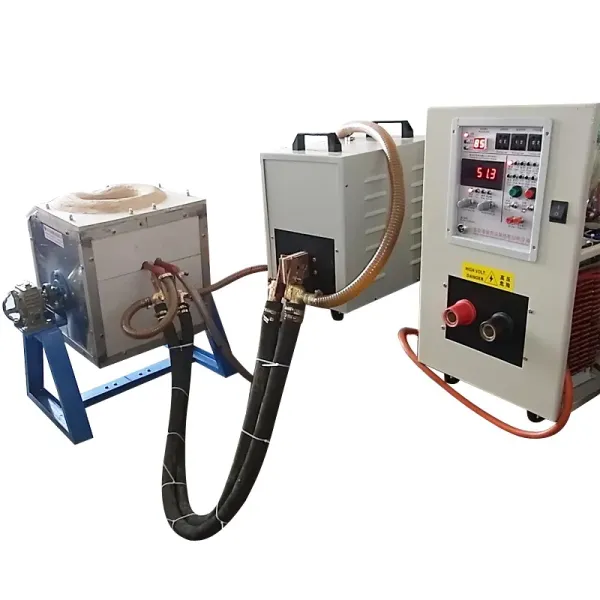

OTHERS MACHINES FOR MELTING PHOTOS:
120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment120KW Power 60kg Capacity Water Cooling System Induction Melting Furnace for Metal Melting Equipment
