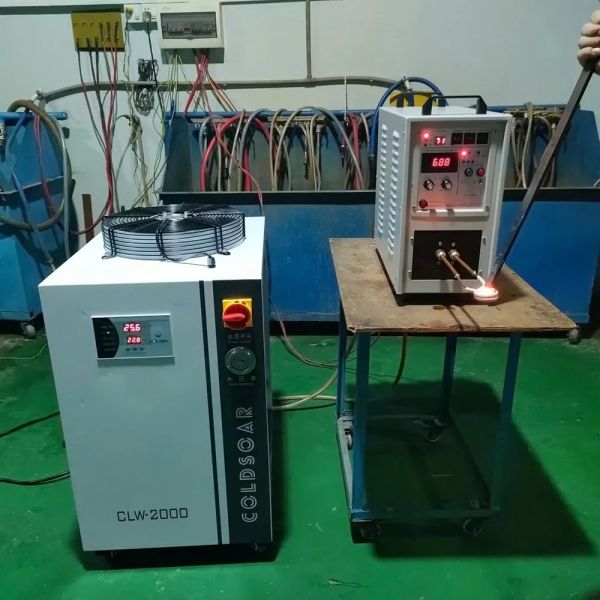

IGBT Induction Heating Machine High Frequency Induction Heater with 3*380V/415V/440V/480V 340-430V AC and 1-99s Timing

Specifications

Certification :

CE, ISO, RoHS

MOQ :

Price :

Model NO. :

HF-25KW

Type :

Induction Heating Machine

Structure :

Vertical Type

Power :

25kw

Frequency :

30-80kHz

Work Power :

3*380V/415V/440V/480V 50-60Hz

Operating Voltage :

340-430V AC

Input Current :

25A

Timing Range :

1-99s

Water Temperature Protection :

40centidegree

Weight :

42kg

Size :

640*280*550mm

Output Power :

25KW

Cooling Water Flow :

0.15 Mpa 9L/Min

Duty Cycle :

100% (40degree room temperature)

Description

China Factory Best price of IGBT Induction heating machine for heating All kinds of tubes, bars and metal fittings
Induction Heating Machine:

Advantage:
1 More than ten years experience,stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type	HF-25AB/25A
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	25KW
Input current	25A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 9L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:42Kg
Size	Main Parts:640280550mm

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
