P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
P3 Led Outdoor Advertising Screens
Specifications
Brand Name :
XGC
Model Number :
P3
Certification :
CE ,FCC, ROSH CCC
Place of Origin :
Shenzhen,China
MOQ :
1PCS/㎡
Price :
USD900--USD1300 /pcs
Payment Terms :
T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
Supply Ability :
5000㎡ per month.
Delivery Time :
7-15 days
Packaging Details :
Plywood case、flight case
Product name :
LED advertising billboard
Display function :
Video,picture,message.
Warranty :
2~5 Years
Brightness :
6500CD/sqm
Led chip :
Epistar SMD1919,SMD1921
Application :
pole,video wall,hanging up ,standing installation
Color :
RGB
Power supply :
Meanwell,G-energy,Chuanglian
Description

HD outdoor waterproof double sides LED display P3 LED advertising billboard screen

FAQ

Q1, How to arrange payment?

Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Wechat,Alipay .

Q2, What kind of LED billboard you can do?

There is single double side LED billboard, we can product the front maintenance and back maintenance LED screen ,those products are suit for pole,truck ,taxi top etc.

Q3, How to be our distributor?

If you order Five hundred thousand products every year, you can be our distributor,and will offer the biggest discount.

Q4, How to maintenance led screen?

We will you some documents,tell you how to maintenance screen.

Q5, What kind of controller for outdoor moving LED billboard screen?

There is wifi-usb ,wifi-4G TB3 /TB6 LED controller for you,if you want to remote control screen ,you can choose the wifi-4G card.If you only want to use computer update content, MCTRL300/MCTRL600 is enough.

MCTRL300/MCTRL600/TB6 can work with video processor.

Technical Parameter for P3 OUTDOOR DOUBLE SIDES LED DISPLAY
Module Specifications
1 Pixel Pitch 3mm

2 Led Type SMD1921
3 Pixel configuration 1R1G1B
4 Module Size 192x192mm
5 Module Resolution 64x64pixels
6 LED Chip Epistar
7 LED brand Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1 Cabinet Size 960x960mm OR customized
2 Cabinet Resolution 320x320 pixels/side
3 Module Qty. 5x5pcs/side
4 Power Supply 5V40A 200W/ 5V60A 300W
6 Cabinet Materials iron
7 Power flight socket

1set
Screen Parameters
1 Pixel density 111111dots/㎡
2 Screen Resolution according to screen size
3 Cabinet Qty. according to screen size
4 Brightness ≥6500 CD/sqm
5 Refresh rate ≥1920Hz/s
6 Scanning Mode 1/16 scan
7 Viewing Angle H:140°;V:140°
8 Viewing Distance ≥3m
9 Gray Level 16 Bit
10 Power Input AC110~240V
11 Power Comsuption Max: 1000W/㎡ Average:300W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65/IP54
15 Operating Temperature -35℃~ 65℃
16 Storage Humidity 10℃~90℃RH
17 Control Syetem Colorlight/Nova/Linsn
18 Operating System Windows98/me/2000 /NT/XP
19 Power Supply 5V40A 200W/5V60A 300W
20 Maintance Access Back service/Front service
21 Video processor Novastar/ Colorlight /Linsn /VDWALL /RGBLINK /SYSTAR
22 Control mode computer /USB/WIFI/4G

HS code: 8528591090

Regular plywood case package.

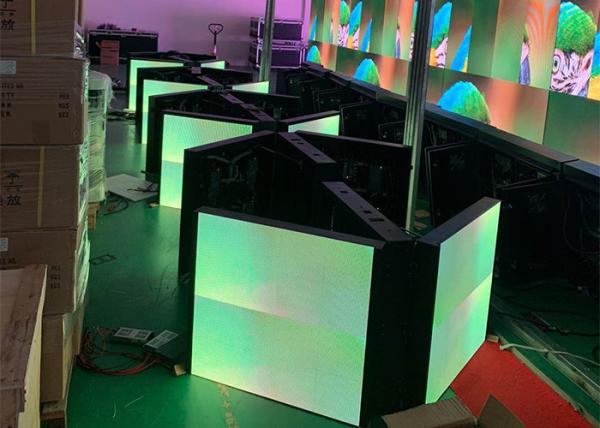

LED cabinet viewing:

P3 Led Outdoor Advertising Screens

P3 Led Outdoor Advertising Screens

Computer control mode connection diagram:

P3 Led Outdoor Advertising Screens

Remote control mode(supports computer,smartphone/iPad/USB to update content.)

P3 Led Outdoor Advertising Screens
