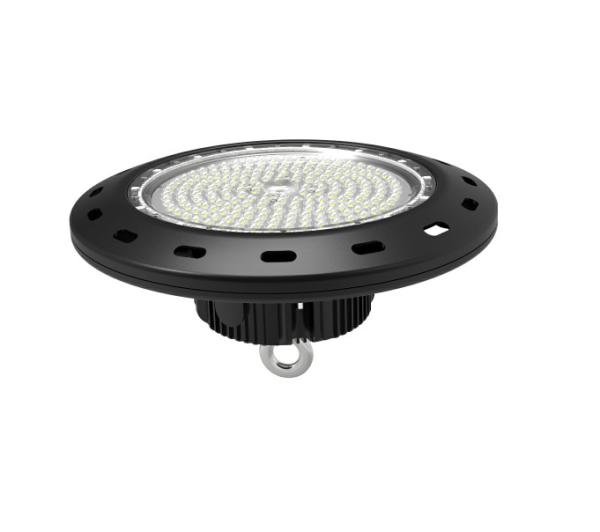

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz
Specifications
Brand Name :
JINLIN
Model Number :
JL-UFO-240W
Certification :
CE,RoHS
Place of Origin :
Shenzhen China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10,000pcs/month
Delivery Time :
sample order 3-5days
Packaging Details :
1pcs/carton
Power :
240W
Light source :
LED
Input voltage :
AC85-265V
Efficiency :
140lm/w
Lumen :
33600±5%
Beam angle :
60°/90°/120°
Material :
Aluminum
Color temperature :
2500-6500k
LED Type :
SMD3030
CRI :
>80
Size :
Φ400*204mm
PF :
>0.9
IP Rating :
IP65
working temperature :
－20℃～＋50℃
Warranty :
3years
Application :
WAREHOUSE, Indoor/Outdoor
Description

100W 150W 200W 240W UFO highbay industrial warehouse high bay light IP65 UFO led high bay

Product description

Model No. JL-UFO-100W JL-UFO-150W JL-UFO-200W JL-UFO-240W
Input voltage AC85-265V 50/60Hz AC85-265V 50/60Hz AC85-265V 50/60Hz AC85-265V 50/60Hz
Power 100W 150W 200W 240W
LED Type SMD3030 SMD3030 SMD3030 SMD3030
IP Rating IP65 IP65 IP65 IP65
Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Total Lumen 14000lm±10% 21000lm±10% 28000lm±10% 36000lm±10%
Color temperature 2500~6500K 2500~6500K 2500~6500K 2500~6500K
CRI >70 >70 >70 >70
PF >0.95 >0.95 >0.95 >0.95
Size Φ290*171mm Φ340*180mm Φ400*193mm Φ400*204mm
Beam angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°
Working temperature －20℃～＋50℃ －20℃～＋50℃ －20℃～＋50℃ －20℃～＋50℃
Material Aluminum Aluminum Aluminum Aluminum
Net weight 2.4kg 3.2kg 3.9kg 4.8kg
Packing 1pcs/carton 1pcs/carton

1pcs/carton

 1pcs/carton

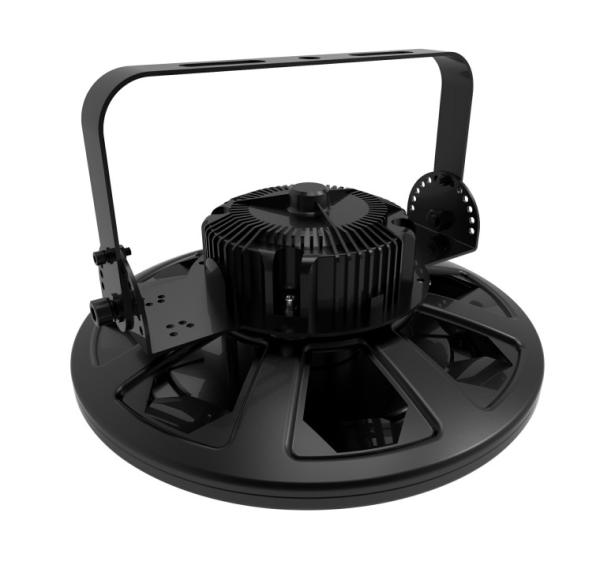

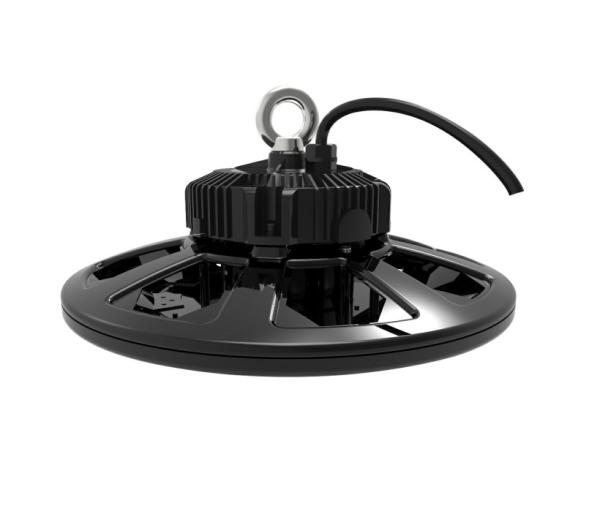

Install hook or bracket holders hook or bracket holders hook or bracket holders hook or bracket holders
Warranty 3 years 3 years 3 years 3 years


4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

Product Size

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

Item NO. JL-UFO-100W JL-UFO-150W JL-UFO-200W JL-UFO-240W
Size 290*171mm 340*180mm 400*193mm 400*204mm

Installation

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz

Packaging

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz



Application

4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz




Company Information

About us:

Shenzhen Jinlin Semiconductor Lighting Limited founded in 2009, located in Shenzhen where is the base of LED lighting industry in China. a high-tech enterprise with Research, , Manufacture, Marketing and Service. We have an R&D department with excellent engineers who research and develop the LED light and LED driver power. We are one of the pioneer of indoor -lighting exploration , focus on improving LED indoor lighting technology. Leading the development trend of LED light . We are professional ,because of focusing the target, Our task is that create low-carbon and energy-saving LED lighting products, we'll be keep exploring, improving and perfecting, Specializing in LED Tube light, Bulb light, Corn light, Flood Light, UFO Highbay etc. Products are RoHS CE PSE FCC TUV UL approved. LED down light, LED bulb and LED tube have got some patents of appearance and new technology from nation.
4 . 8Kg Industrial LED Lighting With Hook / Bracket Holders 50 / 60Hz


Our services

  • Your inquiry will be promptly replied in 12 hours
  • With high quality, all products are 48 hrs aging test
  • OEM&ODM available.any your customized lightings we can help you to design and put into product
  • 3 years warranty
  • Any defective products within warranty will get maintenance or replacement unconditionally
