Specifications
Brand Name :
MPLED
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1
Price :
USD+636-763+pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case/ wooden case/ carton/ it is up to you
Product name :
led display screen
Product :
advertising screen
name :
outdoor led display
the name or description of a commodity :
led display panels
Brand naming :
digital display
Name of commodity :
advertising display
Description

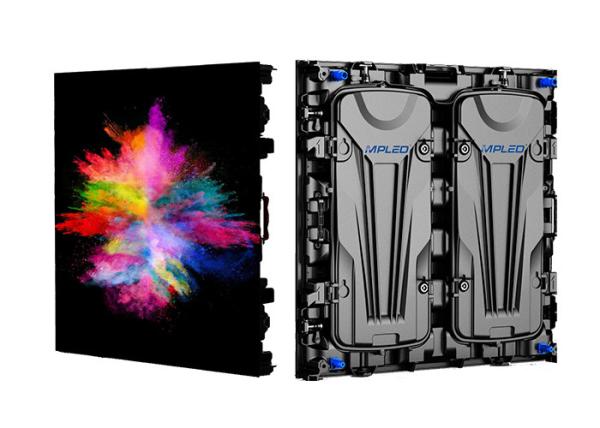

waterproof high brightness single pillar type P8 giant outdoor led screens

Product description

1. Common-cathode engery saving tech work with energy saving dring IC,it can effectively save energy by more than 40%,in the process of long-term use, it will save cost a lot.

2. Easy to install, fast lock in only 20 seconds, CNC high-precision processing, high-precision seamless splicing

3. Including power supply, boards, cables, modules, and at the same time meet the front and rear maintenance

4. Fanless design prevents dust and water vapor from being brought into the cabinet

5. The most advanced automated production equipment and professional team, selection of first-class raw materials, strict raw materials and process control

6. IP65/IP54 high protection level, adapt to various harsh environments

Pixel Pitch 8mm
LED Lamp SMD3535
LED configuration SMD 3 in 1
Module Size 320mm x 160mm
Module pixels 40x20dots
Cabinet Size(WxHxD)(mm) 960x960x101mm
Module Quantity(pcs) 18
Pixel Density 120x120dots
Cabinet pixels 14400 dots
Cabinet Material Magnesium alloy
Cabinet Weight (kg) 29
Average Power/sqm (watts) 240
Max Power/sqm(watts) 800
Brightness 6500cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 8-100 meters
Brightness Control 256 level
Gray scale 14 bit
Refresh frequency 1920hertz
Driving mode 1/5 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP65
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.

Outdoor P10 P8 P6 LED Advertising Screen 6500cd/M2 Brightness Single Pillar TypeOutdoor P10 P8 P6 LED Advertising Screen 6500cd/M2 Brightness Single Pillar Type

FAQ

Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.

Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.

Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...

Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.

Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q6: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea

2018, MPLED P10 outdoor led display light up in The World Cup in Russia

2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia

2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino

2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL

2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
