Specifications
Brand Name :
JuCaiYuan
Model Number :
p5 p6 p8 P10
Certification :
CE/ROHS/FCC
Place of Origin :
Shenzhen,China
MOQ :
1 Square meter
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sqm per month
Delivery Time :
3-25 working days after finished the payment
Packaging Details :
Strong Carton Box, Standard Wood Case, Flight Case etc
product :
Transparent P10 mm LED Display
Brightness :
Over 5000nits
Warranty :
2 Years
Application :
Indoor
Technology :
Frontage-lighting
Screen Dimension :
Customized
Material :
Acrylic Frame Rental Led Wall
High Light :
transparent led curtain display, glass wall led display
Description
Overview
Quick Details
Application:
outdoor, Adervertising
Color:
full-color, RGB 3in1 Tri Color
Panel Size:
320*160mm
Pixel Pitch:
8mm
Place of Origin:
China
Model Number:
P8
Brand Name:
jucaiyuan
Product name:
P10 Outdoor Led Display
Warranty:
2 Years
Certificate:
ROHS
Module size:
320*160mm
Life span:
100000hours
Refresh rate:
1920Hz-3840Hz
LED chip:
Epistar
Cabinet size:
960x960mm
Supply Ability
Supply Ability
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton case/wooden case
Port
shenzhen,shanghai,qingdao,ningbo

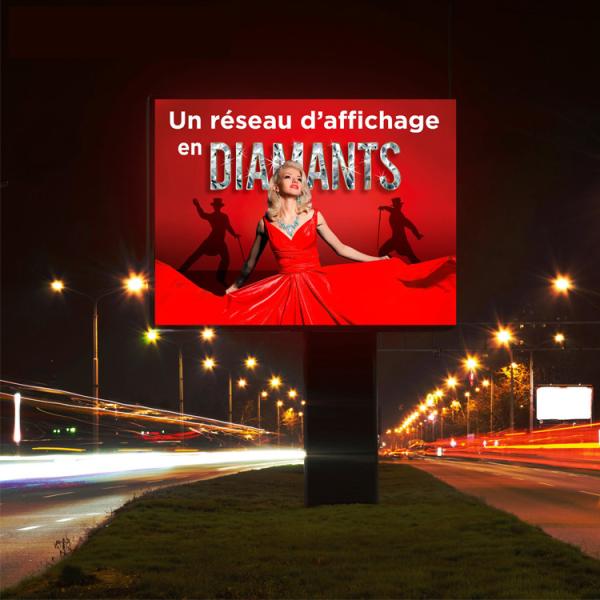

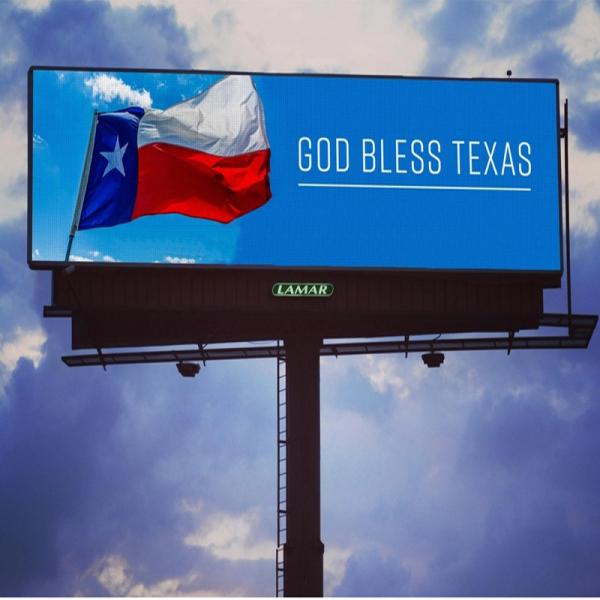

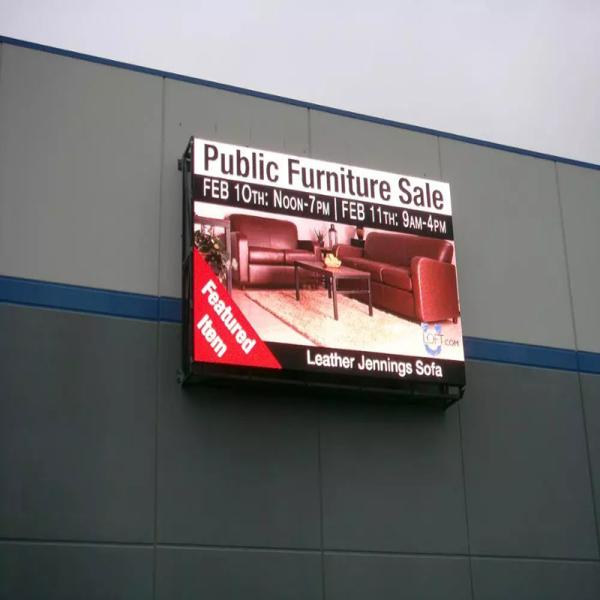

Picture Example:
Lead Time:
Quantity(Square Meters) 1 - 100 101 - 200 >200
Est. Time(days) 15 30 To be negotiated
Product Description

Outdoor RGB P5 P8 P10 cheap outdoor led wall display long distance advertising panel screen p8 outdoor led display

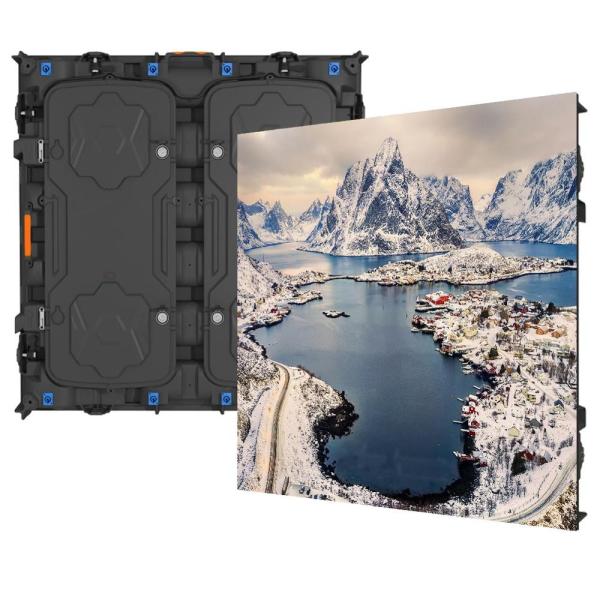

Cabinet Feature:

Technical Data

Outdoor P10 2scan Specs.
LED Configuration SMD3535
Pixel Pitch(mm) 10
Module Resolution(W×H) 32*16
Module Dimension(mm) 320(W)×160(H)
Module weight(kg) 0.42
Module Max Power Consumption(W) ≤48
Modules per Cabinet (W×H) 3*6
Cabinet Resolution(W×H) 96*96
Cabinet Dimension(mm) 960(W)×960(H)×85(D)
Cabinet Area(m2) 0.93
Cabinet Weight(kg) 15
Cabinet Pixel Density(dots/m2) 10000
Single Dot Brightness Correction NO
Single Dot Chroma Correction NO
White Balance Brightness(nits) ≥7000-8500
Color Temperature(K) 4500 Adjustable
View Angle(H/V°) 120/90
Brightness/Color Uniformity ≥97%
Max(Average) Power Consumption(W/m2) 850(350)
Power Supply AC220V,Frequency 47-63(Hz)
Refresh Frequency(Hz) 50&60
Drive Mode Constant Current Drive, 2Scan
Gray Level 16384
Refresh rate(Hz) ≥1000
Color Processing Digit 16bit
Module power-off storage function Save brightness, chroma correction data, module parameters
Functions 2K HD,4K Ultra HD Videos
Lifespan(hrs) 100,000H
Operating Temperature/Humidity(℃/RH) -10 – 40 / 10%-80%RH

Installation method:

Field case

Packaging & Shipping
Packaging
Our products usually taking three kinds packaging. Carton, plywood case and flight case. Normally modules using carton. Fixed install cabinets using plywood case. Rental use cabinets using flight case.
Depends on customer’s choice.

Shipping
Shipping method: Ocean freight, air freight and express delivery.
Ocean freight: Big transport volume, cheap. Extending in all directions. But slow.
Air freight: Fast, efficient, safe and convenience. But expensive.
Express delivery: Fast, efficient, safe and convenience. But expensive.
Depends on customer’s choice.
