Key Attributes for LED Stadium Flood Light
Model No | XP-QC-JA200W | XP-QC-JA400W | XP-QC-JA600W | XP-QC-JA800W | XP-QC-JA100W |
Power | 200W | 400w | 600W | 800W | 1000W |

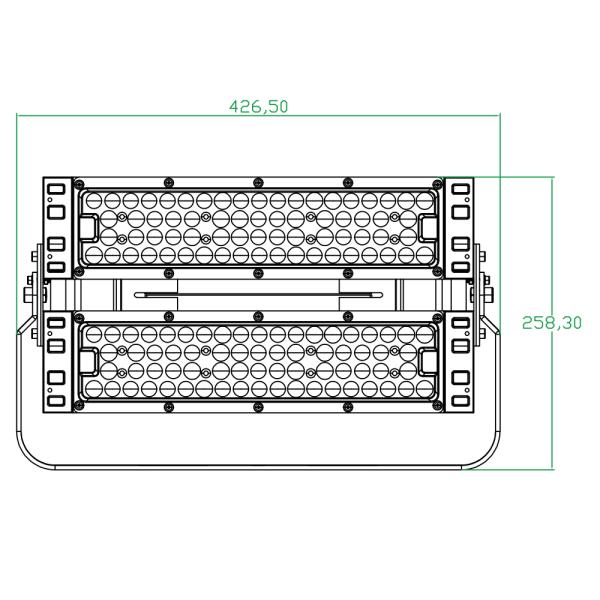

Product Size(mm) | 402*155*105 | 426*258*105
| 426*376*105
| 426*494*105
| 426*612*105
|
Luminous Flux | 36000LM | 72000LM | 108000LM | 144000LM | 180000LM |
Input Voltage | AC100-277/220-240V 50/60Hz | ||||
Light effect | 150-180LM/W | ||||
Color temperature | 2700-6500K | ||||
Color rendering index | CRI>80 | ||||
Color Tolerance adjustment | ≤6SDCM
| ||||
Power Factor | >0.97 | ||||
Beam Angle | 45° / 90°
| ||||
Efficiency | ≥95%
| ||||
Working Temperature | -40℃— +50℃
| ||||
Life | 50000H | ||||
IK/IP Protection level | IK08/IP65 | ||||
Insulation grade | Class I | ||||
Surge protection | 6KV | ||||
Control protocol(s) | 0-10V/PWM/Rx/Dali2.0 | ||||
Driver | LiFud/MeanWell/Philips | ||||
Warranty | 5 years | ||||
Certification | CE SAA PSE |
Features:
1. character and application
Product installation is convenient and simple. The product is made of aluminum alloy, which makes the product strong and durable, and the power source has good heat dissipation. It effectively prolongs the service life of the product. This lamp is suitable for installation at a height of 5-15m.
2. Light source characteristics.
Adopt domestic famous brand SMD2835/3030/7070 light source, Which has high brightness, small light attenuation and longer service life.
3. Power supply characteristics
Adopt high-stability isolated constant current power supply scheme, it has the characteristics of over-temperature protection, wide voltage range, high power factor, high efficiency and good heat dissipation effect.
4. Heat sink feature
Adopt high-purity aluminum radiator with high thermal conductivity. The aluminum radiator is specially designed, which increases the radiating area, enhances the heat exchange efficiency of cold and hot air, which can reduces the temperature of the light source and ensures the stability of the product function, and has a longer service life.
product application
It is suitable for Garden, Factory, Overpass, Sidewaik, Square, School, Residential district, Industrial area, Park..
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products,
we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
