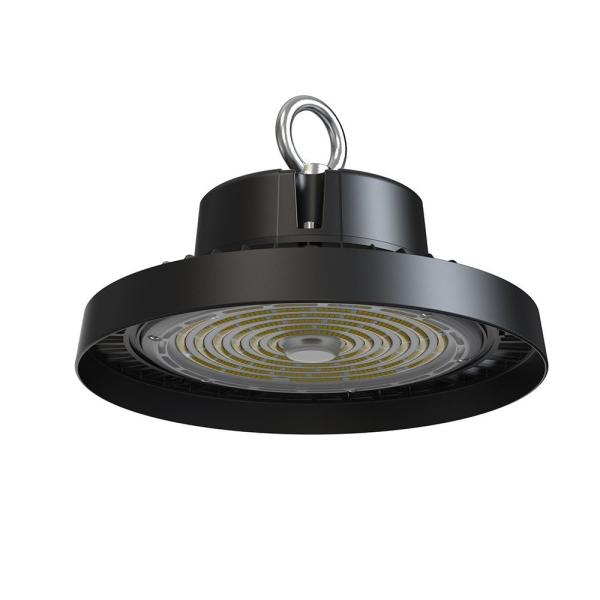

Fast Delivery 3 power CCT Adjustable 150W Commercial Garage Lamp Motion Sensor Dimmable Warehouse UFO High Bay Light
Specification:
Model No | XP-UFO-JY-100W | XP-UFO-JY-150W | XP-UFO-JY-200W | XP-UFO-JY-300W | XP-UFO-JY-400W | XP-UFO-JY-500W |
Power | 100W | 150W | 200W | 300W | 400W | 500W |
Product Size | Φ238mm * 155mm
| Φ255*H173
| Φ300mm * 196mm
| Φ385mm * 192mm
| Φ385mm * 192mm
| Φ490mm * 240mm
|
Lighting effect | 150-200LM/W | |||||
PF | >0.9 | |||||
Driver Efficiency | >95% | |||||
Beam Angle | 60°/*90°/120° | |||||
Operating Temperature | -22℉to 104℉(-30°to+50℃) | |||||
Color Temperature | 3000K/4000K/5000K/5700K | |||||
Ra | Ra>70/80/90 | |||||
IP Rating | IP65 | |||||
IK Level | IK08 | |||||
Insulation grade | Class I | |||||
Surge protection | 6KV | |||||
Material | AL+PC(Glass) | |||||
Control protocol(s) | 0-10V/PWM/Rx/Dali2.0 | |||||
Sensor | Motion Sensor | |||||
Emergency | Optional auxiliary battery | |||||
Certification | CE/RoHS/ ETL/cETL/DLC |
1. character and application
Product installation is convenient and simple. The product is made of aluminum
alloy, which makes the product strong and durable, and the power source has good
heat dissipation. It effectively prolongs the service life of the product. This lamp is
suitable for installation at a height of 8-15m.
2. Light source characteristics
3. Power supply characteristics
Adopt high-stability isolated constant current power supply scheme, i
Adopt domestic famous brand SMD2835/3030/5050/7070 light source,
which has high brightness, small light attenuation and longer service life. the characteristics of over-temperature protection, wide voltage range,
high power factor, high efficiency and good heat dissipation effect.

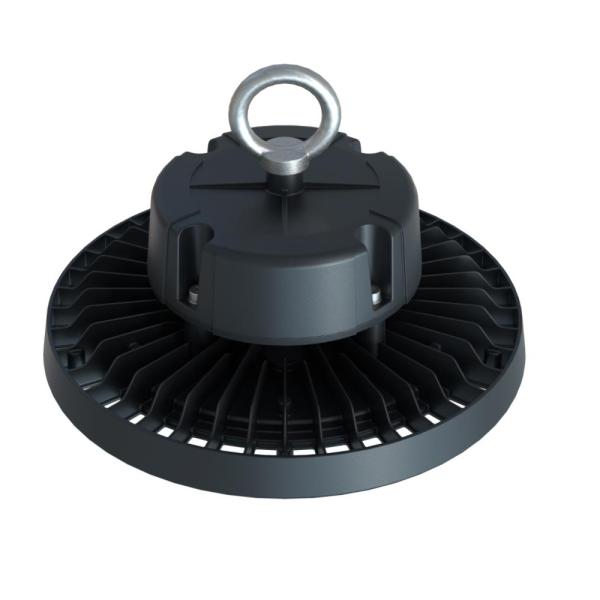

4. Heat sink feature
Adopt high-purity aluminum radiator with high thermal conductivity.
The aluminum radiator is specially designed, which increases the radiating
area, enhances the heat exchange efficiency of cold and hot air, which can
reduces the temperature of the light source and ensures the stability of the
product function, and has a longer service life.
5.Installs Way
Hoisting
6. product application
It is suitable for supermarkets, large workshops, steel mills, warehouses,
highway toll stations, gas stations, large supermarkets, exhibition halls,
gymnasiums, bus waiting rooms, railway station waiting rooms and other places
requiring high space lighting.
FAQ:
Q1. CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR LED LIGHT ORDER?
A: Low MOQ, 1pc for sample checking is available
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPs, FedEx or TNT. it usually takes 3-5 days to arrive. Airine and sea shipping also optional
Q5. HOW TO PROCEED AN ORDER FOR LED LIGHT?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. ls it OK TO PRINT MY LOGO ON LED LIGHT PRODUCT?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: DO YOU OFFER GUARANTEE FOR THE PRODUCTS?
A: Yes, we offer 3/5 years warranty to our products.
Q8: HOW TO DEAL WITH THE FAULTY?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution.
