Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Specifications
Brand Name :
Razor Welde Wire Mesh
Model Number :
75mmx150mm
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
16.66$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Carbon Steel Or Stainless Steel
Blade Length :
Blade Length: 22/30/60mm
Square :
50X50mm,100x100mm, 50X100mm Etc
Rhombus Hole :
50X100mm/75X150m/150X300mm
Height :
1.2/1.5/1.8/2.1/2.4m
Width :
2.5m / 3.0m / 6.0m Etc
Description

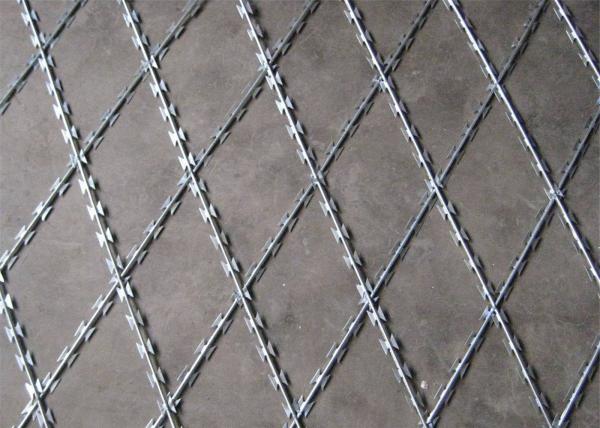

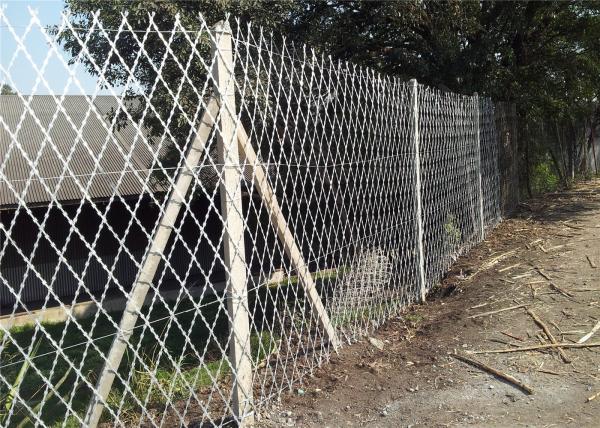

The razor mesh fence is a new type of safety fence welded by straight type razor wire. It is usually welded into a square or diamond shape. This kind of razor wire fence is impossible to climb and cut because it has sharp barbs and strong wire. The typical feature of razor mesh fence is that it’s a complete security fence requiring no additional top options when installed.
High tensile core wires are welded in a diamond shape or square shape with razor blades, acting as additional deterrent or means on entrapment. This creates an effective barrier which is not just impossible to climb, but resistant to cutting as well.
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
welded razor wire mesh
Specification:
  • Core Wire: 2.50±0.05 mm high tensile galvanized wire or stainless steel wire
  • Razor Strip (sheet): 0.50±0.05 mm galvanized sheet strip razor or stainless steel sheet trip
  • Square Razor Mesh Size: 50 × 150 mm,75 × 150 mm,100×150 mm
  • Diamond Razor Mesh Size: 75 × 150 mm,150 × 300 mm.
  • Panel Size: 1.2 m × 6 m, 1.8 m × 6 m, 2.1 m × 6 m, 2.4 m × 6 m.
  • Standard Blade Type: BTO-22, BTO-30.
Feature:
  • Extremely hard to cut with standard tools.
  • Galvanized steel, stainless steel, and PVC coated with custom colors are available.
  • Nearly impossible to climb.
  • Away from the need for fence topping when installed.
Razorwire Specs – Stainless Steel 304
RAZORWIRE DIAMETER
730MM
500MM
LENGTH EXT
10M
10M
RAZOR WIRE DESIGN
CONCERTINA
CONCERTINA
MATERIAL
STAINLESS STEEL 304
STAINLESS STEEL 304
BLADE STYLE
BTO 22
BTO 22
BLADE THICKNESS
0.5MM
0.5MM
WIRE DIAM
2.5MM
2.5MM
BARB LENGTH
22MM
22MM
BARB WIDTH
15MM
15MM
BARB SPACING
34MM
34MM
LOOPS PER COIL
54/55
54/55
CLIPS PER LOOP
5
3
Razorwire Specs – Galvanised Steel 200g/m2
RAZORWIRE DIAMETER
900MM
730MM
450MM
LENGTH EXT
10M
10M
10M
RAZOR WIRE DESIGN
CONCERTINA
CONCERTINA
CONCERTINA
MATERIAL
GALVANISED 200G/M2
GALVANISED 200G/M2
GALVANISED 200G/M2
BLADE STYLE
CBT65
CBT65
CBT65
BLADE THICKNESS
0.6MM
0.6MM
0.6MM
WIRE DIAM
2.5MM
2.5MM
2.5MM
BARB LENGTH
65MM
65MM
65MM
BARB WIDTH
21MM
21MM
21MM
BARB SPACING
100MM
100MM
100MM
LOOPS PER COIL
54/55
54/55
54/55
CLIPS PER LOOP
5
5
3
Choosing your Razor wire
The bigger the diameter the more of an obstacle and deterrent the Razor wire is. 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 730mm or even 900mm diameter will require specially made brackets for the installation.
If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razorwire or alternatively stack smaller diameter Razorwire on top of each other either vertically or in a pyramid fashion.
Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
Points to note when selecting Razor Wire
  • The core wire diameter:
    2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
  • The number of loops per coil
    This determines the amount of Razorwire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razorwire.
  • Stainless Steel or Galvanised?
    The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is considerably more expensive but offers greater durability especially in salt air environments and over time will outlast Galvanised therefore making it the best long term option in salt air. However Galvanised is more than adequate for most UK regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
  • Blade type
    Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent, larger blade profiles such as CBT65 (65mm) are much more effective but the blade type will also be reflected in the price.
  • Blade thickness
    0.5mm is the industry standard, anything less is likely to bend easily.

Welded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mmWelded Razor Mesh Fence Panels 1.2m x 2.5m mesh 75mm x 150mm blade length 60mm
