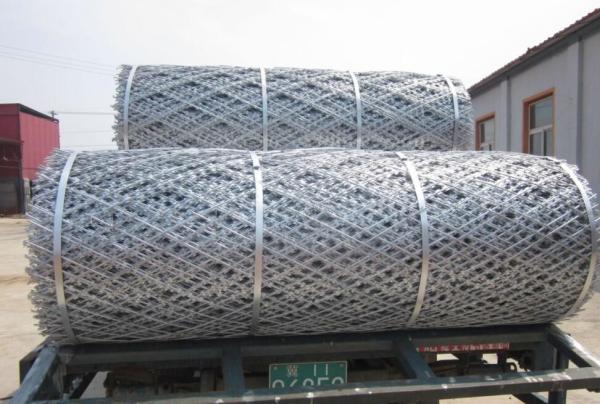

Weld Razor Wire Mesh BTO22 75mmx150mm
Weld Razor Wire Mesh BTO22 75mmx150mm
Weld Razor Wire Mesh BTO22 75mmx150mm
Weld Razor Wire Mesh BTO22 75mmx150mm
Specifications
Brand Name :
Razor Welde Wire Mesh
Model Number :
75mmx150mm
Certification :
ISO9001,CE
Place of Origin :
American Design
MOQ :
50pcs
Price :
16.66$/ pcs
Payment Terms :
T/T, Western Union, MoneyGram, Western Union
Supply Ability :
2000pcs per week
Delivery Time :
15 days
Packaging Details :
pallet
Type :
Trellis & Gates,Welded Mesh,Electric Wire Mesh
Feature :
High Security
Frame finishing :
Powder Coated
Frame material :
Metal
Metal type :
150mmx75mm
Pressure treated wood type :
Heat Treated,Nature,Chemical
Color :
white
Material :
Galvanized Iron Wire,Low Carbon Steel Wire,Low-Carbon Iron Wire,stainless steel wire
Product name :
Welded Wire Mesh Fence
Surface treatment :
Galvanized+PVC Coated,powder coated,hoe dipped galvanized,hot-dipped galvanized
Application :
Residential,Construction Wire Mesh,Fence Mesh
Wire diameter :
3.0-6.0mm,5mm,4mm,3.5mm etc
Mesh size :
50*200mm,55x150mm,50X200 55X200 50X100 75X150MM,55 X 100mm,200mm x 50mm
Hole shape :
Square,rectangle
Wire gauge :
3.0mm 4.0mm 5.0mm 6.0mm,1-4mm,2.5-4.5mm
Usage :
Protection,building,School,Garden
Post :
peach post,various gauge and shape.,60 x 60 X 1.6mm
Name :
wire fence,Triangle Bends metal wire mesh Fence,welded wire mesh,High strength horse fence,Australia Temporary Fence
Description

BTO-22

Core wire :2.5±0.05mm

Blade :0.5±0.05mm

Mesh :150x75 mm

Panel Size :955×2500mm

Hot dipped GI : 275gsm (min.)

SPECIFICATIONS DESCRIPTIONS

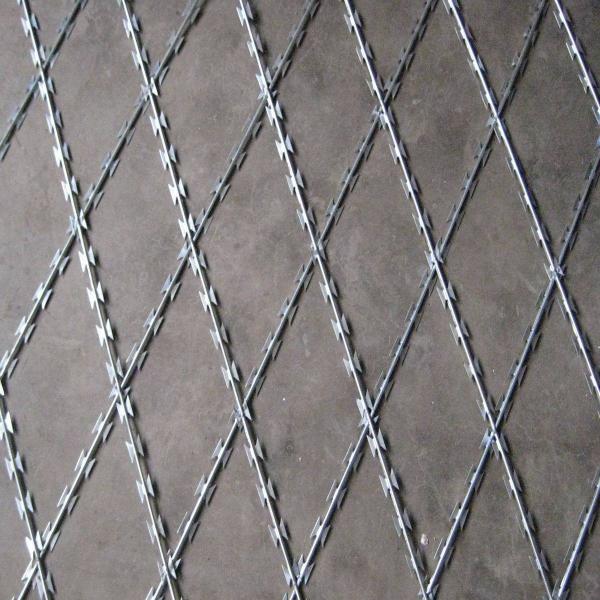

(A) Razor Weld mesh panel The Razor Weld Mesh panel would be made with Medium Blade Profile Razor Tape
Core Wire Horizontal wire, Dia 2.5mm (+/- 0.05mm) ; min 0.5mm (+/-0.05) thick tape
Razor Tape min 0.5mm (+/-0.05) thick tape
Mesh Size Mesh Size of 75 X 150mm with mesh opening pf diamond/rhombus shape
Panel size 2500 x 955mm
Metallic Coating Core wire : 2.5 (+/-0.05)mm Hot dipped GI (min 275 gsm); Razor Strip sheet: 0.5 (+/-0.05)mm Hot dipped GI (min 275 gsm)
Note Three panels to be used to get a vertical height of 2700mm
(B) Concertina coil 1050 mm Dia / 56 turns/ 2.5 mm core wire.
Coil Diameter 1050 mm
Type of Strip Hot Dipped GI (min 275 gsm)
Type of Core wire Hot Dipped GI (min 275 gsm)
Core wire Diameter Min 2.5 mm
Material Hot Dipped GI (min 275 gsm)
Weight 15.2 ± 5%
Number of turns 56.
Length when stretched 10-12 m
Blade profile Tear Blade
(C) Fence Post
Type Circular Hollow
Material MS steel Tube (IS 1161).
Dimensions 76mm Dia, 3.2 mm ( +/- 10%) Thickness.
Length 3345mm (+/- 5%) (2745 mm above ground level + 600 mm under the ground level).
Powder Coating Hot Dip galvanized to minimum 350 GSM as per IS 2629/ IS 4759/ASTM A 123
Holes Suitable holes of proper size to match the mounting of the clamps to be provided

(D) Clamps

 To tighten the mesh panel along the post with GI strip 50 x 5 x 2700mm with 9 holes will be provided.Along with the clamp 9no of Mushroom Head Bolt (M8X120) with breakable head safety nut and washer (Material: SS 304, OD : 15.89mm, ID : 8.38mm, thickness ; 2.04mm.) will be provided.
Coating Hot dip galvanized
(E) Y-Arm
Material MS Angle Size: 50x50x5 mm.
Length 750 mm of one arm.
Coating Hot dip galvanized to 350 GSM Hot Dip Galvanizing as per IS 2629 / IS 4759 /ASTM A 123
Outer diameter 63 mm of sleeve cap, Bolted on the top of the fence post. Straining post will be installed at every 30 meters.
Accessories for fitting Y Arm Mushroom Head Bolt with breakable head safety nut (M8X120) (2 Nos per post)
Material MS, IS 2062, galvanized
(F) Razor Blade Tape
Material Hot Dipped GI (min 275 gsm)
Core wire Diameter 2.6 ± 0.035 mm Dia.
Blade profile MBBT
(G) Anchor Rod 10 mm dia 300 mm long GI Rod tie with fence post at bottom using tie wire. (01 nos for each post)

Sl.no RAZOR WELD MESH UOM QTY
1 Razor Weld Mesh Panel with Accessories NOS 3
2 clamps NOS AS REQUIRED
3 Mushroom Head Bolt Nut with Washer For fitting Razor panels NOS AS REQUIRED
4 Fence Post NOS AS REQUIRED
5 Y- Arm NOS 1 PER POST
6

Accessories for fitting Y Arm: Mushroom Head Bolt with breakable

head

 NOS

AS REQUIRED
9 Punched Tape Concertina Coil COIL AS REQUIRED
10 Razor Blade Tape RIM AS REQUIRED
11 Anchor Rod NOS 1 PER POST

Weld Razor Wire Mesh BTO22 75mmx150mmWeld Razor Wire Mesh BTO22 75mmx150mm

(H) Tear Blade profile

Tear Blade Thickness Minimum Thickness of 0.5mm

E F

Blade Length Minimum 22mm

Material Hot Dipped GI (min 275 gsm)
