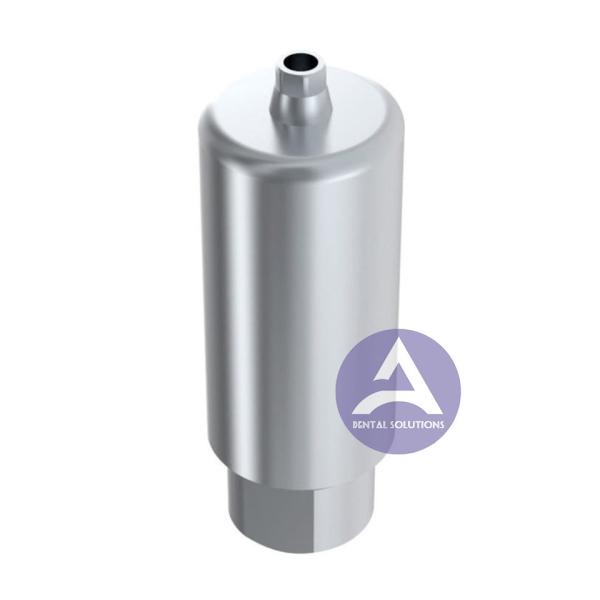

NOBEL BIOCARE Active® Implant Internal Titanium Pre Milled Abutment 10mm 3.0mm/ NP(3.5mm)/ RP(4.3/5.0mm)/ WP(5.5mm)

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of NobelActive™ Implant:

NobelActive™ implants (Fig.1) have a surface treatment from the apex of the implant to the edge of the implant/abutment interface. The slightly tapered body geometry is machined with progressively deeper threads towards the apical and a secondary groove at the edge of the more coronal threads. A faint table (0.25mm) between the actual implant/abutment interface and the outer edge of the implant may be unused to function as a platform switching feature or seating surface of prosthetic components, depending on the type of final restoration. Implants are machined with a internal hexagon functioning as the indexing feature. Four implant body diameters of 3.0, 3.5, 4.3 and 4.9mm in six lengths (8.5, 10, 11.5, 13, 15, 18) are offered in this product group. 3.0mm implants are not produced in lengths of 8.5 and 18mm. Although the implant manufacturers stated length is not the actual length of the implant. Each implant is 0.5mm shorter than advertised.

The indexing feature dimensions are implant body diameter appurtenant, meaning that the indexing feature (Fig.2) is machined differently in regards to the implant body diameter. 3.0mm diameter implants have a 2.5mm diameter indexing feature while 3.5 diameter implants have a 3mm diameter indexing feature. 4.3 and 4.9 diameter implants share the same indexing feature dimension of 3.4mm. Each indexing feature dimension is color coded for easy identification fuchsia (3.5mm body diameter) or yellow/blue (4.3 and 4.9mm body diameter). Although the color coding is only evident on the product packaging and the implants are packaged without cover screw.
